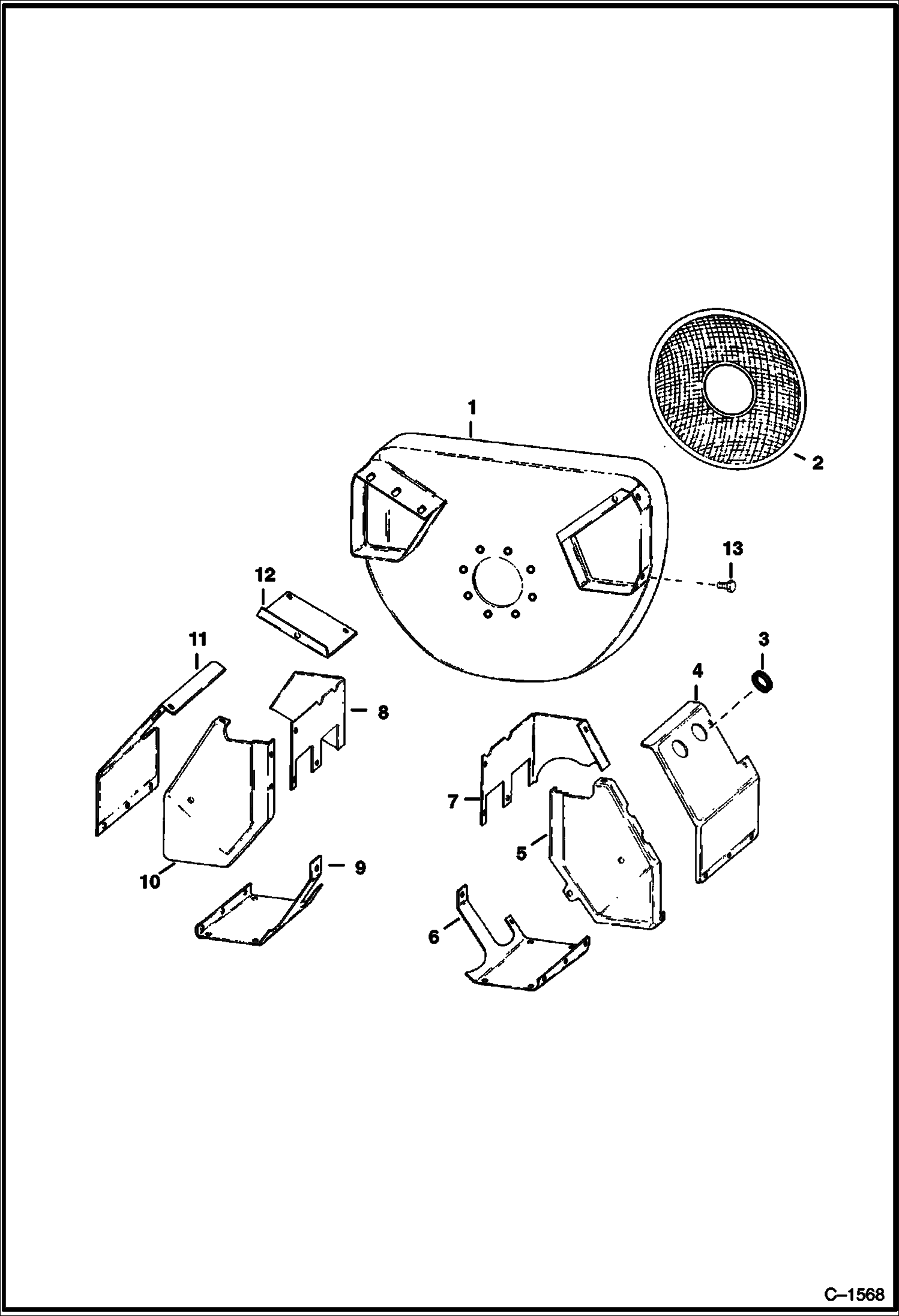

Запчасти Bobcat 700s ENGINE SHROUDING POWER UNIT

1

SHROUD NLA - flywheel - Was 6510091 - A

2

RING NLA

3

6516359

CAP

4

SHROUD NLA - cylinder - Was 6510867 - A

4

SHROUD NLA - cylinder - Was 6510864 - A

5

6516357

SHROUD Rear cover

6

SHROUD NLA - lower cylinder - Was 6510865 - A

7

SHROUD NLA - heat deflector - Was 6510866 - A

8

6516353

SHROUD heat deflector

9

6516354

SHROUD lower cylinder

10

6516352

SHROUD Rear cover

11

SHROUD NLA - cylinder head - Was 6510863 - A

12

6516371

SHROUD side cover

13

6516361

BOLT thin head
