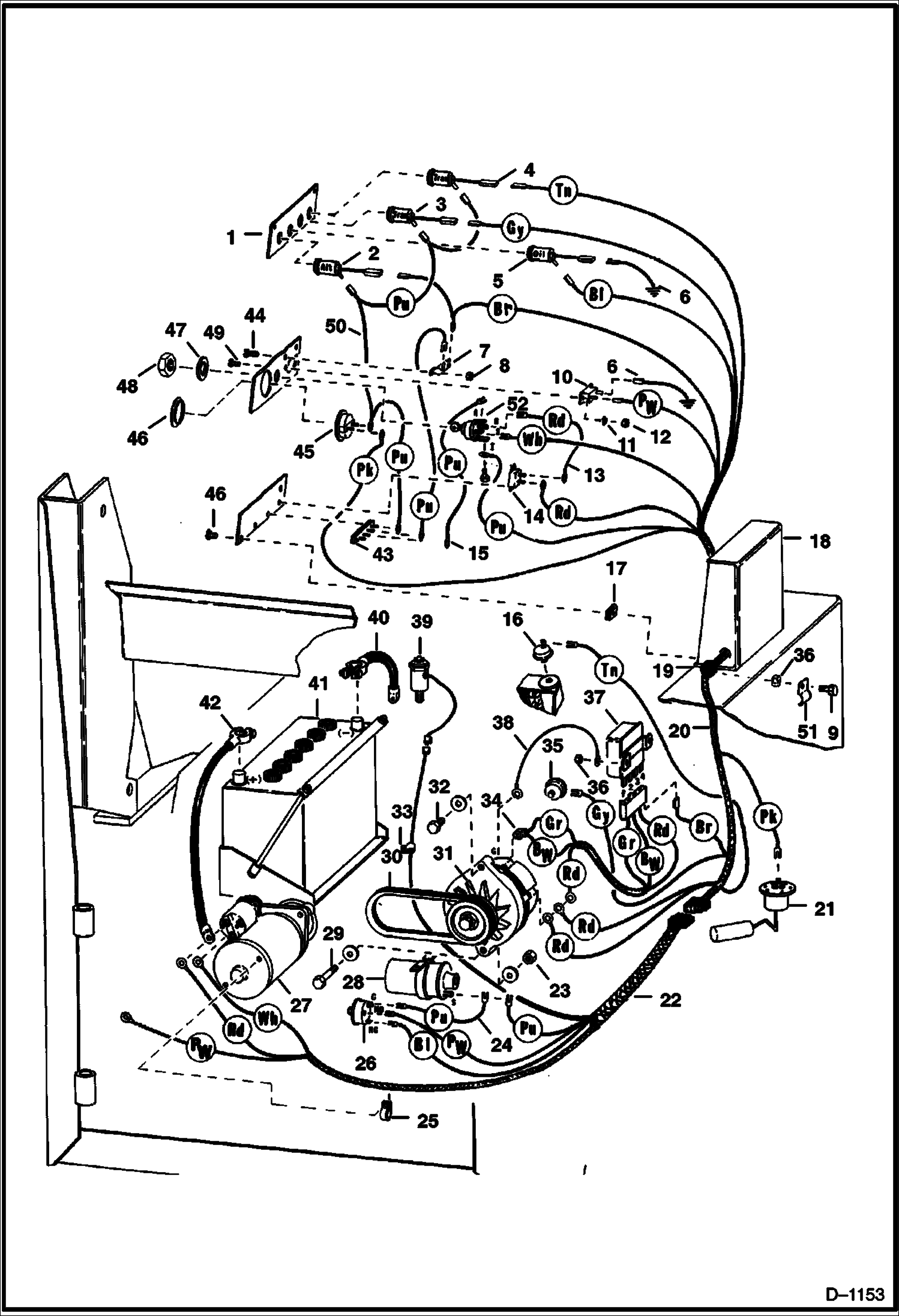

Запчасти Bobcat 700s ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6541570

PANEL instrument box

2

LIGHT alternator - Was 6518962 - A

3

LIGHT NLA - trans. oil pressure - Was 6518961 - A

4

LIGHT NLA - transmission temp - Was 6515525 - A

5

NLA - engine oil - Was 6515526 - A

6

WIRE NLA

7

556489

RES

8

12D10

NUT

9

SCREW NLA - Was 91G408 - A

10

6664886

HOURMETER Was 6631657 - A

11

12E6

WASHER Was 14E000006B - A

12

12D6

NUT 10

13

WIRE NLA

14

6519746

BREAKER circuit

15

WIRE NLA

16

6515476

SWITCH trans. temp.

17

1303869

NUT spring

18

6541569

BOX instrument

19

730630

GROMMET

20

6541906

HARNESS instrument panel

21

5204933

SENDERKIT fuel level

22

6555120

HARNESS engine

23

61D6

NUT 5

24

WIRE NLA

25

30H27

CLAMP insulated

26

6519242

SWITCH eng. oil

27

STARTER See Illustration STARTER/ A1379

28

887408

IGN COIL

29

BOLT NLA- carriage - Was 7C000648B - A

30

6541934

BELT

31

ALTERNATOR See Illustration ALTERNATOR/ B1102

32

17C516

BOLT

33

30H14

CLIP

34

6542738

HARNESS

35

6519334

SWITCH trans. oil pressure

36

61D4

NUT 5

37

6631722

REGULATOR Use Old Mounting Bracket - Was 6569477 - A

38

WIRE NLA

39

LOCK NLA - lock - LP - Was 6501945 - A

40

6553094

CABLE ground

41

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

41

6630152

CAP

42

6514504

CABLE positive

43

6519247

CONNECTOR connector

44

87G1008

SCREW

45

FUEL GAUGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

45

6669665

FUEL GUAGE W/O clamp

46

641282

PLUG LP

47

WASHER NLA - Was 9E9 - A

48

6502904

NUT

49

87G608

SCREW

50

WIRE NLA

51

5H7

CLIP

52

6519907

SWITCH ignition

52

6505412

KEY
