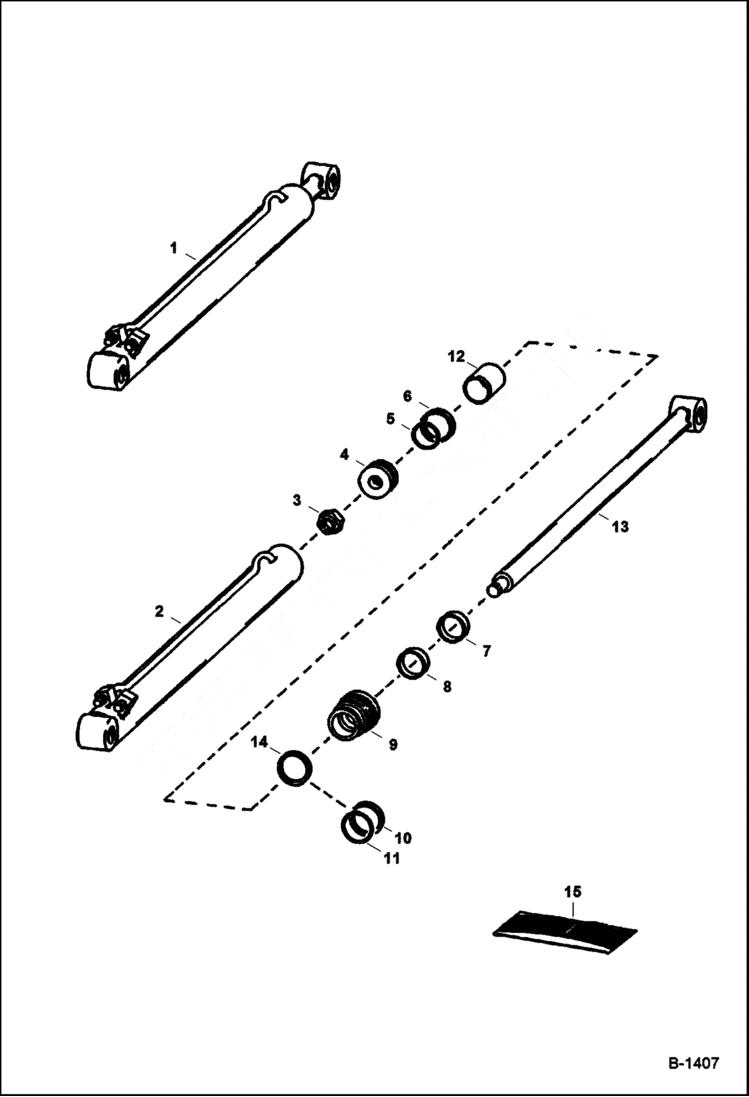

Запчасти Bobcat 700s LIFT CYLINDER HYDRAULIC SYSTEM

1

6540229

CYLINDER Ref. 2-13

2

CASE NLA - Was 6592037 - A

3

92D12

NUT Was 86D000012B - B

4

6558196

PISTON

5

54K30118

O-RING WAS 25K030118B - B

6

6516231

SEAL piston

7

6665208

SEAL wiper

8

6667324

SEAL rod - Was 6665184 - A

9

6539323

HEAD Was 6532702 - A

10

73K224

RING backup

11

54K40124

O-RING Was 25K040124B - B

12

6514501

SPACER

13

6540219

ROD

14

7008781

SEAL, QUAD

15

7137769

KIT, SEAL Ref. 3, 5-8, & 14 - Was 6803329 - A
