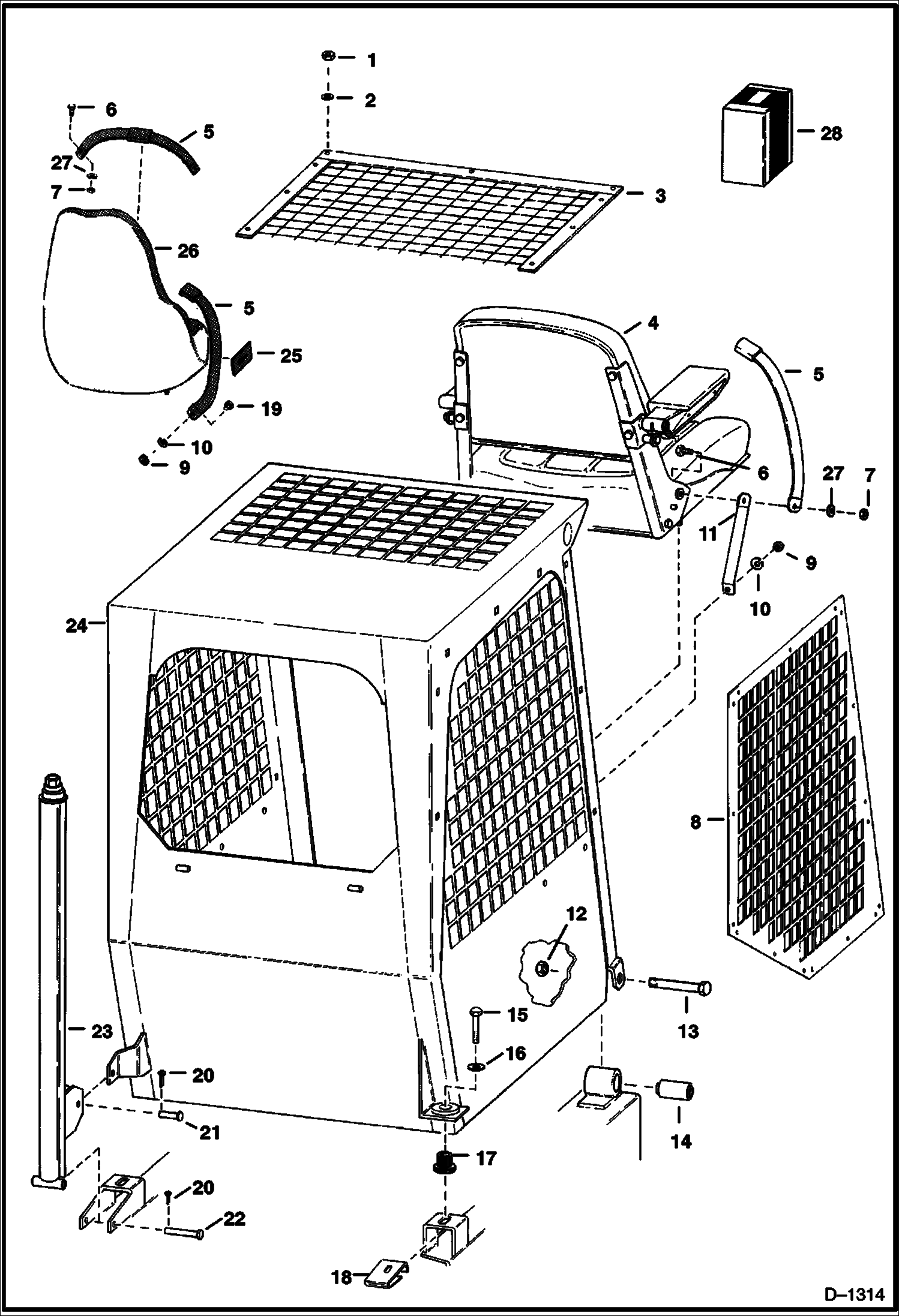

Запчасти Bobcat 700s OPERATOR CAB MAIN FRAME

1

81D6

NUT

2

25E17

WASHER 5

3

6555797

SCREEN

4

SEAT See Illustration SEAT/ B7184

5

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

6

17C716

BOLT

7

81D7

NUT

8

6552487

SCREEN side - Punched rpls. screen

8

6555798

SPACER Use W/6552487 Screen

9

61D6

NUT 5

10

4E6

WASHER

11

6552184

SEAT BELT

12

81D10

NUT

13

17C1072

BOLT

14

6519138

BUSHING

15

17C856

BOLT

16

6554106

WASHER

17

1680815

MOUNT rubber

18

6546223

FASTENER

19

17C616

BOLT 5

20

1318565

COTTER PIN

21

6514566

PIN

22

6514565

PIN

23

JACK NLA - lift - Was 6544710 - A

24

6552802

CAB

25

6551988

RETAINER belt

26

SEAT NLA - Order Ref. 4

26

CUSHION NLA - black - back - Was 6511032 - A

26

CUSHION seat NLA - seat - black - Was 6519475 - A

27

25E20

WASHER

28

KIT NLA - seat belt - Ref. 5 & 25 - Was 6552173B - A

28

KIT NLA - seat belt - Ref. 5, 6, 7, & 27 - Was 6552172 - A
