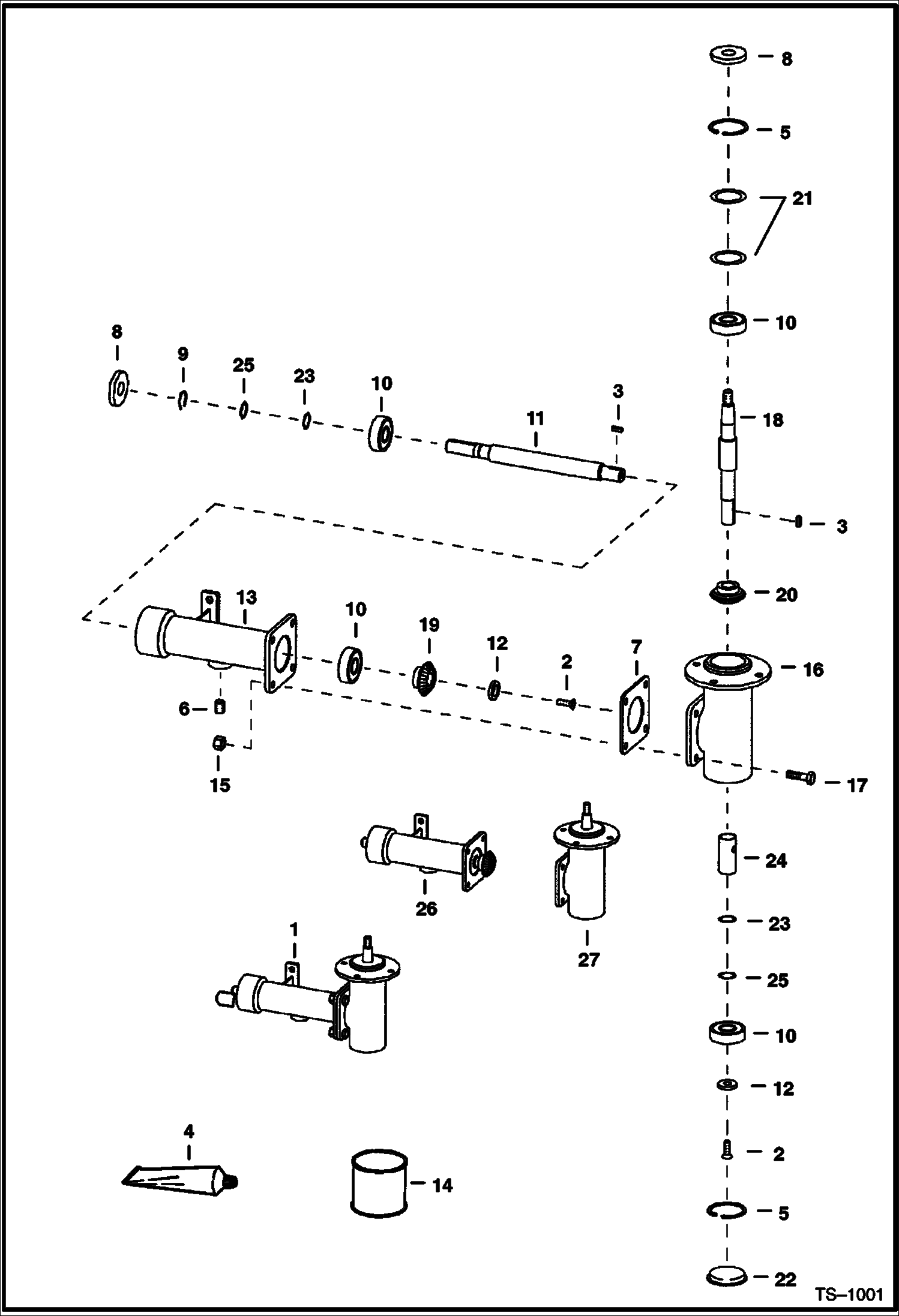

Запчасти Bobcat 600s COOLING FAN DRIVE ASSY. POWER UNIT

1

HOUSING ASSY. See Illustration COOLING FAN DRIVE ASSY./ PE2349 NLA - Ref. 2-22 - Order 6681891 Housing Assy. - Was 6708979 - A

1

6681890

HOUSING, FAN DRIVE ASSY Ref. 2-25

2

9G512

SCREW

3

7J2010

KEY

4

6672486

SEALANT Use W/Ref. 7 & 22 - Was 6633583 - A

5

6653758

SNAP RING

6

16F8

PLUG

7

6578284

SHIM .003'' (0,08 mm) thickness

8

6653702

SEAL, OIL

9

6653757

SNAP RING

10

6646627

BEARING

11

6707518

SHAFT keyed

12

WASHER NLA - Countersink - Was 6702140 - A

13

6579641

HOUSING

14

6903121

LUBE, GEAR 12 Was 6634393 - A

15

61D6

NUT 5 Was 95D000006B - B

16

HOUSING NSS - Order 6579717 Housing or Ref. 25

17

17C620

BOLT

18

6702136

SHAFT keyed

19

6702103

GEAR, PINION keyed

20

6702102

GEAR keyed

21

6702166

SHIM .0002'' (0,05mm) thickness - 2'' (50,8mm) OD

21

6702144

SHIM .005'' (0,13mm) thickness - 2'' (50,8mm) OD

22

6700782

CAP grease

23

6701159

SHIM .005'' (0,13mm) thickness - 1'' (25,4mm) OD

24

6702163

SPACER

25

6702165

SHIM .002'' (0,05mm) thickness - 1'' (25,4mm) OD

26

HOUSING ASSY NLA - half - Order Ref. 1 - Was 6708642

27

HOUSING ASSY NLA - half - Order Ref. 1 - Was 6707079 - A
