Запчасти Bobcat 600s HYDROSTATIC PUMP 4355035, 4355064, 4355032 & 4355063 HYDROSTATIC SYSTEM

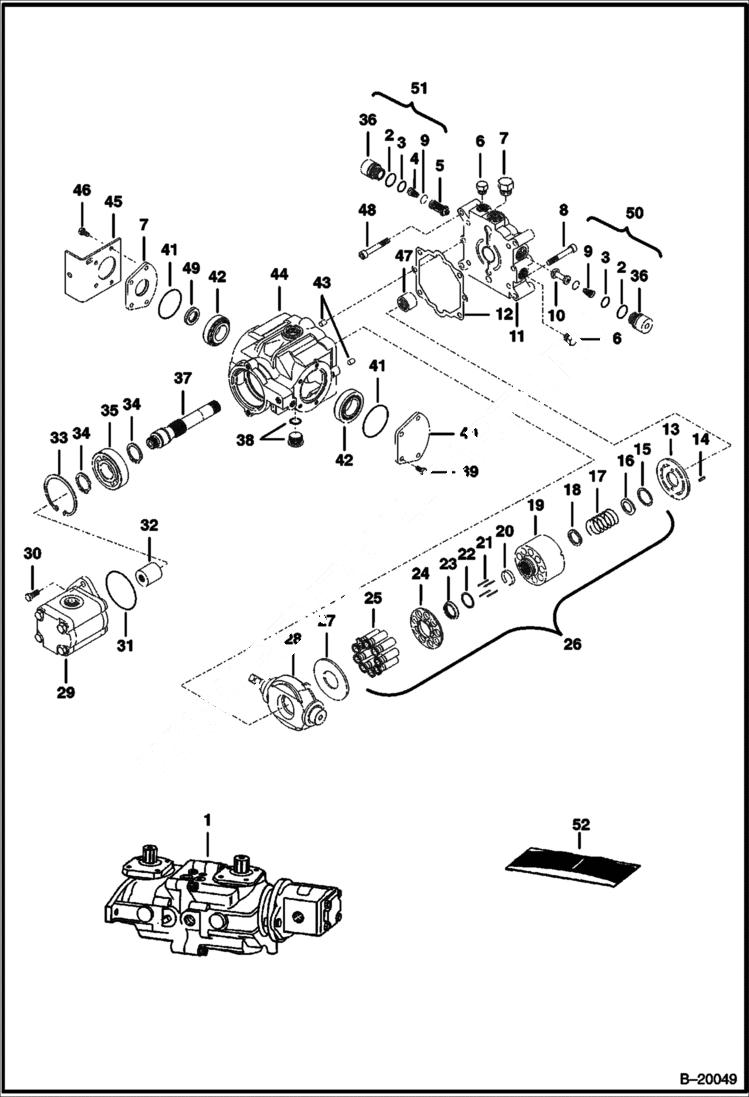

Схема запчастей Bobcat 600s - HYDROSTATIC PUMP 4355035, 4355064, 4355032 & 4355063 HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

PUMP NLA - Complete W/Gear Pump - 4355035 - Order 6669466 Pump Was 6669012 - A

1

PUMP NLA - Model 4355064 - Complete W/Gear Pump - must use brackets 6576196 & 6706096 from old pump - Order 6669077 REM (Pump, hyd complete) Was 6669466 - A

1

PUMP NLA - Complete W/Gear Pump - 4355032 - Export - Order 6669467 Pump - Was 6669013 - A

1

PUMP NLA - Complete W/Gear Pump - 4355063 - Order 6669466 pump - Was 6669467 - A

2

6657028

O-RING

3

79K8

O RING 10

4

654299

BEARING

5

VALVE NLA - SCR - 5000 PSI - Order Ref. 50 - Was 6658300 - A

6

6645086

PLUG

7

6657067

COVER

8

6650637

BOLT Was 6650674 - A

9

RETAINER NLA - Order Ref. 50 or 51 - Was 6657071 - A

10

CHECK VALVE NLA - Order Ref. 51 - poppet - Was 6650669 - A

11

6669405

CAP, END

12

6650634

GASKET

13

6669400

VALVE PLATE

14

6650636

PIN

15

RETAINER NSS

16

WASHER NSS

17

SPRING NSS

18

WASHER NSS

19

BLOCK NSS

20

RETAINER NSS

21

6650629

PIN

22

6666338

WASHER

23

RETAINER NLA - Was 6657073 - A

24

RETAINER NSS

25

PISTON ASSY. NSS

26

6661758

BLOCK ASSY

27

6650627

PLATE

28

6669404

SWASH PLATE

29

GEAR PUMP See Illustration GEAR PUMP/ TS1035B See Illustration GEAR PUMP/ TS1035

30

6666339

BOLT

31

6645080

O-RING

32

6650677

COUPLER

33

669863

RING, SNAP

34

658128

RING, SNAP

35

654299

BEARING

36

PLUG NLA - Order Ref. 50 or 51 - Was 6657070 - A

37

6669407

SHAFT

38

47K8

PLUG

38

79K12

O RING 10

39

6650668

BOLT

40

6657068

COVER

41

6660814

O-RING

42

6669411

BEARING

43

6518460

PIN

44

6669403

HOUSING

45

6576196

MOUNT

46

1CM820

BOLT

47

6650635

BEARING

48

6652018

BOLT

49

6678226

SEAL, OIL Was 6673881 - A

50

6670684

CHECK VALVE

51

6670685

RELIEF VALVE Was 6689601 - A

52

6671516

KIT, SEAL See Illustration HYDROSTATIC PUMP/ B20048 ALSO INCLUDES REF. 2, 3, 12, 41 & 49 - REF. 7, 9, 13, 34, 35, 42, 43, 45, 46 & 50 - WAS 6658092 - A

Выбрано товаров: 56
