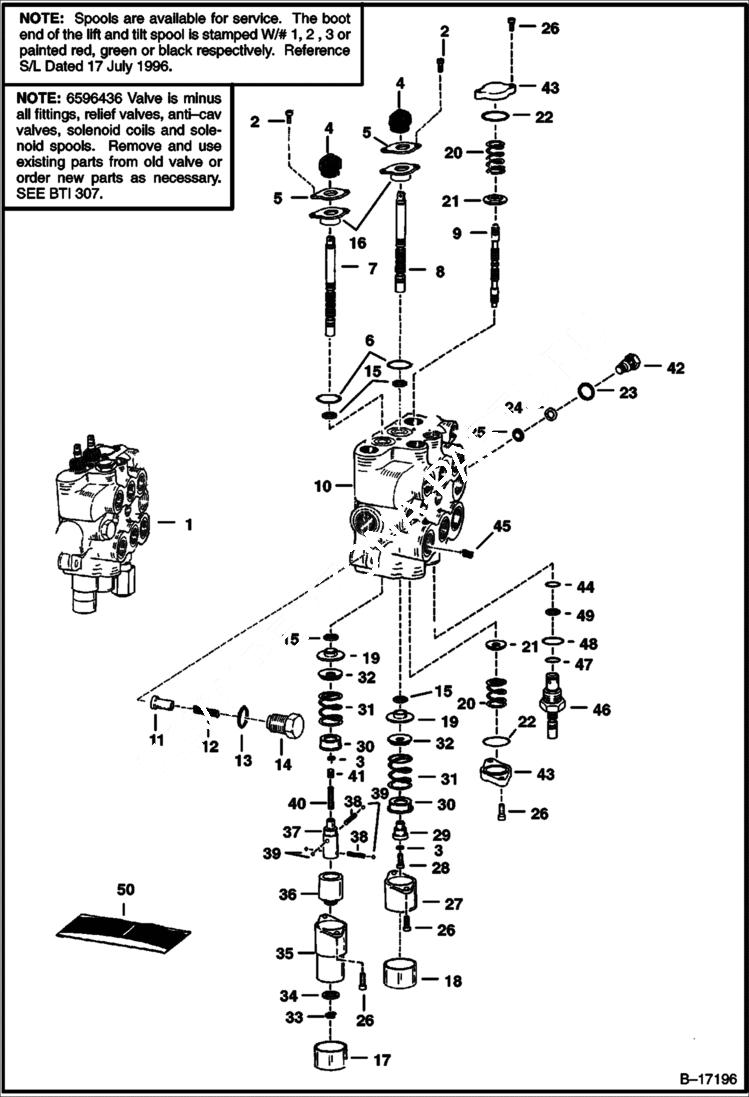

Запчасти Bobcat 600s HYDRAULIC CONTROL VALVE (Service Valve) HYDRAULIC SYSTEM

1

VALVE, CONTROL See BTI307 - NLA - Ref. 2 - 49 - W/SHORT SPOOLS - SEE NOTE - Was 6596436 - A

1

7229299

VALVE, CONTROL SERVICE See BTI307 Ref. 2 - 49

2

29G412

BOLT

3

54K20002

O'RING 10

4

6587763

BOOT

5

6589564

RETAINER flat

6

1K127

O-RING 10 Was 93K127 - A

7

6666588

SPOOL lift - #1 or red - SEE NOTE

7

6666589

SPOOL lift - #2 or green - SEE NOTE

7

6666590

SPOOL lift - #3 or black - SEE NOTE

8

6666591

SPOOL tilt - #1 or red - SEE NOTE

8

6666592

SPOOL tilt - #2 or green - SEE NOTE

8

6666593

SPOOL tilt - #3 or black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

6595706

VALVE, CONTROL body

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

16

6589565

BUSHING seal

17

6660644

CAP

18

6662848

CAP

19

6595663

BUSHING

20

6588197

SPRING

21

6537096

WASHER

22

58K124

O RING 10

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required

25

6677106

O-RING BACK-UP WASHER NOT REQUIRED

26

29G416

BOLT

27

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

28

30G416

BOLT

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

6589226

COVER, END 0.63'' flange

36

6531270

SLEEVE, DETENT lift

37

6587575

ADAPTER

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW

41

6596807

PLUG plastic - 0.46'' long

42

6592720

PLUG W/Ref. 23-25

43

6588981

END CAP

44

O-RING NSS

45

6534630

RESTRICTOR .134/.141

45

6532633

RESTRICTOR .150/.157

46

VALVE NLA - Relief - W/Ref. 47-50 - Pressure Preset At Factory - Was 6676195 - A

46

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

46

6659574

SEAL KIT

47

O-RING NSS

48

WASHER NSS

49

WASHER NSS

50

6816250

KIT, SEAL See BTI374 - Ref. 2, 3, 4, 6, 15, 26 & 41 - for one spool -Was 6803605 - A

50

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

50

6816715

KIT, SEAL See BTI374 - Ref. 2-4, 6, 13, 15, 22-26, 41, 44 & 47-49 - Was 6596311 - A
