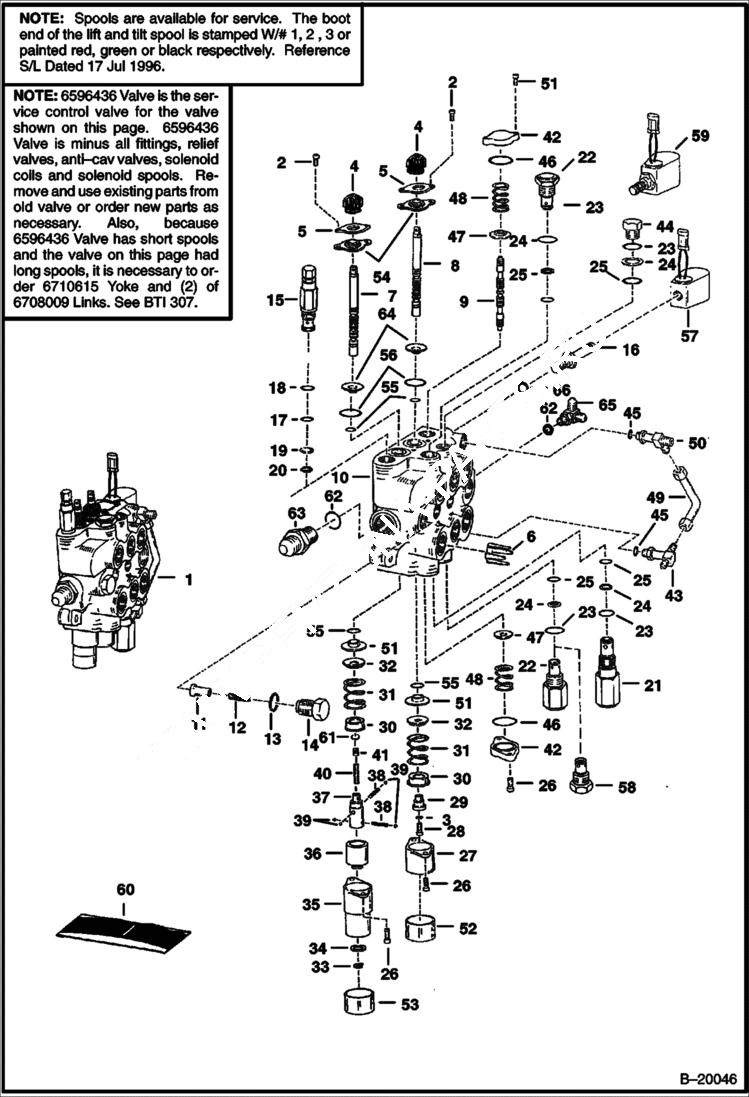

Запчасти Bobcat 600s HYDRAULIC CONTROL VALVE (S/N 514811037 - 11115) HYDRAULIC SYSTEM

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17196 See BTI307 NLA - REF. 2-56 - W/SHORT SPOOLS & FITTINGS - WAS 6597195 - A

2

29G412

BOLT

3

22E4

WASHER

4

6587763

BOOT

5

6589564

RETAINER flat

6

6534630

RESTRICTOR .134/.141

7

6666588

SPOOL lift - #1 or red - SEE NOTE

7

6666589

SPOOL lift - #2 or green - SEE NOTE

7

6666590

SPOOL lift - #3 or black - SEE NOTE

8

6666591

SPOOL tilt - #1 or red - SEE NOTE

8

6666592

SPOOL tilt - #2 or green - SEE NOTE

8

6666593

SPOOL tilt - #3 or black - SEE NOTE

9

6589663

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

VALVE NLA - Main Relief - W/Ref. 17-20 - Pressure Preset At Factory - 2500-2600 PSI - Was 6676196 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6665758

VALVE W/Ref. 66

17

O-RING NSS

18

WASHER NSS - back-up

19

O-RING NSS

20

RING NSS - glide

21

6599161

RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 23-25

22

6667549

VALVE anti-cavity check - W/Ref. 23-25 - Was 6665533 - A

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required

25

6677106

O-RING BACK-UP WASHER NOT REQUIRED

26

29G416

BOLT

27

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

28

30G416

BOLT

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

6589226

COVER, END 0.63'' flange

36

6531270

SLEEVE, DETENT lift

37

6587575

ADAPTER

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW

41

6596807

PLUG plastic - 0.46'' long

42

6588981

END CAP

43

TEE NLA - W/Ref. 45 - W/O flared end o-ring - Was 6587888 - A

43

6805696

TEE W/Ref. 45 - W/flared end o-ring

43

97K6

O RING flared end

44

6592720

PLUG W/Ref. 23-25

45

79K6

O RING 10

46

58K124

O RING 10

47

6537096

WASHER

48

6588197

SPRING

49

6577690

TUBE

50

TEE NLA - W/Ref. 45 - W/O flared end o-ring

50

6805243

TEE W/Ref. 45 - W/flared end o-ring

50

97K6

O RING flared end

51

6595663

BUSHING

52

6662848

CAP

53

6660644

CAP

54

6589565

BUSHING

55

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

56

1K127

O-RING 10 Was 93K127 - A

57

6717708

COIL, 14 VOLT 14 Volt - Was 6665759 - A

57

6679961

NUT

58

59

6653395

VALVE, SOLENOID solenoid - Ref. 16 & 57

59

6586459

SEAL KIT

60

6816250

KIT, SEAL See BTI374 - Ref. 2, 4, 26, 41, 55 & 56 - for one spool - Was 6803605 - A

60

6632279

KIT, SEAL Ref. 17 - 20

60

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

60

6816715

KIT, SEAL See BTI374 - Ref. 2, 4, 13, 17-20, 23-26, 41, 45, 46, 55, 56, 61 & 66 - Was 6596311 - A

61

54K20002

O'RING 10 Was 58K-20002 - B

62

79K12

O RING 10 for flat boss face

62

99K12

O RING tapered boss face

63

15K8

FITTING W/Ref. 62 - flat boss face

63

15KB1212

FITTING, HYD CONNECTOR W/Ref. 62 - tapered boss face - Was 15KN00008B - A

63

97K12

O'RING flared end

64

6538466

BUSHING

65

6715653

TEE W/Ref. 11 - Was 6704158 - A

66

79K7

O RING 10
