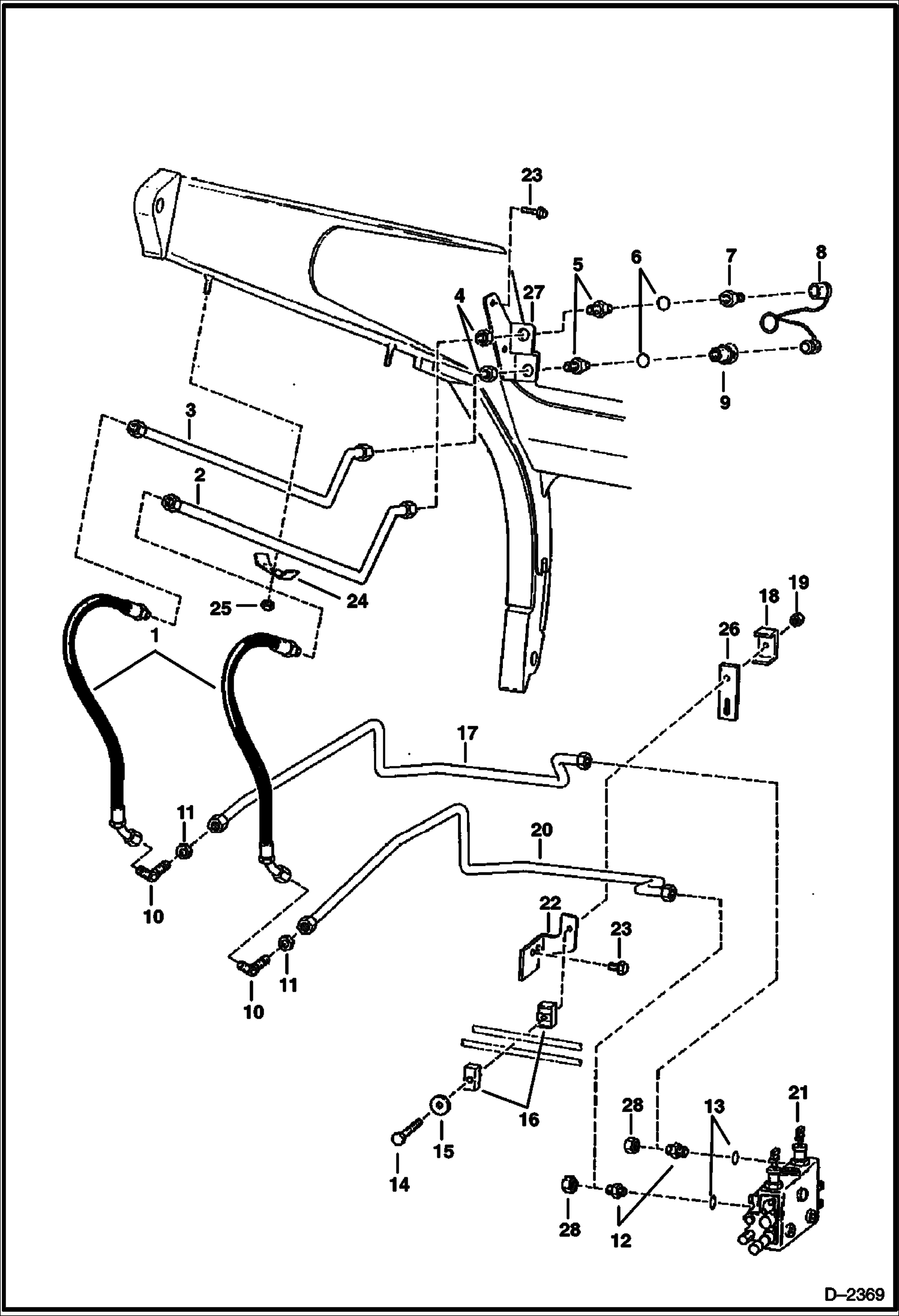

Запчасти Bobcat 600s AUXILIARY HYDRAULICS (S/N 5148 11080 & Below) HYDRAULIC SYSTEM

1

6729153

HOSE Was 6714577 - A

2

6704409

TUBE

3

6704410

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6

6

79K10

O RING 10

7

6598757

COUPLER, POPPET MALE straight

8

6513709

CAP PLUG Assy. - Rubber

8

6515167

PLUG Steel

8

6515168

CAP Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

9

6665430

BACKUP RING

10

46K8

ELBOW

11

86F8

NUT 5

12

15K8

FITTING W/Ref. 13 - flat boss face

12

15KB1212

FITTING, HYD CONNECTOR W/Ref. 13 - tapered boss face - Was 15KN00008B - A

12

97K12

O'RING flared end

13

79K12

O RING 10 for flat boss face

13

99K12

O RING tapered boss face

14

17C552

BOLT

15

872229

WASHER

16

6701892

CLAMP

17

6708917

TUBE Was 6709817 - D

18

6568476

CLAMP

19

91D5

NUT 5

20

6708916

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20046

22

6704619

MOUNT

23

84G3112

BOLT 5

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

6705700

MOUNT

28

36K8

CAP
