Запчасти Bobcat 600s LIFT & TILT CONTROL SYSTEM (S/N 5148 11116 & Above) HYDRAULIC SYSTEM

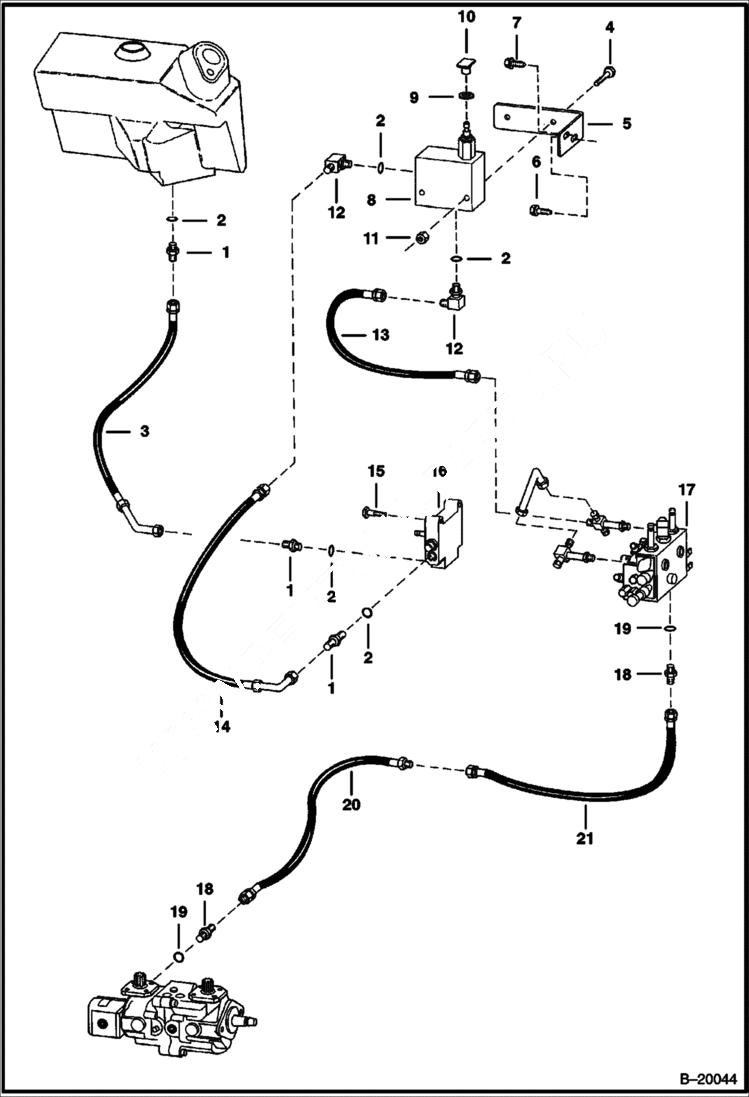

Схема запчастей Bobcat 600s - LIFT & TILT CONTROL SYSTEM (S/N 5148 11116 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

15K5

FITTING W/Ref. 2 - flat boss face

1

ADAPTER NLA - W/Ref. 2 - Tapered Boss Face - Was 15KV-5 - A

1

97K6

O RING flare end

1

15KB0606

FITTING, HYD CONNECTOR W/Ref. 2 - flat boss face

2

79K6

O RING 10 flat boss face

2

99K6

O RING tapered boss face

3

6711656

HOSE

4

17C568

BOLT

5

6711280

MOUNT

6

84G3716

SCREW 5

7

84G3712

BOLT 5

8

VALVE See Illustration MANUAL LIFT RELEASE VALVE/ C3422 MANUAL LIFT RELEASE

9

6707101

SEAL neoprene

10

6737524

KNOB red square - Was 6668913 - A

11

83D4

NUT 10

12

17K5

ELBOW

13

6535451

HOSE

14

6578804

HOSE

15

43C532

BOLT

16

6668571

VALVE See Illustration BICS CONTROL VALVE/ TS1365 BICS CONTROL

17

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1454 NSS - CONTROL - ORDER 6628394

18

15K8

FITTING W/Ref. 19 - flat boss face

18

15KB1212

FITTING, HYD CONNECTOR W/Ref. 19 - tapered boss face - Was 15KN00008B - A

18

97K12

O'RING flared end

19

79K12

O RING 10 for flat boss face

19

99K12

O RING tapered boss face

20

6669446

O-RING

21

6711653

TUBE

Выбрано товаров: 28
