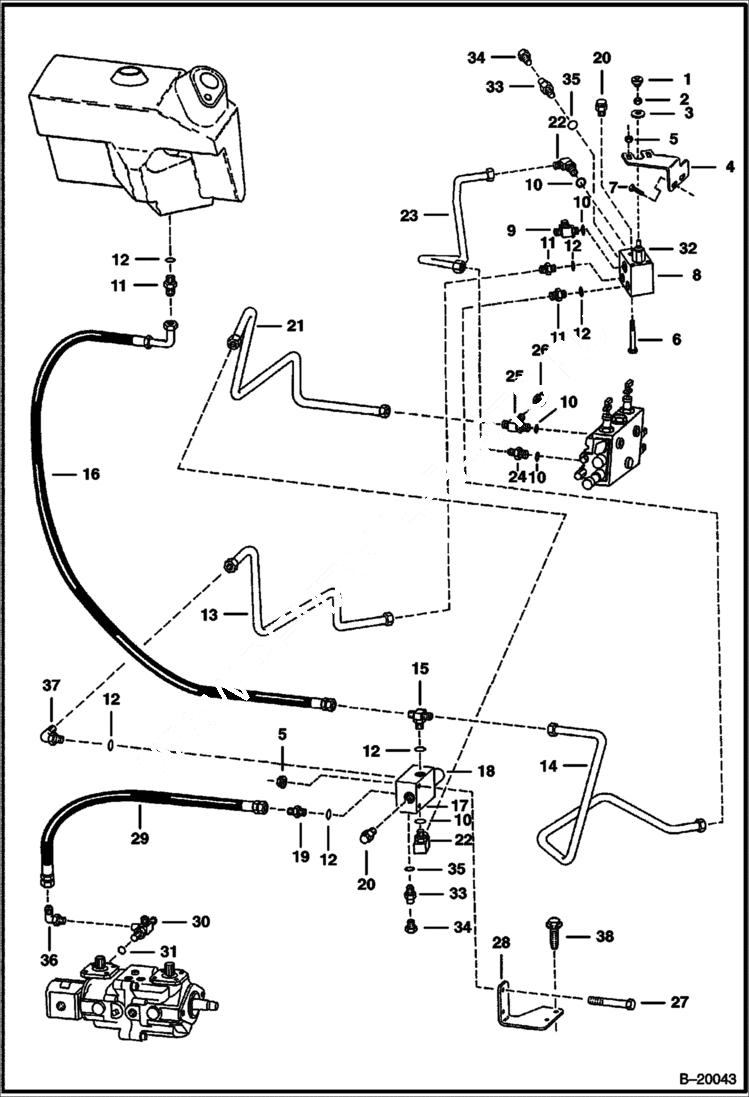

Запчасти Bobcat 600s LIFT & TILT CONTROL SYSTEM (S/N 5148 11115 & Below) HYDRAULIC SYSTEM

1

KNOB NLA - Red - Round - Lift Lock Valve - Order Knob - Was 6664858 - A

1

6737524

KNOB red square - Was 6668913 - A

2

7D4

NUT

3

6707101

SEAL neoprene

4

6706582

MOUNT

5

83D5

NUT 5

6

17C568

BOLT

7

84G3716

SCREW 5

8

6664850

VALVE See Illustration LIFT LOCK VALVE/ C3386 lift lock - Also W/Ref. 33

9

6578183

TEE W/Ref. 22

10

79K10

O RING 10 for flat boss face

10

99K10

O'RING for tapered boss face

11

15K5

FITTING W/Ref. 12

12

79K6

O RING 10

13

6708745

TUBE

14

6708788

TUBE

15

19K5

FITTING W/Ref. 12

16

6587277

HOSE

17

6664849

VALVE See Illustration TILT LOCK VALVE/ C3387 tilt lock solenoid - W/Ref. 18-20

18

SOLENOID NLA - W/O diode - Was 6667157 - A

18

6672471

VALVE, SOLENOID W/diode - SEE NOTE

18

6667687

VALVE, STEM SOLENOID Was 6665004 - A

18

COIL NLA - W/O Diode - 2 Red Wires - Was 6667138 - A

18

6671025

COIL W/Diode - 1 Red Wire, 1 Black Wire

18

6665487

SEAL KIT

19

6665489

ADAPTER filter

20

6665610

VALVE

20

6665612

SEAL KIT

21

6708747

TUBE

22

17K7

ELBOW W/Ref. 12

23

6707369

TUBE

24

15K7

FITTING W/Ref. 10 - flat boss face

24

15KB1010

FITTING, HYD CONNECTOR W/Ref. 10 - tapered boss face - Was 15KV00007B - A

24

97K10

O-RING 10 flared end

25

21K7

TEE W/Ref. 10 - flat boss face

25

21KB1010

FITTING, HYD TEE W/Ref. 10 - tapered boss face - Was 21KN00007B - A

25

97K10

O-RING 10 flared end

26

36K7

FITTING

27

17C560

BOLT

28

6709449

BRACKET

29

6709173

HOSE

30

6707103

CONNECTOR W/Ref. 10

31

79K12

O RING 10

32

6665490

VALVE manual pull

32

6666828

SEAL KIT

33

6665609

CHECK VALVE

33

6665611

SEAL KIT

34

6667127

PLUG W/Ref. 35

35

79K4

O RING 10

36

17K3

ELBOW

37

17K5

ELBOW

38

84G3712

BOLT 5
