Запчасти Bobcat 600s HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) (S/N 5148 11115 & Below) HYDRAULIC SYSTEM

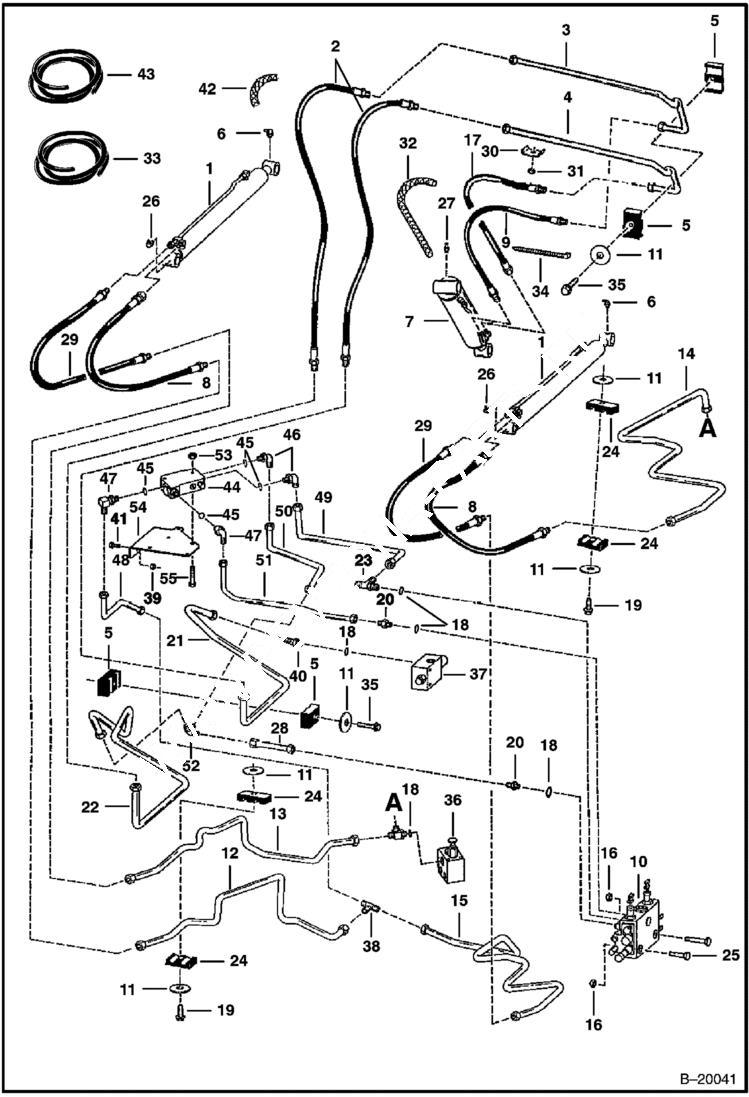

Схема запчастей Bobcat 600s - HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) (S/N 5148 11115 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

2

6577669

HOSE

3

6727840

TUBE Was 6703608 - A

4

6727841

TUBE Was 6703609 - A

5

6701893

CLAMP

6

12H15

FITTING, GREASE 5

7

CYLINDER See Illustration TILT CYLINDER/ TS1127 TILT

8

6577671

HOSE, HYD ASSY

9

6704335

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20046

11

872229

WASHER

12

6709207

TUBE

13

6709206

TUBE

14

6708740

TUBE

15

6708743

TUBE

16

85D5

NUT 5

17

6704336

HOSE

18

79K10

O RING 10 for flat boss face

18

99K10

O'RING for tapered boss face

19

84G3732

BOLT

20

15K7

FITTING W/Ref. 18 - flat boss face

20

15KB1010

FITTING, HYD CONNECTOR W/Ref. 18 - tapered boss face - Was 15KV00007B - A

20

97K10

O-RING 10 flared end

21

6708744

TUBE

22

6708746

TUBE

23

6578183

TEE W/Ref. 18

24

6701892

CLAMP

25

17C532

BOLT 5

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6705069

TUBE

29

6718954

HOSE Was 6578808 - A

30

6502203

CLAMP

31

59D6

NUT

32

COVER NLA - 18'' (457,2 mm) - Order Ref. 33

33

6656155

HOSE COVER bulk - sold per foot

34

6610510

TIE

35

84G3724

BOLT

36

6664850

VALVE See Illustration LIFT & TILT CONTROL SYSTEM/ B20043 - lift lock

37

6664849

VALVE See Illustration LIFT & TILT CONTROL SYSTEM/ B20043 TILT LOCK

38

10K6

FITTING

39

57D4

NUT

40

17K7

ELBOW W/Ref. 18

41

35C412

BOLT

42

COVER NLA - 36''(914,4 mm) - Order Ref. 43

43

6705749

SHIELD bulk - sold per foot

44

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA - Order 6673959 valve - If loader is not equipped with an on/off switch, also order 6647784 plug, 79K8 O-ring, 6647785 spring, & 6647783 loa

45

79K10

O RING 10

46

17K7

ELBOW W/Ref. 3

47

784568

ELBOW W/Ref. 3

48

6705068

TUBE

49

6704840

TUBE

50

6704839

TUBE

51

6704837

TUBE

52

6705070

TEE

53

57D5

NUT

54

6704833

BRACKET

55

35C540

BOLT
