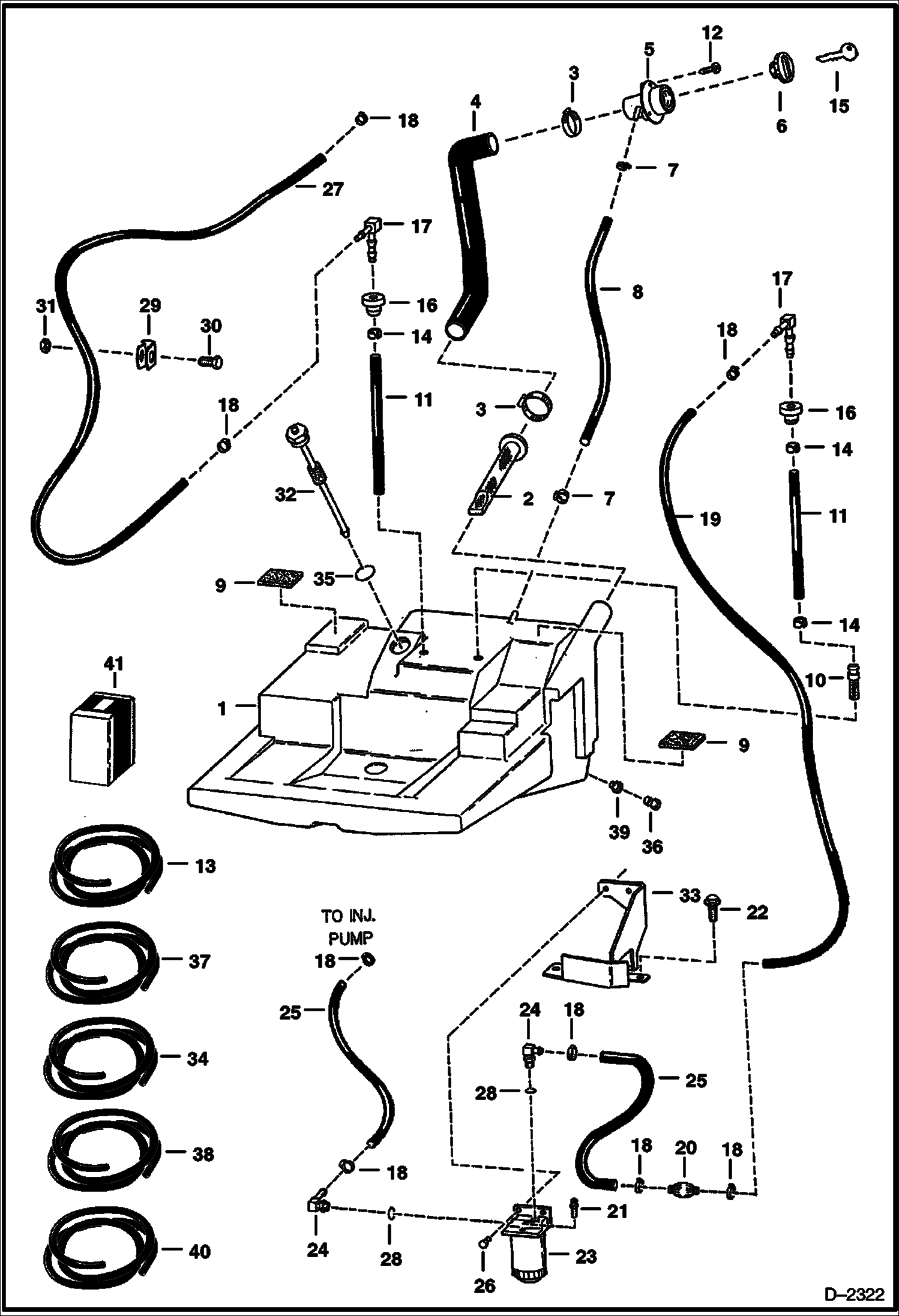

Запчасти Bobcat 600s FUEL SYSTEM MAIN FRAME

1

TANK NLA - SEE NOTE - Order Ref. 10, 11, 14, 16 & 17 - WAS 6708068 - A

1

6712882

TANK See Note

2

7120881

SCREEN, FILLER Was 6569219 - A

3

42H32

HS CLAMP5 Was 6513595 - A

4

6710654

HOSE Was 6709839 - A

5

6701449

FILLER TUBE

6

6632468

CAP green

6

6661696

CAP, FUEL LOCKING locking - Code PK510 - Order Ref. 13

7

42H10

HOSECLAM5

8

HOSE NLA - 25'' (635,0 mm) - Order Ref. 13

9

6578278

PAD self adhesive one side

10

6666600

SCREEN

10

6650239

SCREEN, FUEL PICKUP

11

HOSE NLA - 12''(304,8 mm) - Order Ref. 37 - Was 6576386 - D

12

6706517

SCREW

13

6578172

HOSE bulk - sold per foot

14

6666602

CLAMP for .50'' ID hose

14

6661213

RING, COMPRESSION for .25'' ID hose

15

6587458

KEY Code PK510

16

BUSHING NLA - Was 6708943 - A

16

6553411

BUSHING 0.38'' ID

17

6708817

ELBOW

17

7126672

ELBOW barbed - Was 6666302 - A

18

42HS04

CLAMP, HOSE Was 6515575 - A

19

HOSE NLA - 30'' (762,0 mm) - Order Ref. 34

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

21

6658180

PLUG, BLEED

22

84G3712

BOLT 5

23

6667353

FILTER ASSY W/Ref. 21

23

6667352

FILTER, FUEL W/SEPARATOR 12

23

72F1

FITTING

24

ELBOW NLA - W/Ref. 28 - Flat Boss Face - Was 6657083 - A

24

6715183

ELBOW W/Ref. 28 - Check Boss Face To Determine Correct Replacement O-Ring

25

HOSE NLA - 9'' (228, 6 mm) - Order Ref. 34

26

17C512

BOLT 5

27

HOSE NLA - 49'' (1244,6 mm) - Order Ref. 34

28

79K5

O RING 10 Flat Boss Face

28

99K5

O-RING Tapered Boss Face

29

30H36

CLIP

30

17C612

BOLT 5

31

61D6

NUT 5

32

SENDER NLA - Fuel W/Ref. 35 (25K-40102 O-Ring) - 12.30 in. (312,4 mm) - Was 6667847 - A

32

7216453

SENSOR, FUEL Fuel - W/Ref. 35 (6717579 Gasket) - 12.30 in. (312,4 mm) - Was 6680448 - A

33

6712909

BRACKET Was 6710447 - A

34

6577822

HOSE bulk - sold per foot

35

25K40102

O RING 10 Was 79K000020B - B

35

6717579

GASKET

36

6599645

PLUG, STEEL fuel drain

37

6708944

HOSE - BULK/FT bulk-Sold Per Foot

38

6578169

HOSE bulk - sold per foot - 0.19'' ID

39

6553411

BUSHING 0.38'' ID

40

6569752

HOSE BULK/FT Bulk-Sold Per Foot-.25 I.D.(6,3 mm)
