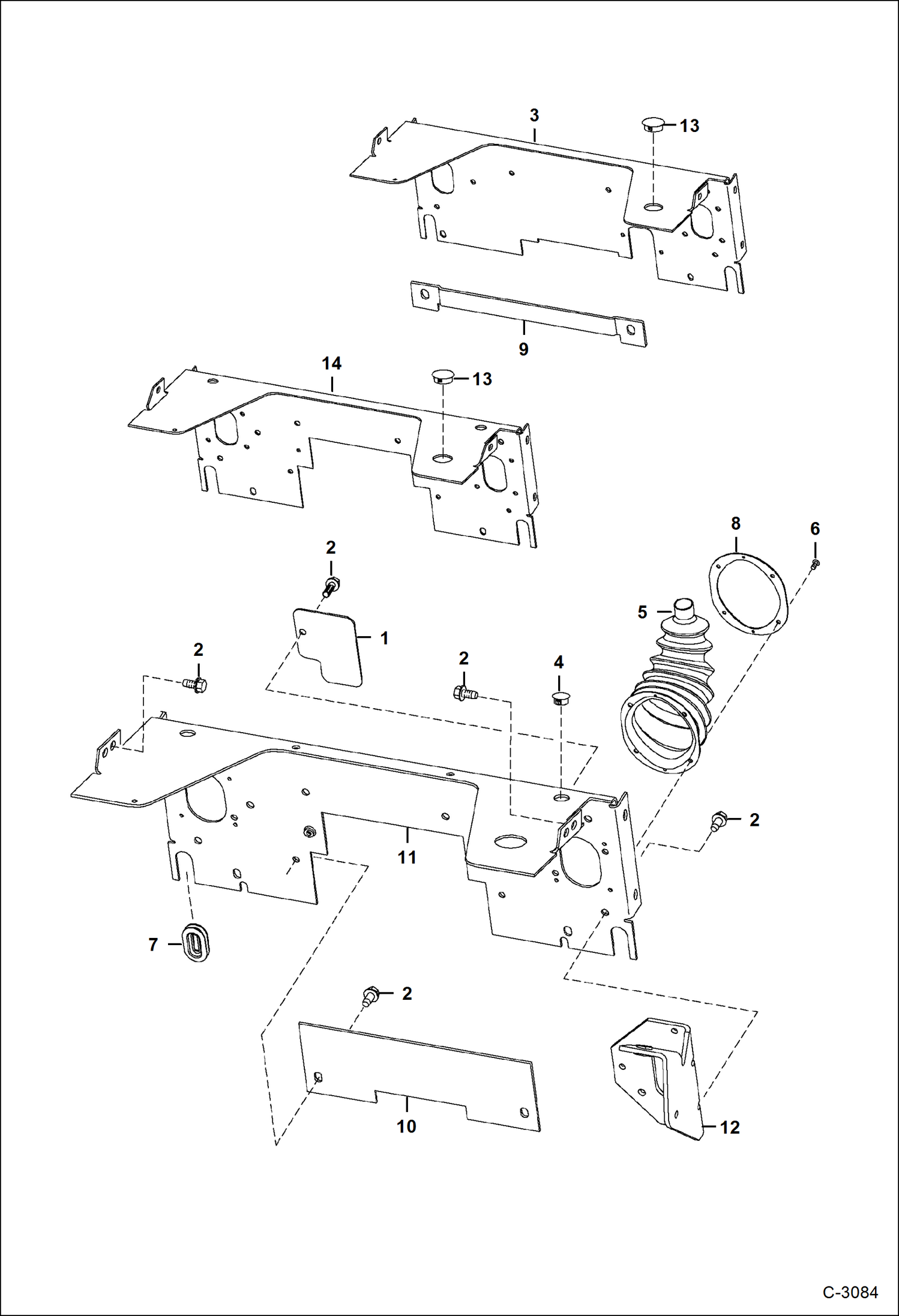

Запчасти Bobcat 600s PANELS MAIN FRAME

1

6707316

PLATE

2

84G3712

BOLT 5

3

SHIELD NLA - Order (2) of Ref. 2 & (1) ea. of Ref. 10, 11 & 6734520 cover - Was 6706917 - A

4

5289686

PLUG black - 0.38'' dia hole

4

6657719

PLUG 0.75'' dia hole

4

6648348

PLUG 0.81'' dia hole

5

6532127

BOOT W/Ref. 8

6

6630207

RIVET 5

7

6577961

GROMMET

8

PLATE NLA - Order Ref. 5

9

COVER NLA - Order Ref. 10 - Was 6717890 - B

10

6718446

COVER 5.25'' x 13'' (133,4 mm x 330,2 mm)

11

7139183

SHIELD

12

BRACKET See Illustration HAND CONTROLS/ B20047 R.H. - Was 6733022 - A

12

BRACKET See Illustration HAND CONTROLS/ B20047 L.H. - Was 6733024 - A

13

6681469

PLUG 35 mm (1.38'') dia hole - Was 6665697 - A

14

SHIELD NLA - Order Ref. 11 & 6734520 cover - Was 7106687 - A
