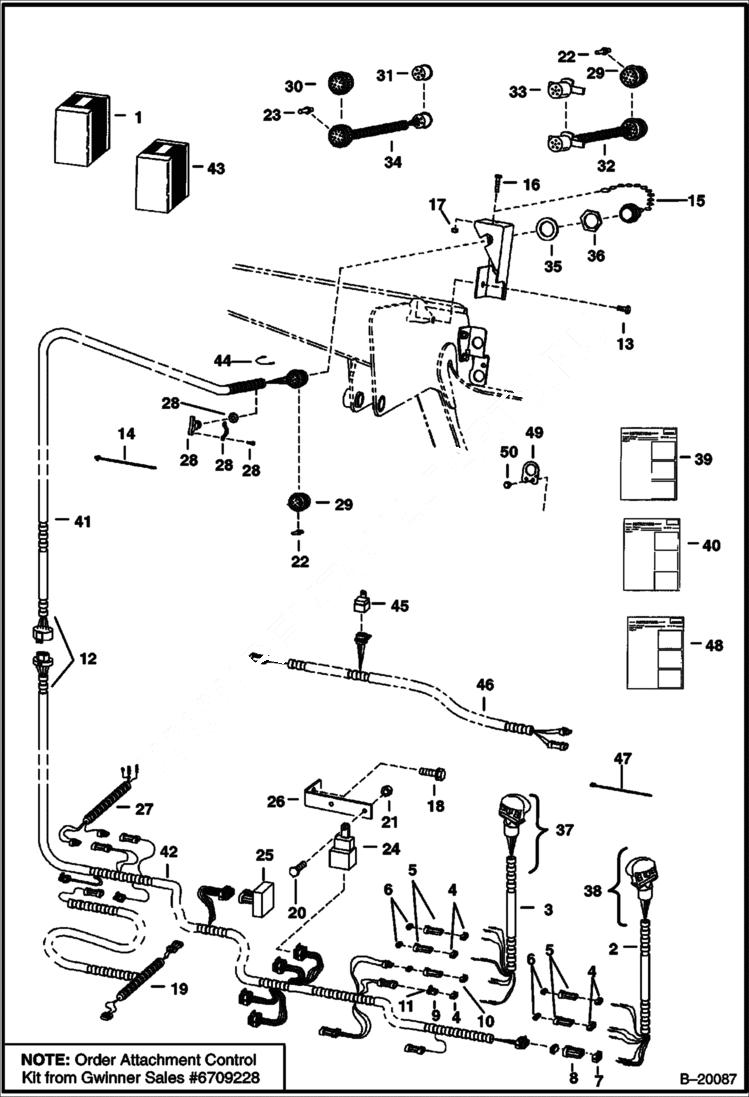

Запчасти Bobcat 600s ELECTRICAL CONTROLS KIT (Attachments) ACCESSORIES & OPTIONS

1

KIT SALES - controls - W/handles - Ref. 2-29 & 35-42

1

KIT SALES - controls-W/O handles-Ref. 12-29

2

6680413

HANDLE ASSY R.H. - Also Order Ref. 4, 5, 7 & 8 - Was 6706340 - A

2

6640690

PIN

2

6641176

SEAL

3

6680412

HANDLE ASSY L.H. - Also Order Ref. 4, 5 & 9-11 - Was 6707976 - A

3

6640690

PIN

3

6640691

PIN

3

6641176

SEAL

3

6662257

PIN

3

6680447

DECAL Was 6677370 - A

4

6641180

LOCK Use W/ 2-pin connector

4

6640700

LOCK 3-pin

5

6641179

CONNECTOR 2-pin

5

6640699

CONNECTOR 3-pin

6

6649683

SEAL For Use W/2 - pin connector

6

6659553

SEAL For Use W/3 - pin connector

7

6641181

LOCK 6-pin

8

6641173

CONNECTOR 6-pin

9

6641178

CONNECTOR 2-pin

10

6664800

LOCK 3-pin triangle

11

6664599

CONNECTOR 3-pin triangle

12

HARNESS NLA - One Piece - Order Ref. 41, 42, 6711621 & 4 of 6665005 - Was 6705901 - A

13

6706753

MOUNT Use W/Ref. 12

13

6711621

MOUNT Also Order Ref. 41 - Was 6665005 - A

14

6610510

TIE

15

6664035

CAP

16

45G508

BOLT

17

50D5

NUT

18

84G3712

BOLT 5

19

6706552

HARNESS for grader - Not in Kit

20

45G1212

BOLT

21

50D12

NUT

22

6664040

PIN male

23

6664041

SOCKET female

24

6651975

SWITCH magnetic - Use W/Ref. 12

24

6670312

SWITCH, MAGNETIC relay - Use W/Ref. 41 - Was 6665005 - A

25

6664388

DIODE memory

26

6702650

MOUNT

27

6706446

HARNESS Not in Kit

28

6649028

CLAMP

29

6667569

CONNECTOR, RECEPTACLE Also Order (14) of Ref. 22 - Was 6664039 - A

30

6664034

CONNECTOR Also Order (6) of Ref. 23 - Not in Kits

31

6664181

CONNECTOR trailer style - Not in Kits

32

6706392

HARNESS connects old loader harness to new attachment harness - W/Ref. 29 & 33 - Not in Kits

33

6664182

CONNECTOR trailer style - Not in Kits

34

6706391

HARNESS connects new loader harness to old attachment harness - W/Ref. 30 & 31 - Not in Kits

35

6664037

WASHER

36

6664036

NUT

37

6706568

KIT handle - Ref. 3 - 5, 9 - 11 & 39

38

6706567

KIT handle - W/Ref. 2, 5, 7, 8 & 39

39

6722759

INSTRUCTIONS FOR REF. 3 - 5 & 9 - 11

40

6722758

INSTRUCTIONS for control elec. kit

41

6710299

HARNESS, ATTACHMENT PWM

42

6710300

HARNESS

43

6716799

KIT dual functions aux. - Ref. 44 & 48

44

6716844

HARNESS jumper

45

6670312

SWITCH, MAGNETIC relay

46

6716798

HARNESS KP diverter

47

6624289

STRAP, TIE

48

6900601

INSTRUCTIONS

49

6714999

MOUNT

50

84G3112

BOLT 5
