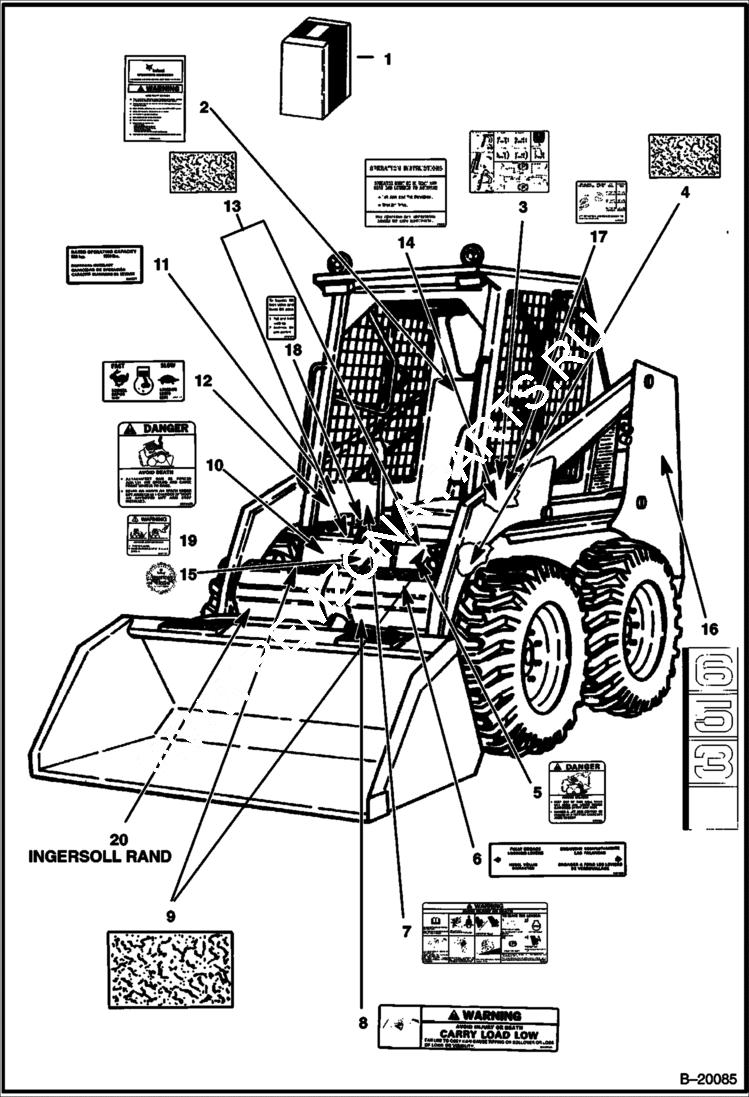

Запчасти Bobcat 600s DECALS ACCESSORIES & OPTIONS

1

6900507

KIT See Illustration DECALS/ B20086 DECAL - REF. 2-15 ON THIS PAGE & REF. 2-15

2

6708154

HANDBOOK, OPERATOR'S W/WIRE ROPE

2

6708154ES

KIT Handbook - W/ Wire Rope - Spanish

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

3

6703723

DECAL operating

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6579639

DECAL danger

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6579510

DECAL warning

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6579509

DECAL danger

11

6710310

DECAL capacity - 653

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6577949

SAFETY TREAD 6.8'' x 8.75'' - (172,7 mm x 222,3 mm)

13

6707255

DECAL Operation - W/ Seat Sensor

14

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

15

6705088

DECAL America's Best

16

6709377

DECAL model no. - 653 - L.H.

17

6709790

DECAL pre heat

18

6706809

DECAL lift lock

18

6711840

DECAL lift lock

19

6710358

DECAL warning

20

DECAL NLA - Was Ingersoll Rand - white lettering - Was 6711328 - A
