Запчасти Bobcat 600s BACK-UP ALARM KIT ACCESSORIES & OPTIONS

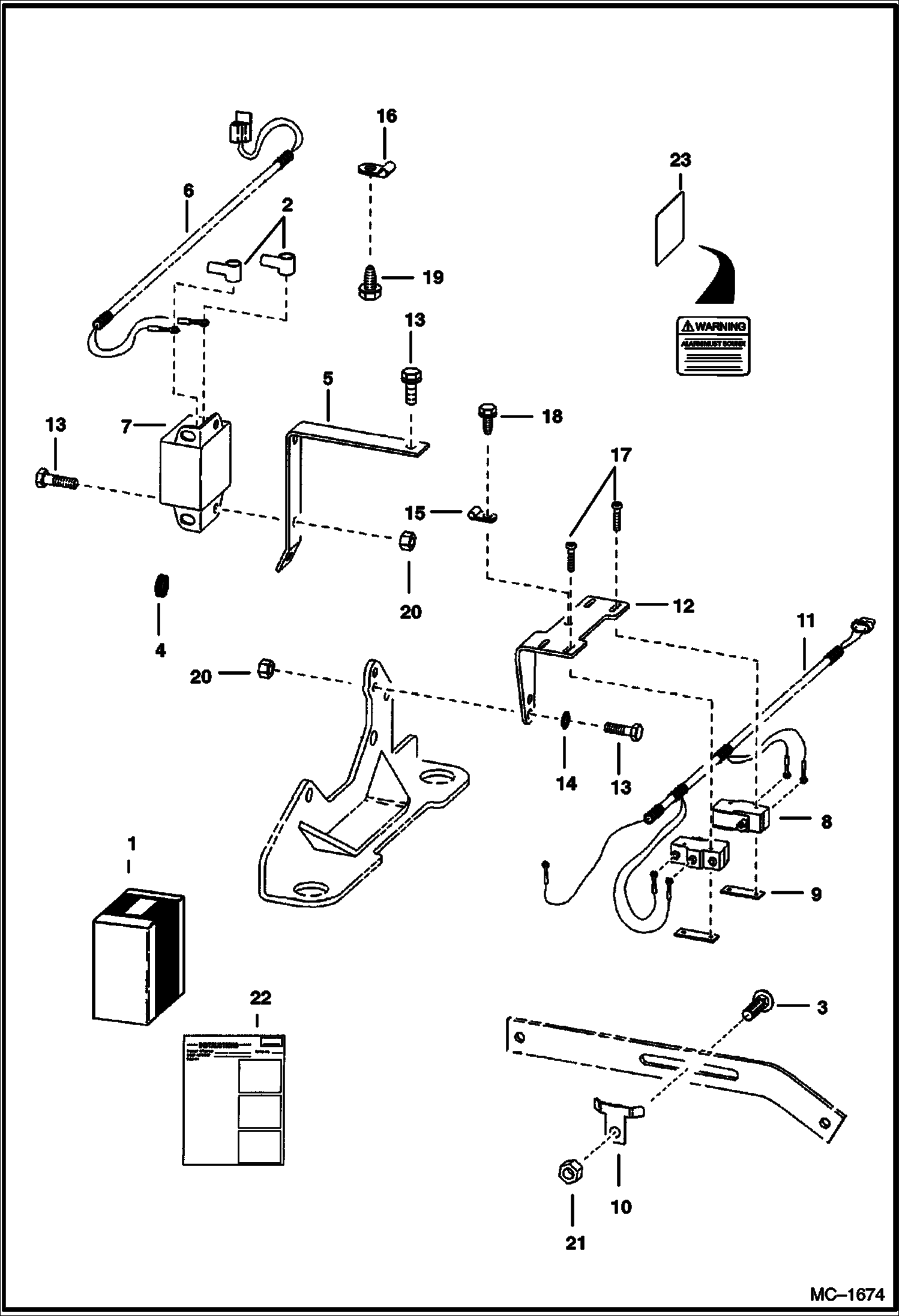

Схема запчастей Bobcat 600s - BACK-UP ALARM KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6703978

KIT Ref. 2 - 22

2

616334

COVER

3

6514537

BOLT carriage

4

6557493

GROMMET

5

6565275

BRACKET

6

6565500

HARNESS

7

6651512

ALARM, BACK-UP Was 6599931 - A

7

6668879

DECAL

8

6646781

SWITCH

9

6702593

SPACER

10

6703974

BRACKET

11

6705736

HARNESS Was 6703975 - A

12

6703976

MOUNT

13

17C512

BOLT 5

14

6E5

WASHER

15

30H22

CLIP

16

30H31

CLAMP 10

17

59G616

SCREW 10

18

84G3110

SCREW

19

84G3712

BOLT 5

20

85D5

NUT 5

21

85D6

NUT, 5

22

6720953

INSTRUCTIONS

23

6737189

DECAL, WARNING backup alarm

Выбрано товаров: 24
