Запчасти Bobcat 600s UPPER GASKET KIT POWER UNIT

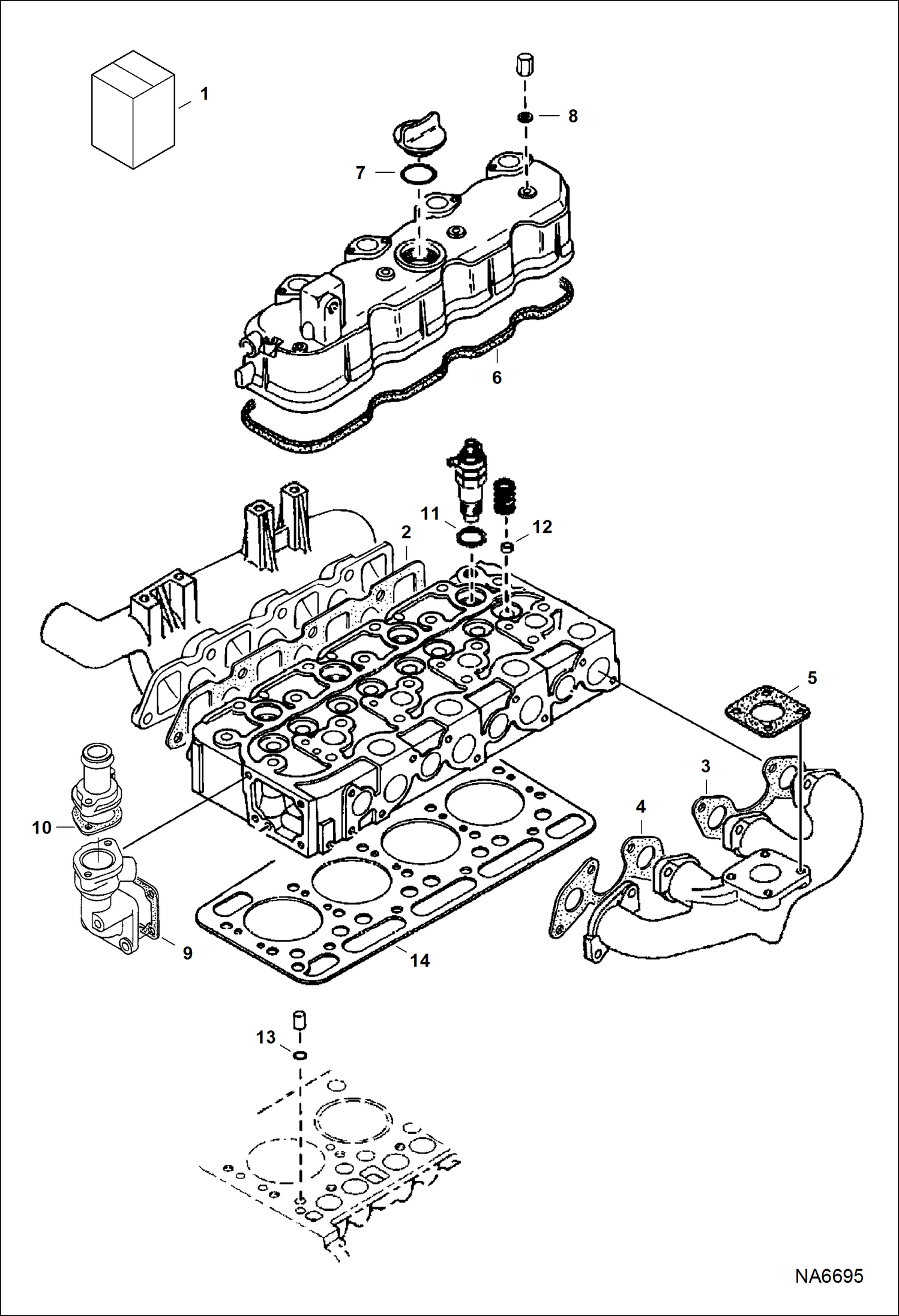

Схема запчастей Bobcat 600s - UPPER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

6630554

GASKET KIT Ref. 2-14

2

6666801

GASKET See Illustration MANIFOLDS/ C2566 - intake

3

6666781

GASKET See Illustration MANIFOLDS/ C2566 - exhaust

4

6666791

GASKET See Illustration MANIFOLDS/ C2566 - exhaust

5

6960259

GASKET See Illustration MANIFOLDS/ C2566 - exhaust

6

6598136

GASKET, COVER VALVE See Illustration ROCKER ARM COVER/ C2559

7

6684782

O-RING See Illustration ROCKER ARM COVER/ C2559

8

3974095

MET-GASK See Illustration ROCKER ARM COVER/ C2559

9

6666802

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B18616 - water flange

10

6684863

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B18616 - thermostat

11

3974255

WASHER See Illustration CYLINDER HEAD/ C2549

12

6653830

SEAL, STEM VALVE See Illustration CYLINDER HEAD/ C2549

13

3974038

O RING See Illustration CRANKCASE/ C2551

14

6666799

GASKET, HEAD CYL See Illustration CYLINDER HEAD/ C2549

Выбрано товаров: 14
