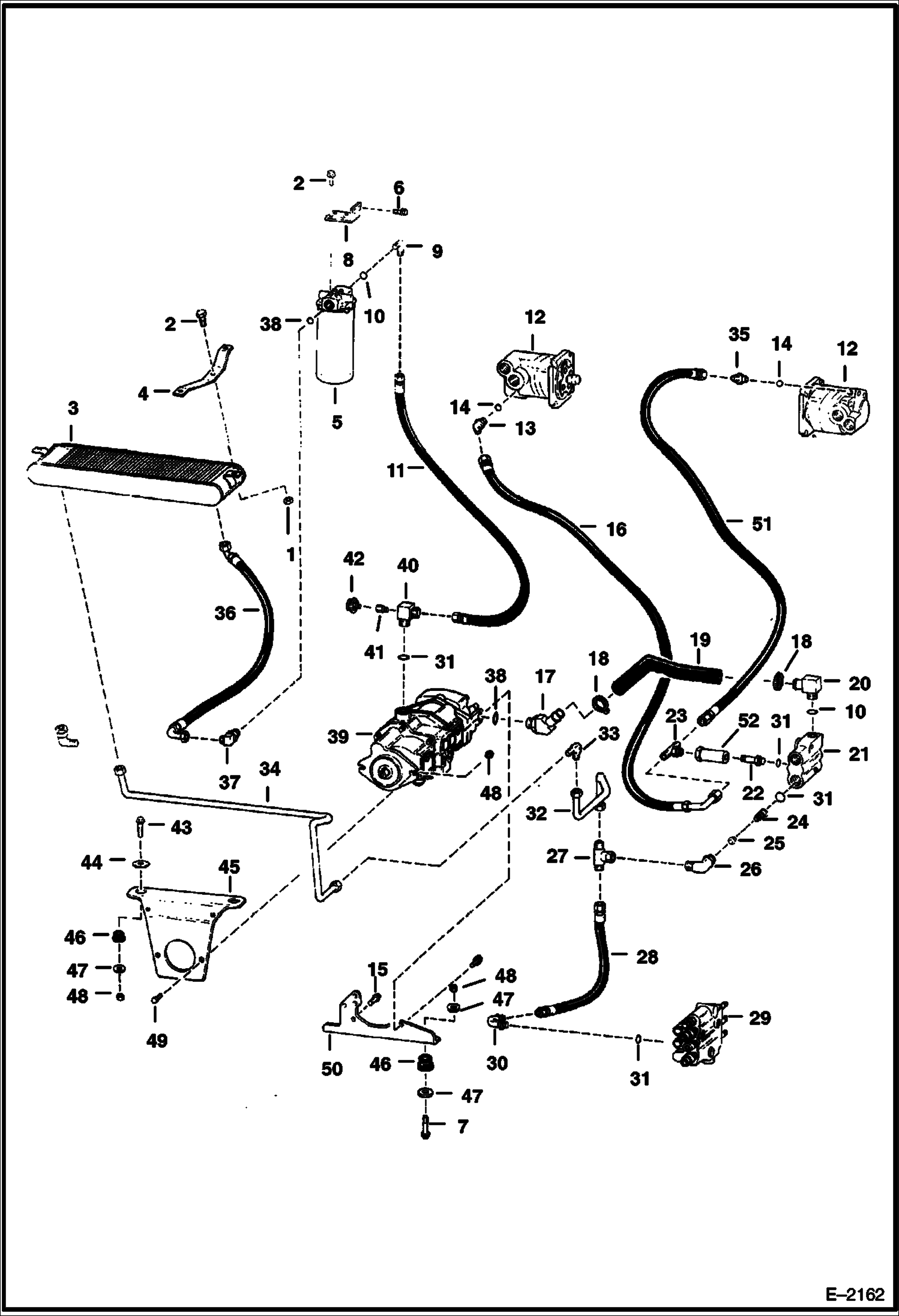

Запчасти Bobcat 600s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

85D6

NUT, 5

2

35C612

BOLT

3

6560954

OIL COOLER

4

6565195

BRACKET

5

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

6

84G3712

BOLT 5

7

17C836

BOLT

8

6565336

BRACKET

9

17K8

FITTING W/Ref. 10

10

79K12

O RING 10

11

6702857

HOSE

12

MOTOR See Illustration HYDROSTATIC MOTOR/ D1928

13

18K5

ELBOW W/Ref. 14

14

79K6

O RING 10

15

17C816

BOLT

16

6578327

HOSE

17

6577888

ELBOW W/Ref. 38

18

44H20

CLAMP Was 6666864 - A

19

6565344

HOSE

20

1321499

FITTING W/Ref. 10 - Was 6567884 - A

21

6565748

BLOCK port

22

731795

CONNECTR

23

19K5

FITTING

24

6565425

SPRING

25

6515078

POPPET

26

6565701

ELBOW

27

14K7

TEE

28

6567419

HOSE

29

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18567

30

6532179

ELBOW W/Ref. 31

31

79K10

O RING 10

32

6565717

TUBE

33

77F7

ELBOW

34

6567313

TUBE

35

15K5

FITTING W/Ref. 14

36

6567026

HOSE

37

17KB1012

FITTING, HYD ELBOW W/Ref. 38 - Was 1302104B - A

38

79K16

O RING 10

39

PUMP See Illustration HYDROSTATIC PUMP/ B20194

40

6565630

ELBOW W/Ref. 31

41

6563922

SNUBBER

42

6671062

SWITCH hydro. pressure - Was 6664577 - A

43

35C840

BOLT

44

6560899

WASHER

45

6562697

MOUNT

46

6560633

DAMPENER rubber

47

6564692

WASHER

48

85D8

NUT, 5

49

17C824

BOLT 5

50

6704179

BRACKET

51

1518597

HYD HOSE

52

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527
