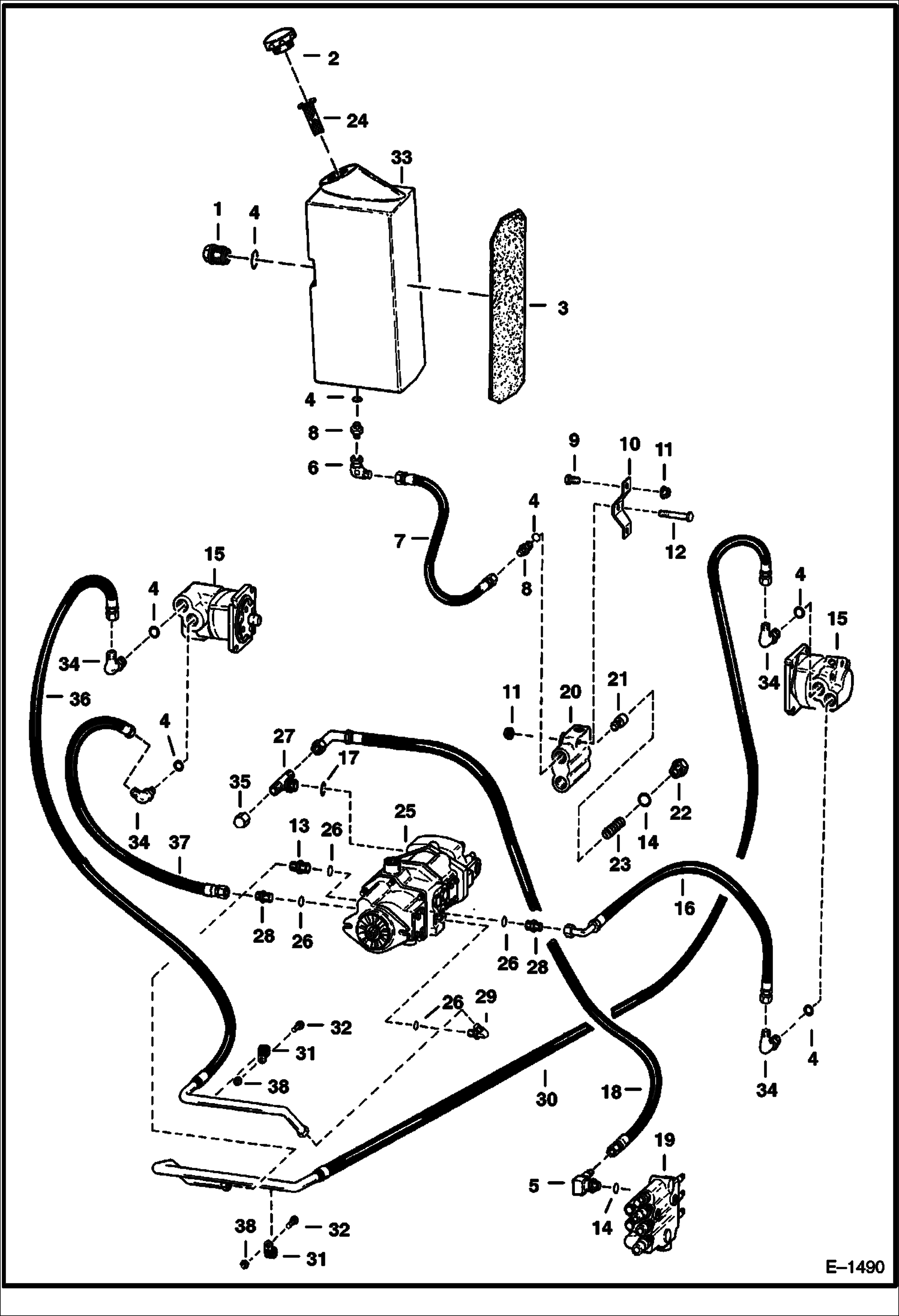

Запчасти Bobcat 600s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6665915

GAUGE sight - Was 6656338 - A

2

6727475

CAP, OIL HYD Qty. of 1 - Was 6577785 - A

3

6565012

INSULATION

4

79K12

O RING 10

5

6532179

ELBOW W/Ref. 14

6

11K8

ELBOW W/Ref. 8

7

6565572

HOSE

8

15K8

FITTING W/Ref. 4

9

35C616

BOLT 5

10

6569580

BRACKET Use W/7C000640B bolt

11

83D6

NUT 5

12

7C640

BOLT carriage

13

15K10

ADAPTOR W/Ref. 26

14

79K10

O RING 10

15

MOTOR See Illustration HYDROSTATIC MOTOR/ D1928

16

6704316

HOSE

17

79K8

O RING 10

18

6704270

HOSE 29'' (737 mm) long - for pump 6648323

18

6705891

HOSE 17.5'' (445 mm) long - for pump 6662894

19

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18567

20

6565748

BLOCK port

21

6565620

POPPET

22

6561811

PLUG W/Ref. 14

23

6562691

SPRING

24

7120881

SCREEN, FILLER Was 6569219 - A

25

PUMP See Illustration HYDROSTATIC PUMP/ B20194

26

79K16

O RING 10

27

19K6

FITTING W/Ref. 17

28

15KB1216

FITTING, HYD CONNECTOR W/Ref. 26 - Was 712555B - A

29

17K10

FITTING W/Ref. 26

30

6704629

HOSE assy

31

30H49

CLAMP

32

17C416

BOLT

33

6569220

TANK nylon

34

18K8

FTG W/Ref. 14

35

36K6

CAP

36

6704628

HOSE assy

37

6704315

HOSE

38

85D4

NUT 5
