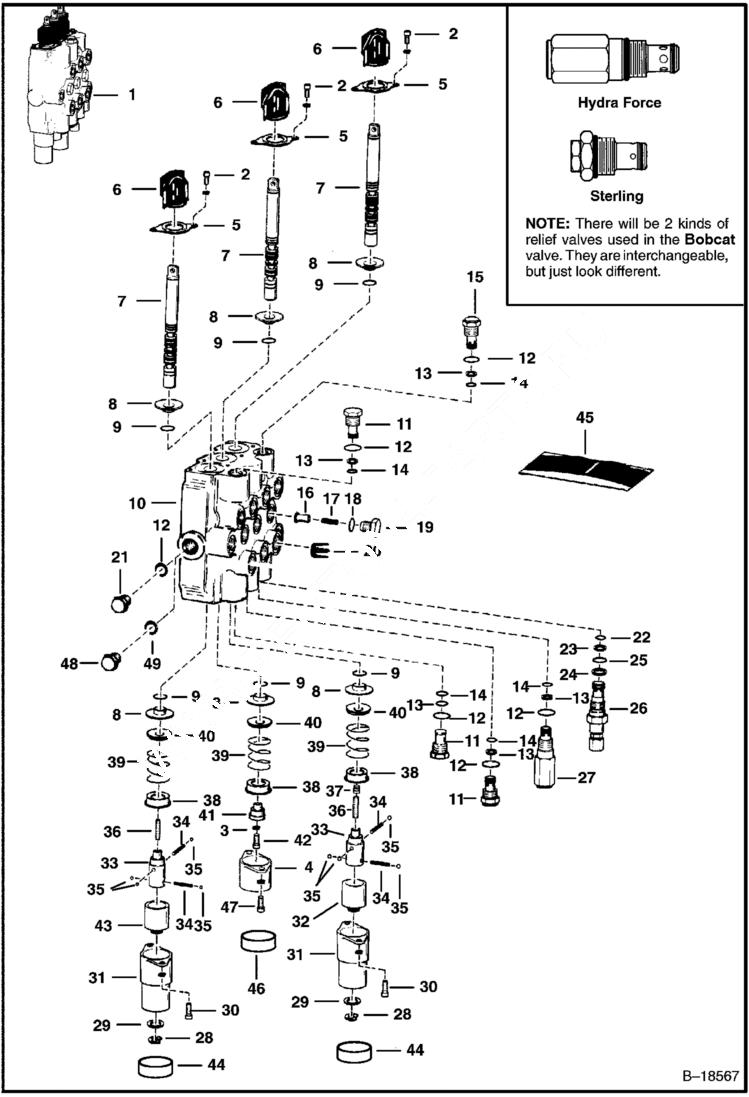

Запчасти Bobcat 600s HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2403 NLA - REF. 2-45 - BEFORE ORDERING REPAIR PARTS, MAKE SURE THIS IS THE CORRECT STYLE VALVE. VALVE SHOWN HERE USES STAMPED BOOT RETAINERS, WHICH FIT

1

SHORT BLOCK NLA - Order Ref. 1

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

BONNET NLA - W/.25'' Flange - Order 6587633 , 6662848 & 2 of 6588164

4

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - C

5

6592123

RETAINER

6

6583727

BOOT

7

SPOOL NSS

8

6538466

BUSHING

9

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

10

BODY NSS

11

6592720

PLUG W/Ref. 12-14

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required

14

6677106

O-RING back-up washer not required

15

6667549

VALVE anti-cavitation - W/Ref. 12-14 - Was 6661345 - D

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT load check

20

6587304

ORIFICE

21

47K7

PLUG .875 - 14 - W/Ref. 12

22

O-RING NSS

23

WASHER NSS - back-up

24

O-RING NSS

25

WASHER NSS - back-up

26

RELIEF VALVE NLA - main - W/Ref. 22-25 - press. preset at factory - Was 6676199 - A

26

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

27

6599161

RELIEF VALVE W/Ref. 12-14 - See Note

28

799119

RING

29

6592098

WASHER

30

6588163

SCREW 7/8''

30

29G416

BOLT 1'' - Was 6588982 - A

31

BONNET NLA - W/.25 Flange - Order 6589226 , 6631704 & 2 of 6588982

31

6589226

COVER, END 0.63'' flange

32

6592096

SLEEVE lift

33

6587575

ADAPTER

34

6592107

SPRING

35

6592105

BALL

36

6586918

SCREW

37

PLUG NLA - plastic- order 6596807 Plug & 54K020002B O-Ring - Was 6592752 - A

37

6596807

PLUG plastic - 0.46'' long

37

54K20002

O'RING 10

38

6592100

COLLAR

39

6592106

SPRING

40

7211397

WASHER, SPRING Was 6587523 - A

41

6592109

ADAPTER

42

6588166

SCREW Was 74G000416B - A

43

6593349

SLEEVE

44

6660644

CAP

45

6816251

KIT, SEAL See BTI374 - Ref. 9, 12-14, 18, 22-25 & 37 - Was 6803606 - A

45

6816250

KIT, SEAL See BTI374 - Ref. 2, 6, 9, 30 & 37 - for one spool - Was 6803605 - A

45

6661328

SEAL KIT main relief - Ref. 22-25

45

6809425

SEAL KIT Upper Deck - Ref. 12-14 & 18 - Was 6586461 - A

46

6662848

CAP Use with 6587633 bonnet

47

69G414

BOLT Was 6588164 - A

48

47K9

PLUG 1.187 - 12 - W/Ref. 49

49

79K14

O RING 10
