Запчасти Bobcat 600s AUXILIARY HYDRAULICS (Front Aux) HYDRAULIC SYSTEM

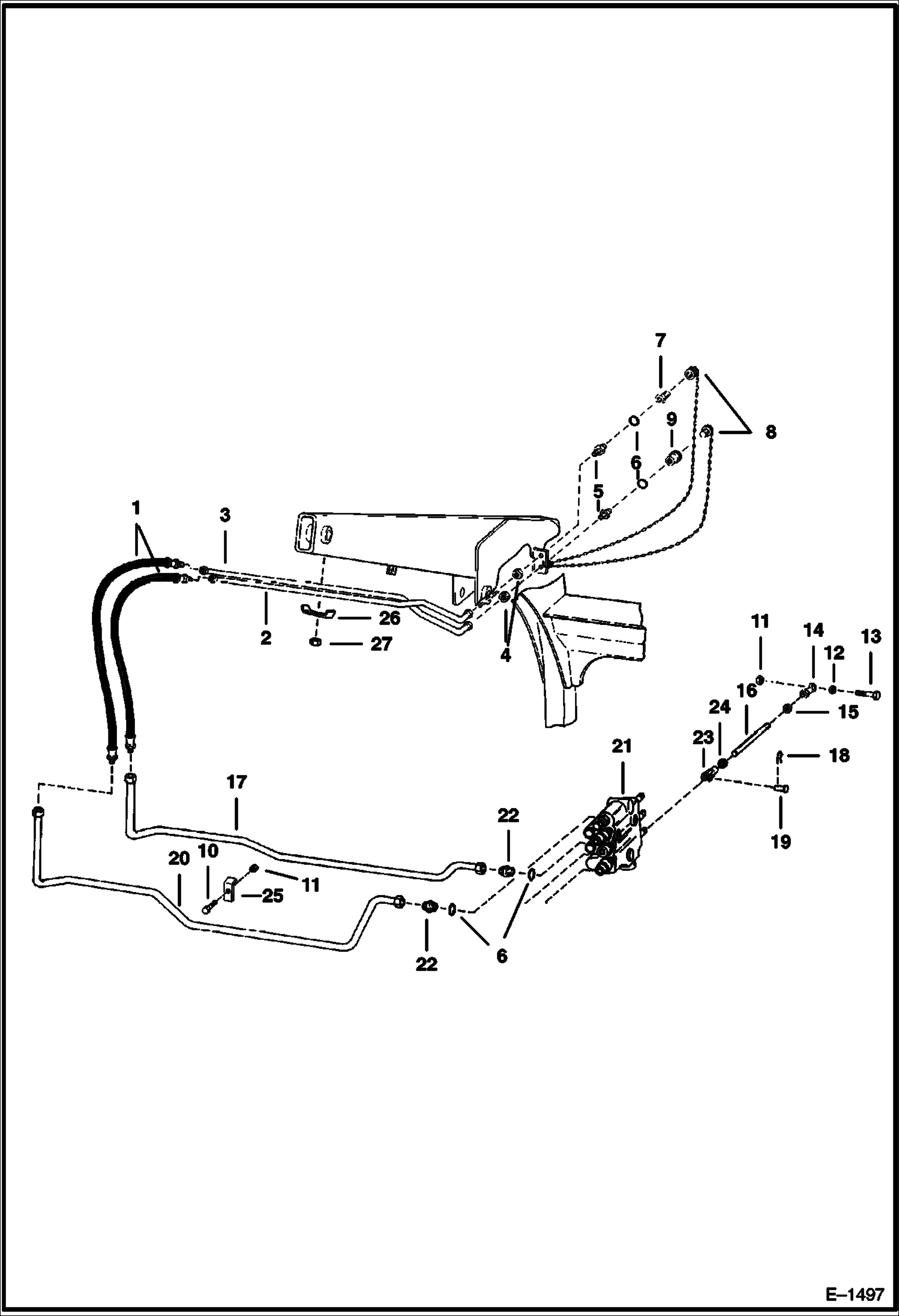

Схема запчастей Bobcat 600s - AUXILIARY HYDRAULICS (Front Aux) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6559199

HOSE

2

6558414

TUBE

3

6558415

TUBE Was 6707041 - A

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6

6

79K10

O RING 10

7

6598757

COUPLER, POPPET MALE straight

8

6513709

CAP PLUG assy - Rubber

8

6515167

PLUG Steel

8

6515168

CAP Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

10

17C624

BOLT 5

11

85D6

NUT, 5

12

6564535

SPACER

13

17C620

BOLT

14

6512955

SWIVEL L.H. threads

15

13D6

NUT

16

6557090

ROD

17

6569593

TUBE

18

6513495

COTTER PIN

19

6564654

PIN

20

6569592

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18567 BOBCAT

22

15K7

FITTING W/Ref. 6

23

6564655

CLEVIS

24

8D6

NUT 5

25

31H38

CLAMP

26

6502203

CLAMP

27

59D6

NUT
