Запчасти Bobcat 600s MOTOR CARRIER (Drive Motor Mount Assy) DRIVE TRAIN

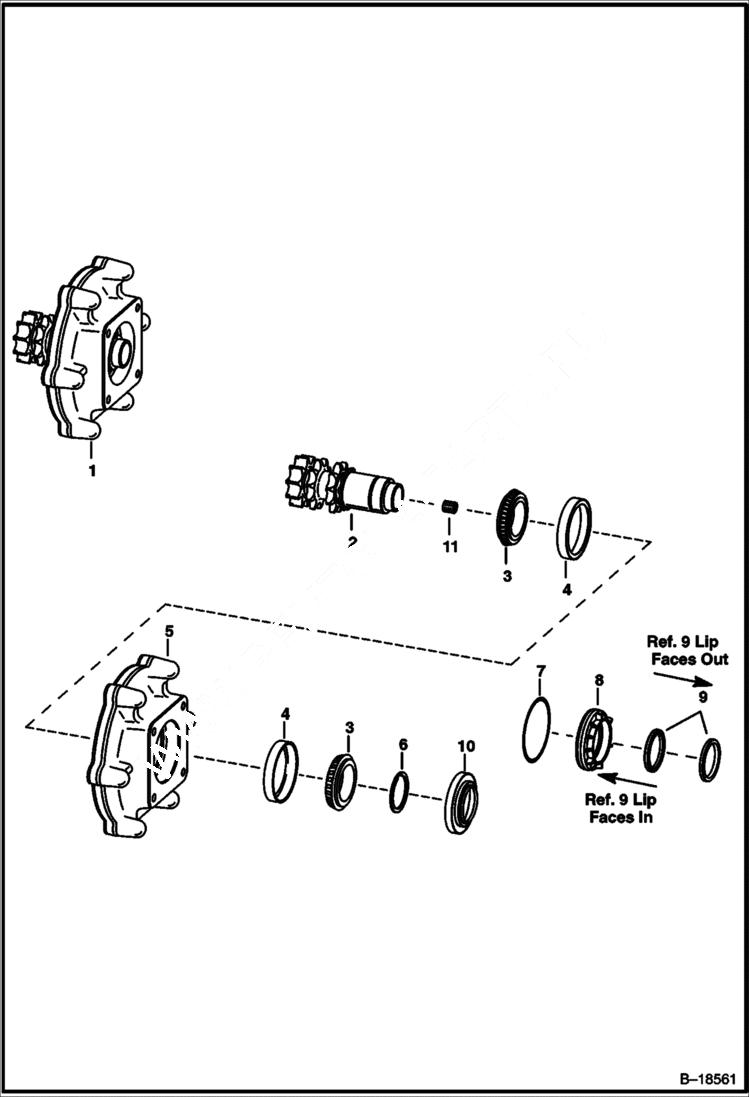

Схема запчастей Bobcat 600s - MOTOR CARRIER (Drive Motor Mount Assy) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

MOUNT ASSY. NLA - drive motor - Ref. 2-11 - Order components - Was 6705288 - B,D

2

6705065

SHAFT, TRANS W/snap ring groove

3

6632218

CONE, BEARING

4

6632541

RACE

5

6704491

HOUSING Was 6704492 - D

6

6571851

SNAP RING 0.118'' thickness - Was 6578527 - A

6

6571852

SNAP RING 0.125'' thickness

7

O-RING NLA - Order Ref. 10 - Was 25K040412B - B

8

SEAL ADAPTER NLA - plastic - Order Ref. 10 - Was 6703186 - A

9

SEAL NLA - bond W/Ref. 11 - O.D. - Order Ref. 10 - Was 6652528 - A

10

6705847

SEAL, OIL

11

PLUG NSS - Was 16F000006B - B,D
