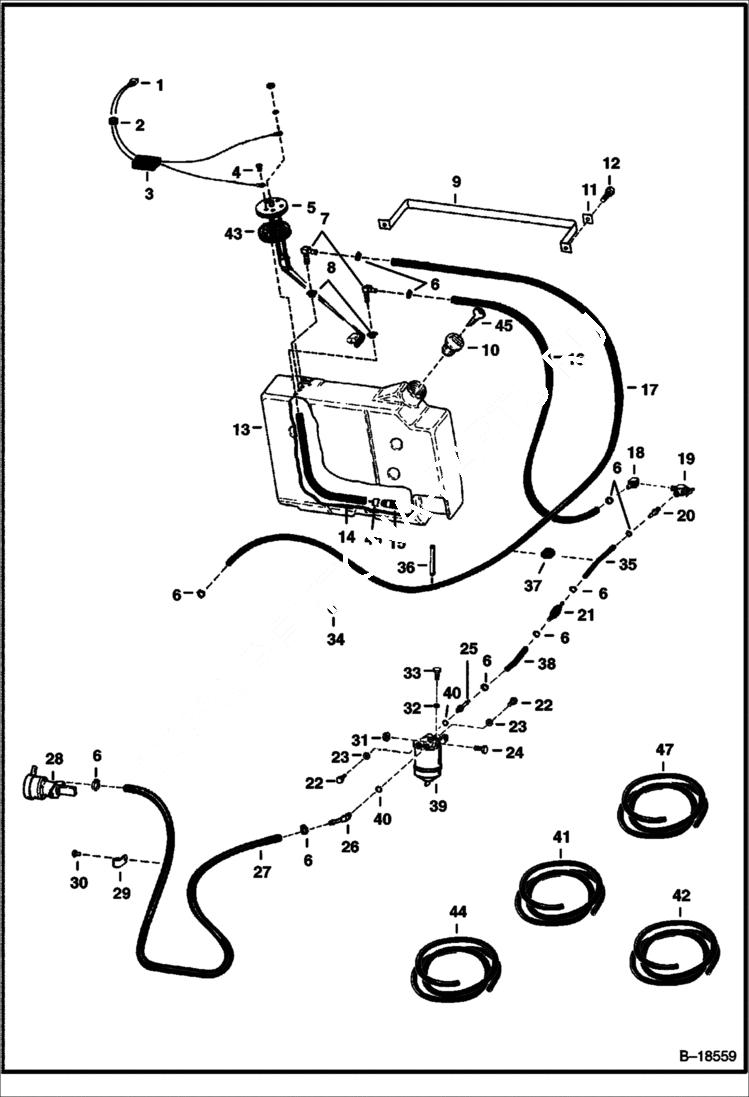

Запчасти Bobcat 600s FUEL SYSTEM MAIN FRAME

1

6560117

WIRE

2

742876

GROMMET

3

SEAL NLA - 3'' (76 mm) - Order Ref. 47

4

87G1010

SCREW

5

6568175

SENDER, FUEL

6

42HS04

CLAMP, HOSE Was 6515575 - A

7

6598908

ELBOW

8

6553411

BUSHING 0.38'' ID

9

6562559

BAND

10

6661114

CAP. DIESEL green

10

6661696

CAP, FUEL LOCKING locking - W/Ref. 45 - Was 6654373 - A

11

6559447

WASHER

12

84G3720

BOLT

13

6567909

TANK

14

HOSE NLA - 21'' (533mm) - Order Ref. 44

15

6650239

SCREEN, FUEL PICKUP

16

HOSE NLA - 35'' (889 mm) - Order Ref. 41

17

HOSE NLA - 58'' (1473 mm) - Order Ref. 42

18

6598753

ELBOW

19

6632593

VALVE shut-off

20

6505813

CONNECTOR Use W/barbless fuel valve

21

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

22

6515682

PLUG

23

6515466

WASHER sealing

24

17C616

BOLT 5

25

6560355

FITTING

26

ELBOW NLA - W/Ref. 40 - flat boss face - Was 6657083 - A

26

6715183

ELBOW W/Ref. 40 - check boss face to determine correct replacement o-ring

27

HOSE NLA - 49'' (1245 mm) - Order Ref. 41

28

FUEL PUMP See Illustration INJECTION PUMP/ B3612

29

30H36

CLIP

30

6CM1220

BOLT

31

57D6

NUT 5

32

6515468

WASHER sealing

33

6515676

PLUG

34

30H29

CLAMP

35

HOSE NLA - 6'' (152 mm) - Order Ref. 42

36

6513471

CLAMP

37

6515603

GROMMET

38

HOSE NLA - 2'' (51 mm) - Order Ref. 42

39

FILTER See Illustration FUEL FILTER/ B5653

40

79K5

O RING 10 flat boss face

40

99K5

O-RING tapered boss face

41

6577822

HOSE bulk - sold per foot

42

6577821

HOSE bulk - sold per foot

43

6630972

GASKET

44

6569752

HOSE BULK/FT bulk - sold per foot

45

6654374

KEY Set of 2

46

6661213

RING, COMPRESSION

47

6513152

SEAL bulk - sold per foot
