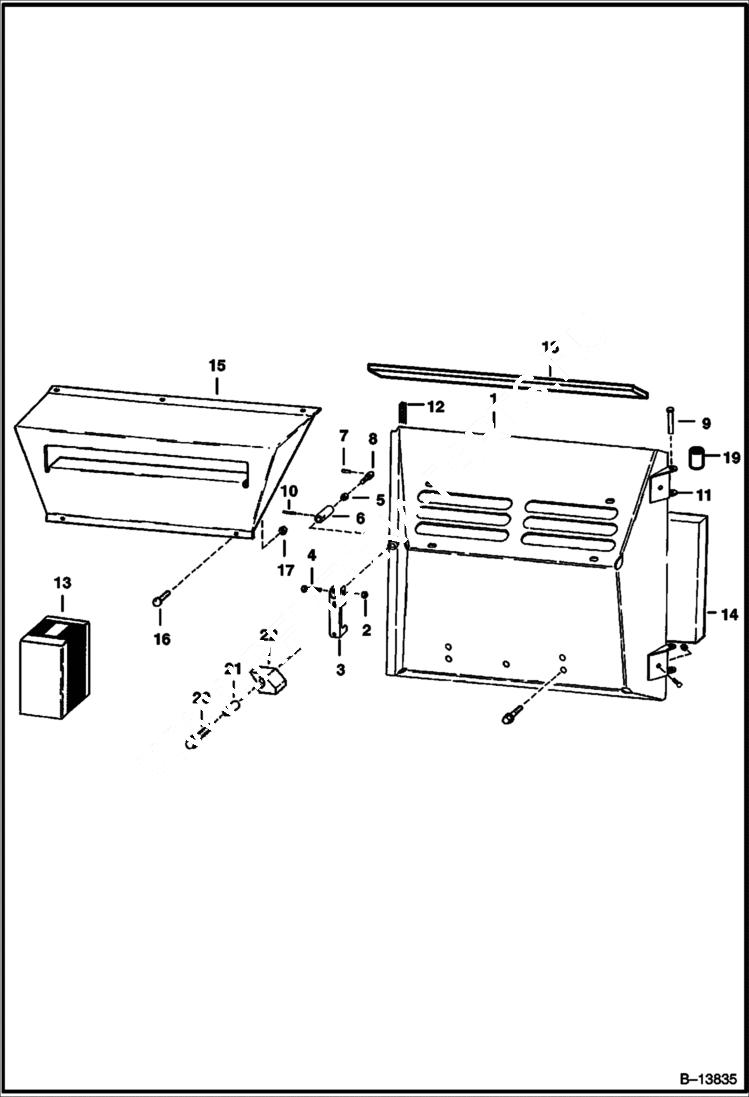

Запчасти Bobcat 600s REAR DOOR MAIN FRAME

1

6704328

REAR DOOR

2

85D5

NUT 5

3

6563681

HANDLE

4

38C624

BOLT 5 Was 6564599 - B

5

6565627

NUT

6

6565628

NUT

7

6599361

PIN

8

6565629

SCREW

9

6564340

PIN

10

33G404

SET SCRW5

11

6562225

HINGE See BTI166 See BTI191

12

SEAL NLA - rear door - bulk - sold per foot - Was 6632217 - A

13

6579448

LATCH KIT Ref. 2-8 & 10

14

6577264

INSULATION

15

6579562

SHIELD

16

10C616

BOLT 10

17

81D6

NUT

18

6579420

INSULATION

19

6562225

HINGE

20

84G3724

BOLT

21

6563612

BUSHING

22

6577712

STOP
