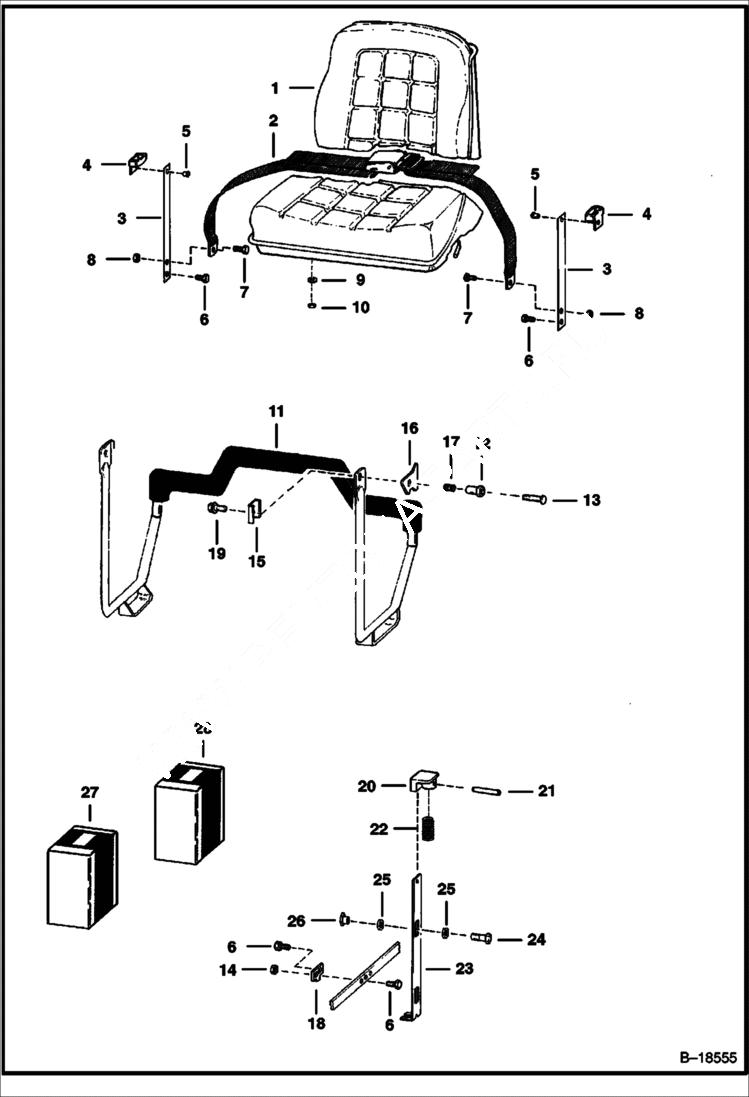

Запчасти Bobcat 600s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SUSPENSION SEAT/ D1897

2

SEAT BELT NLA - Order 6713061 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plates) - Was 6667875 - A

2

SEAT BELT NLA - w/spring plates - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plates) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY NLA - W/Ref. 4 & 5 - 13.75'' used W/NLA 6564774 seat belt - Was 6565354 - A

3

GUIDE ASSY NLA - W/Ref. 4 & 5 - 12.25'' used W/NLA 6667875 seat belt - Order 6711908 spring plate, Ref. 4 & (2) of Ref. 5 - Was 6711907 - A

3

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 seat belt)

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5 Was 6512797 - A

6

84G3712

BOLT 5

7

17C716

BOLT

8

85D7

NUT

9

4E5

WASHER

10

61D5

NUT

11

6706324

SEAT BAR See Illustration SEAT BAR KIT/ C3341 For gas spring seat bar kit See Ill. C-3341 - Was 6703301 - A

12

6568742

BUSHING

13

17C612

BOLT 5

14

83D6

NUT 5

15

6563557

WASHER

16

6563313

RETAINER

17

6704453

SPRING

18

6563151

LINK

19

17C608

BOLT

20

6563148

BLOCK, SPRING

21

14J2512

PIN 5

22

6702430

SPRING, COMPRESSION

23

6563150

LOCK

24

17C612

BOLT 5

25

6700170

WASHER nylon

26

6559479

NUT

27

6706796

KIT See Illustration SEAT BAR KIT/ C3341 GAS SPRING SEAT BAR

28

KIT NLA - W/Ref. 2 & 3 - Order Ref. 2 - Was 6713061 - A
