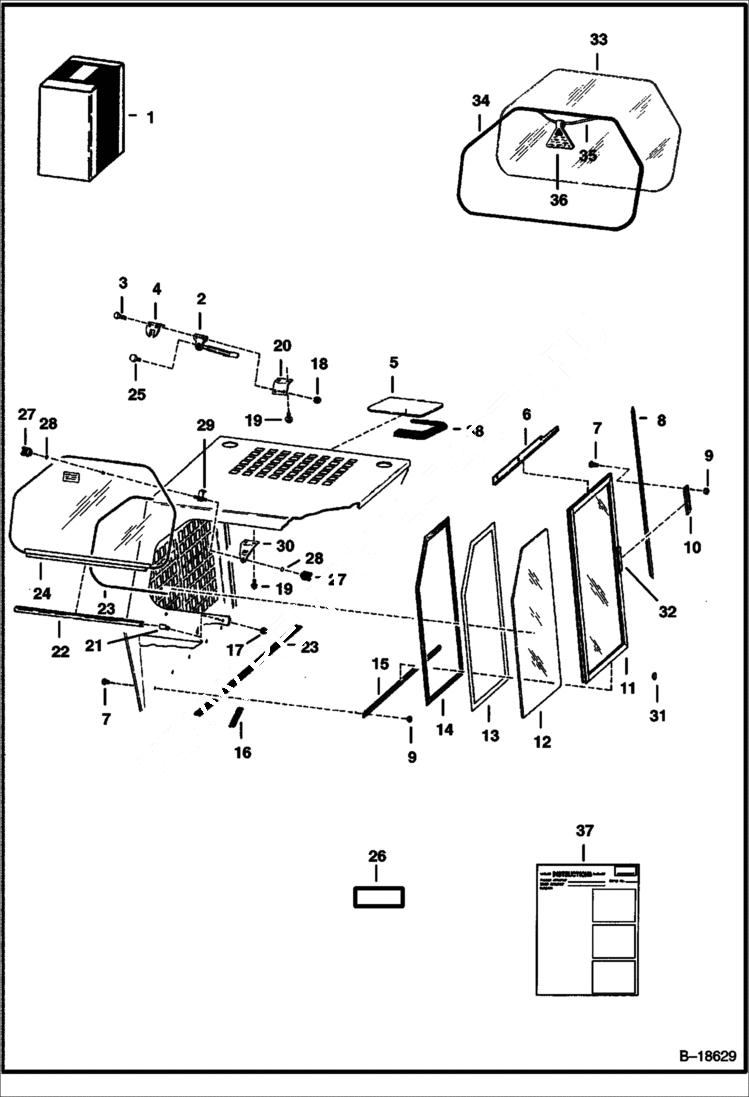

Запчасти Bobcat 600s CAB WINDOWS ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 5-16, 31-37

2

6630929

LATCH W/Ref. 25 - Old style latch can be replaced by new style latch, Order Ref. 27-30

3

85G1014

SCREW

4

CLIP NLA - Order Ref. 27-30

5

6701986

WINDOW square

5

6705735

WINDOW oval

6

6703159

TRACK RH

6

6703160

TRACK LH

7

35C410

BOLT 5

8

6630918

TRACK L.H.

8

6630919

TRACK R.H.

9

83D4

NUT 10

10

6630924

BRACKET

11

6658143

WINDOW LH - Was 6630922 - A

11

6658142

WINDOW RH - Was 6630923 - A

12

6702731

WINDOW, CAB Was 6567750 - A

13

6631548

LOOP loop

14

6631549

HOOK hook

15

6661689

TRACK LH - Was 6630916 - A

15

6661690

TRACK RH - Was 6630917 - A

16

6513152

SEAL bulk - sold per foot

17

59D4

NUT 5

18

50D10

LOCKNUT

19

84G3112

BOLT 5

20

6568540

MOUNT

21

6576513

BOLT

22

6630926

HINGE

23

6555351

SEAL bulk - sold per foot

24

6630925

WINDOW

25

KNOB NLA - Was 6631665 - A

26

6631625

DECAL For Old Style Latch - Ref. 2

27

6571529

KNOB

28

58K109

O RING 10

29

6571532

BRACKET

30

6571533

MOUNT

31

6632265

PLUG button

32

6659949

LATCH

33

6704891

WINDOW

34

6658352

MOULDING bulk - sold per foot

35

6554149

CORD, BULK/FT bulk - sold per foot - Also Order Ref. 36 (6731478 exit tag)

36

6731478

EXIT TAG Was 6559515 - A

37

6566957

INSTRUCTIONS Side Window

37

6566955

INSTRUCTIONS Rear Window

38

6664351

SEAL Use W/cab headliner & Ref. 5 (6705735 window)

38

6665012

SEAL Use W/O cab headliner & Ref. 5 (6705735 window)
