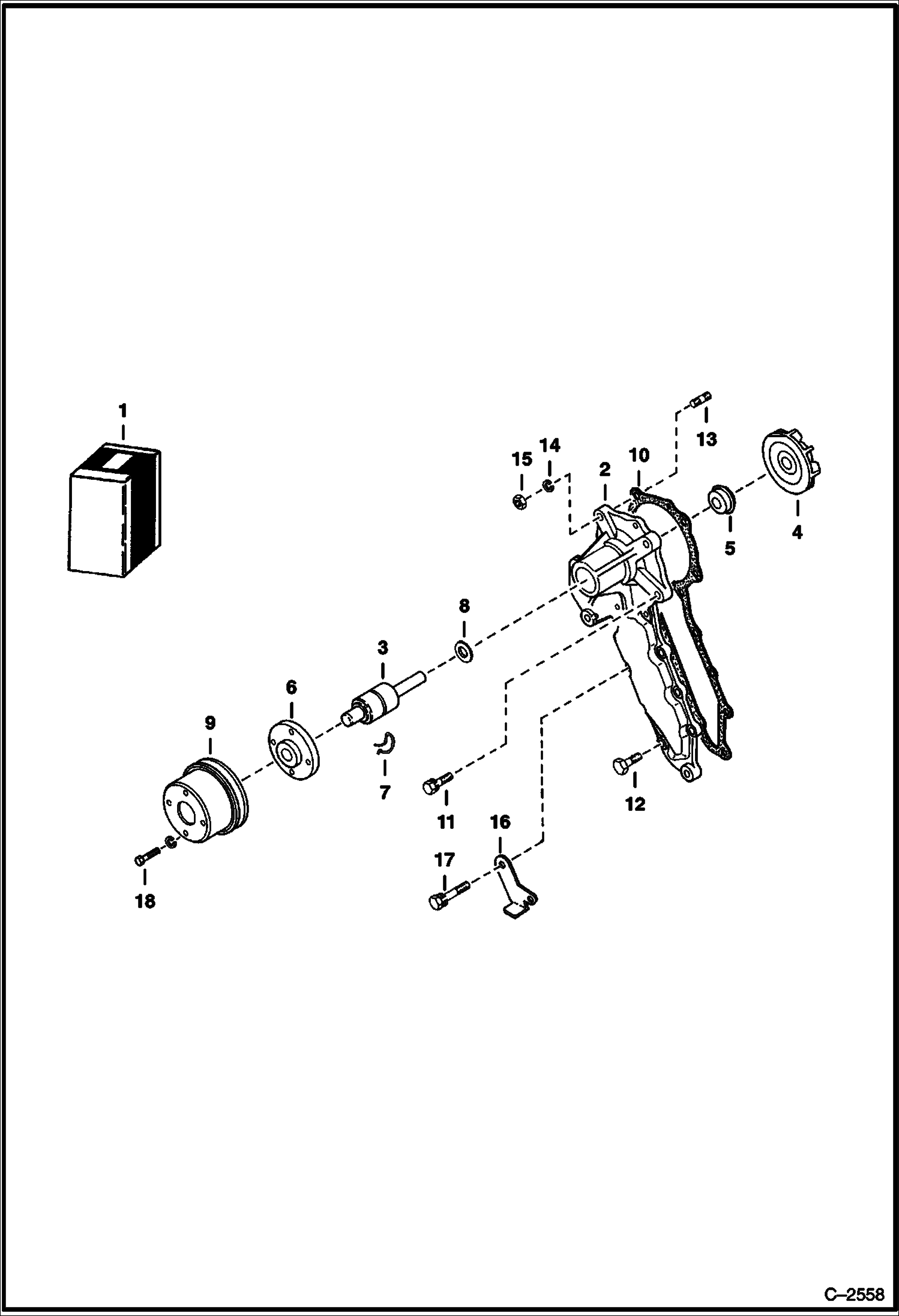

Запчасти Bobcat 600s WATER PUMP POWER UNIT

1

6684225

WATER PUMP Ref. 2-8 - Was 6653941 - A

2

BODY NSS

3

3974991

BEARING

4

6653944

IMPELLER water pump - Was 3974683 - A

4

6653944

IMPELLER Was 6653577 - A

4

6667460

IMPELLER for 1 piece seal

5

6653945

SET SEAL Was 3974684B - A

5

6653945

SET SEAL 2 piece - Was 6653576 - A

5

6667465

SEAL 1 piece

6

3974992

FLANGE

7

3974993

PIN

8

6598108

SLINGER Was 3974688B - A

9

6674169

PULLEY water pump - Was 6598155 - A

10

6666804

GASKET In 6630553 Gasket Kit - Was 3974995B - A

11

4CM828

BOLT

12

4CM618

BOLT

13

3974267

STUD

14

6EM60

WASHER, SPRING spring

15

1DM8

NUT Was 25DM00008B - A

16

6598185

INDICATOR timing

17

1CM620

BOLT Was 4CM620 - A

18

29CM612

BOLT, FLANGED Was 6652762 - A
