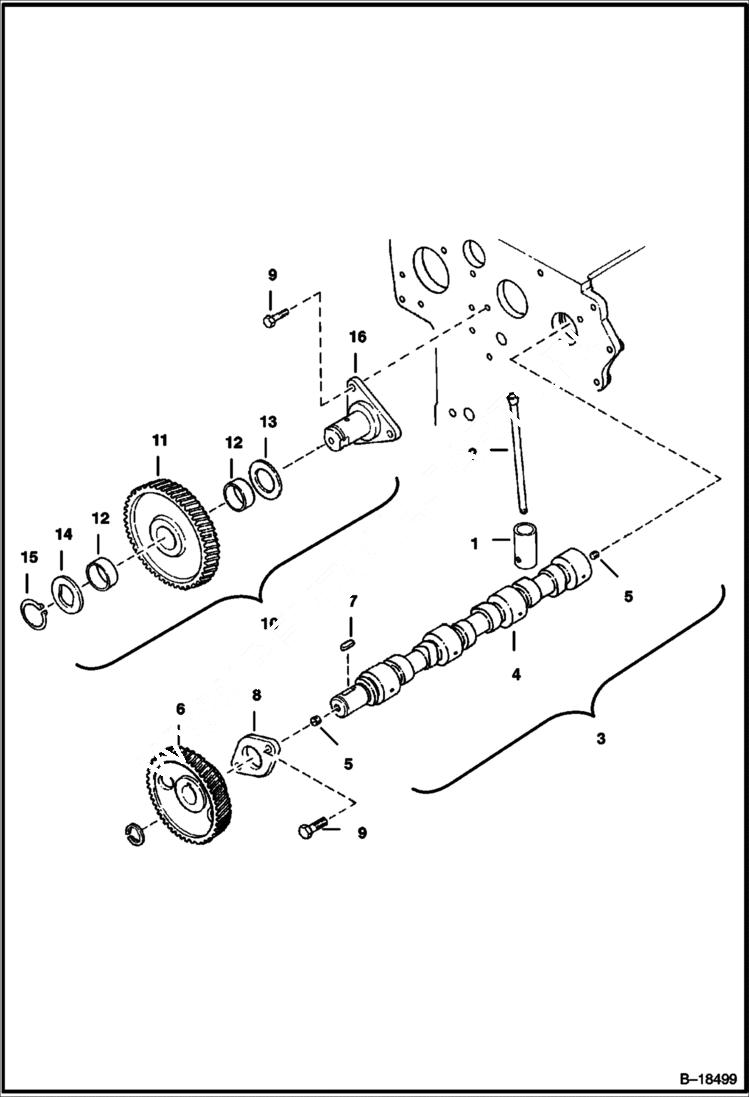

Запчасти Bobcat 600s CAMSHAFT POWER UNIT

1

7015269

TAPPET Was 6667428 - A

2

3974541

PUSH ROD

3

6653837

CAMSHAFT assy. - Ref. 4-8 - Was 6598710 - A

4

CAMSHAFT NSS

5

6653839

SCREW Was 6598168 - A

6

6653840

GEAR Was 6598159 - A

7

3974546

KEY feather

8

3974547

STOPPER

9

1CM818

BOLT Was 4CM818 - A

10

3974550

GEAR idle Ref. 11 & 12

11

IDLER GEAR NSS

12

BUSHING NSS

13

3974934

COLLAR

14

3974554

COLLAR Was 6655504 - A

15

5JM26

CIR-CLIP external - Was 5JM00028B - A

16

3974556

SHAFT idle gear
