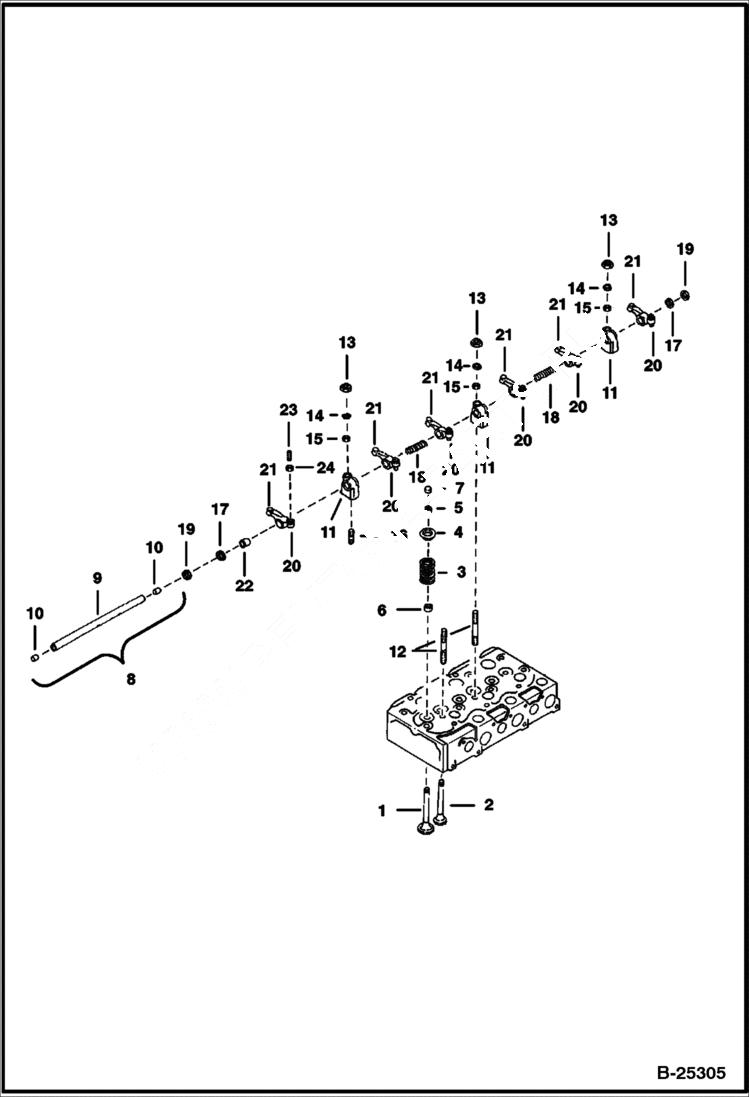

Запчасти Bobcat 600s ROCKER ARM & VALVES POWER UNIT

1

6653828

VALVE intake - Was 3974512B - A

2

6653829

VALVE exhaust - Was 3974513B - A

3

3974514

SPRING 5

4

3974515

RETAINER

5

6684874

COLLAR valve spring - set of 2 - Was 3974516B - A

6

6653830

SEAL, STEM VALVE In 6630552 Gasket Kit - Was 3974517B - A

7

3974518

CAP

8

SHAFT ASSY - NAP Rocker arm Order Ref. 9 & 10

9

3975009

SHAFT rocker arm - Also Order (2) 5CM812 bolt, (2) 6667451 plain washer, (2) 6667422 spring washer, (1) 6667461 spring pin and (2) 3974524 washer

10

25GM8010

SCREW

11

3974521

MOUNT

12

6653832

STUD Was 3974918B - A

13

1DM8

NUT Was 25DM00008B - A

14

6EM80

WASHER, SPRING

15

1EM80

WASHER

16

3974523

SCREW

17

3974524

WASHER

18

6653833

SPRING Was 3974525B - A

19

5JM14

SNAP RING

20

6655870

ROCKER ARM rocker - W/Ref. 21-24 - Was 3975438B - A

21

ROCKER ARM NSS

22

3974528

BUSHING

23

3974920

SCREW

24

2DM8

NUT
