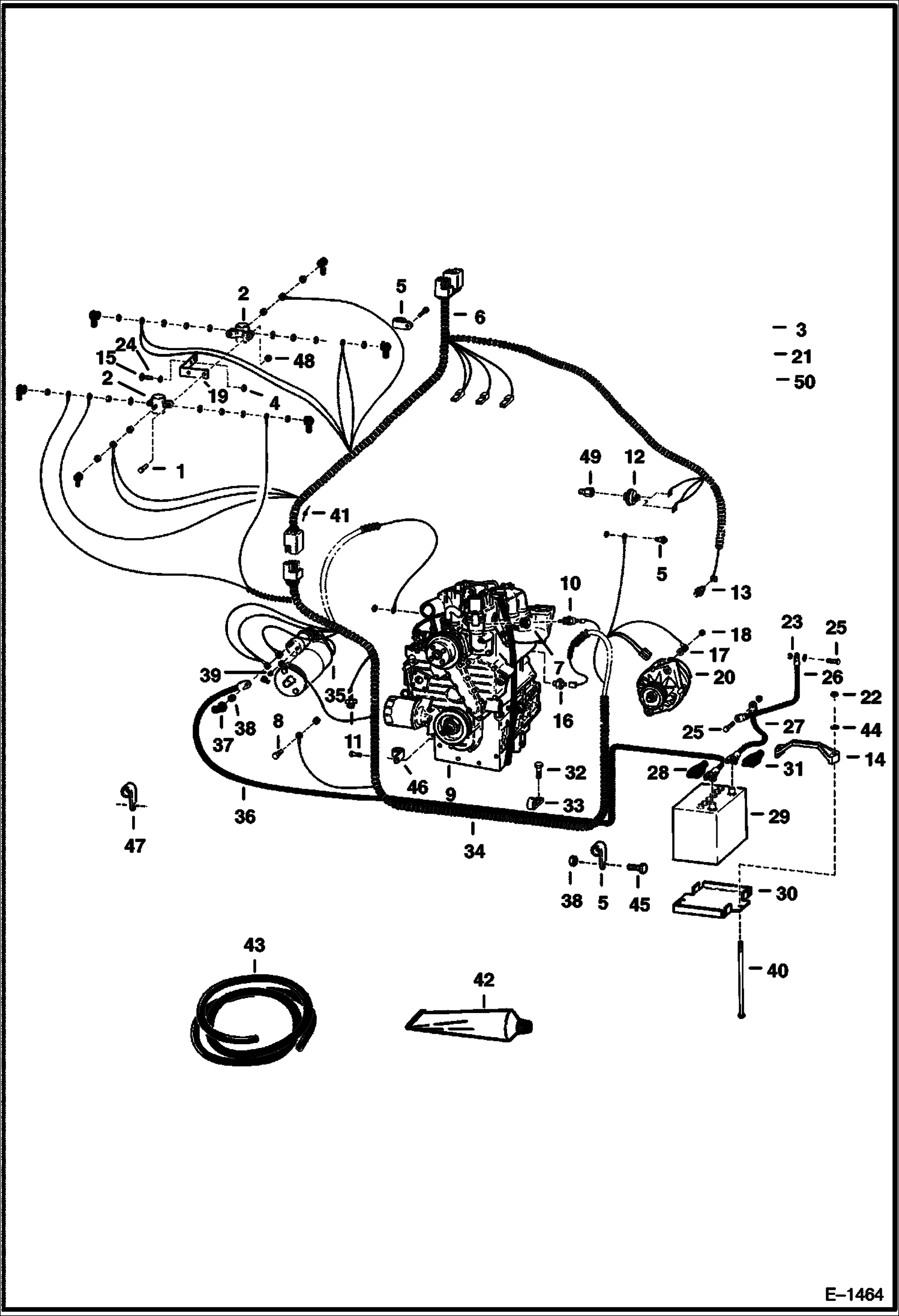

Запчасти Bobcat 600s ENGINE ELECTRICAL CIRCUITRY (S/N 13001 Thru 25013) ELECTRICAL SYSTEM

1

17C412

BOLT 5

2

6659319

SOLENOID Was 6632186 - A

3

6599701

CLAMP

4

61D5

NUT

5

30H42

CLAMP

6

6564908

HARNESS chassis

6

6565639

HARNESS

7

19F4

BUSHING Use W/ Ref. 10 if engine has 1/2'' hole for temp. switch

8

17C610

BOLT

9

ENGINE See Illustration ENGINE/ B18477

10

SWITCH See BTI259 NLA - engine temp. 1/8'' threads - See Ref. 7 - Was 6599492 - A

10

6658818

SENDER See BTI259 eng temp - threaded connector

11

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 HYDRO. FILTER

12

6671062

SWITCH hydro. pressure - Was 6664577 - A

13

6632633

SWITCH hyd temp - Was 6564560 - A

14

6569203

CLAMP plastic

15

7C520

BOLT

16

6969775

SWITCH, OIL PRESSURE eng. oil pressure -Was 6652576 - A

17

6E4

WASHER 10

18

1DM6

NUT Use W/Delco Alternator - Was 4DM6 - A

19

6563483

BRACKET

20

ALTERNATOR See Illustration ALTERNATOR/ B18455

21

57D8

NUT 10

22

59D5

NUT 5

23

83D5

NUT 5

24

6E5

WASHER

25

17C512

BOLT 5

26

6563025

CABLE

27

6553094

CABLE Was 6562905 - A

28

2356058

BOOT

29

6665032

BATTERY, DRY 700 AMP Was 6665031 - A

29

6630153

BATTERY CAP

30

6561733

MOUNT

31

6599652

BOOT

32

31C820

BOLT

33

30H48

CLIP

34

6564909

HARNESS Use W/Delco Alternator

34

6567088

HARNESS Use W/Delco Alternator

34

6571535

HARNESS Use W/Bobcat Alternator

35

STARTER See Illustration STARTER/ B18466

36

6564991

CABLE W/Ref. 43

37

6560172

COVER

38

61D6

NUT 5

38

4DM10

NUT

39

12D8

NUT

39

4DM5

NUT

40

6569623

BOLT

41

3675725

DIODE

42

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

43

6563505

CONDUIT bulk Order Feet Required

44

25E15

WASHER

45

17C620

BOLT

46

30H29

CLAMP

47

30H30

CLAMP

48

61D4

NUT 5

49

6564350

SNUBBER

50

6563922

SNUBBER
