Запчасти Bobcat 600s HYDROSTATIC CIRCUITRY (S/N 24946 & Above) HYDROSTATIC SYSTEM

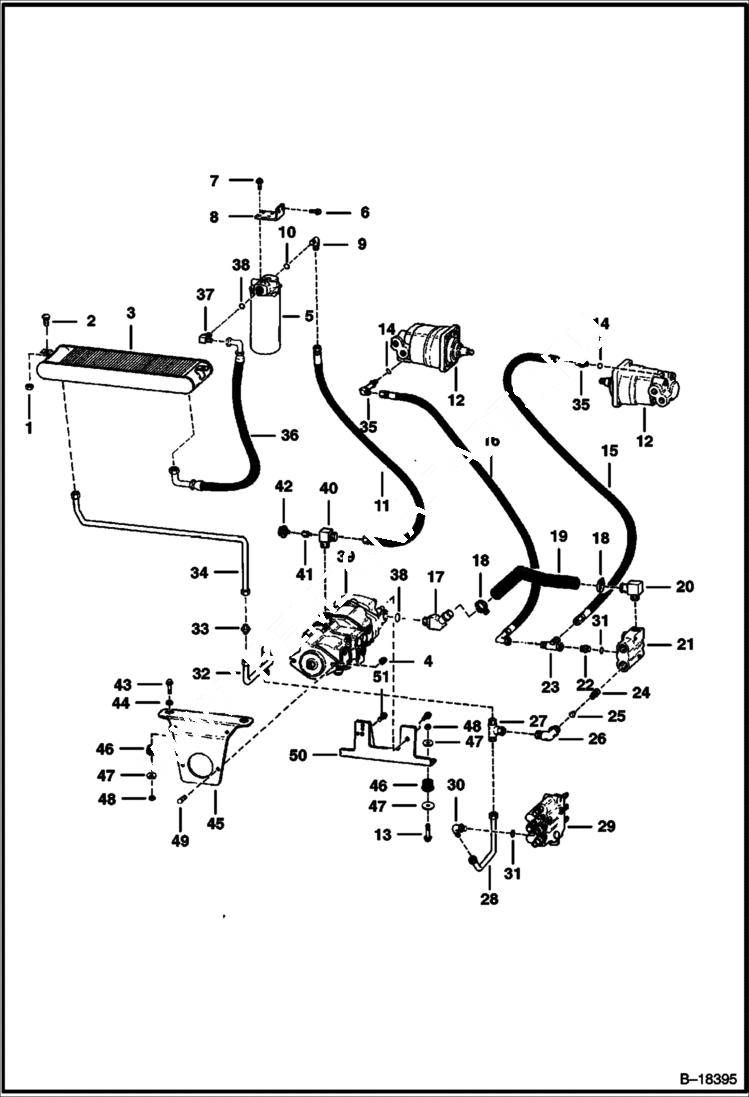

Схема запчастей Bobcat 600s - HYDROSTATIC CIRCUITRY (S/N 24946 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

83D6

NUT 5

2

37C616

BOLT Was 6514537 - A

3

OIL COOLER NLA - Was 6575655 - A

4

83D8

NUT 5

5

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ C2818

6

84G3712

BOLT 5

7

35C610

BOLT 5

8

6565336

BRACKET

9

17K8

FITTING W/Ref. 10

10

79K12

O RING 10

11

6702857

HOSE Was 2525543B - A

12

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678

13

17C836

BOLT

14

79K6

O RING 10

15

1518597

HYD HOSE

16

6564714

HOSE

17

6577888

ELBOW

18

44H20

CLAMP

19

6565344

HOSE

20

1321499

FITTING Was 6567884 - A

21

6565748

BLOCK port

22

731795

CONNECTR

23

13K5

TEE

24

6565425

SPRING

25

6515078

POPPET

26

6565701

ELBOW

27

14K7

TEE

28

6565337

TUBELINE

29

VALVE See Illustration HYDRAULIC VALVE/ E1572

30

17K7

ELBOW W/Ref. 31

31

79K10

O RING 10

32

6565717

TUBE

33

77F7

ELBOW

34

6575656

TUBE

35

6558510

ELBOW

36

6567026

HOSE

37

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

38

79K16

O RING 10

39

PUMP See Illustration HYDROSTATIC PUMP/ B18151

40

6565630

ELBOW

41

6563922

SNUBBER W/Filter

41

6563920

FILTER

42

6664577

SWITCH hyd. pressure - Was 6564801 - A

43

35C840

BOLT

44

6560899

WASHER

45

6562697

MOUNT

46

6560633

DAMPENER rubber

47

6564692

WASHER

48

85D8

NUT, 5

49

17C824

BOLT 5

50

6577493

BRACKET Was 6569553 - A

51

17C816

BOLT

Выбрано товаров: 52
