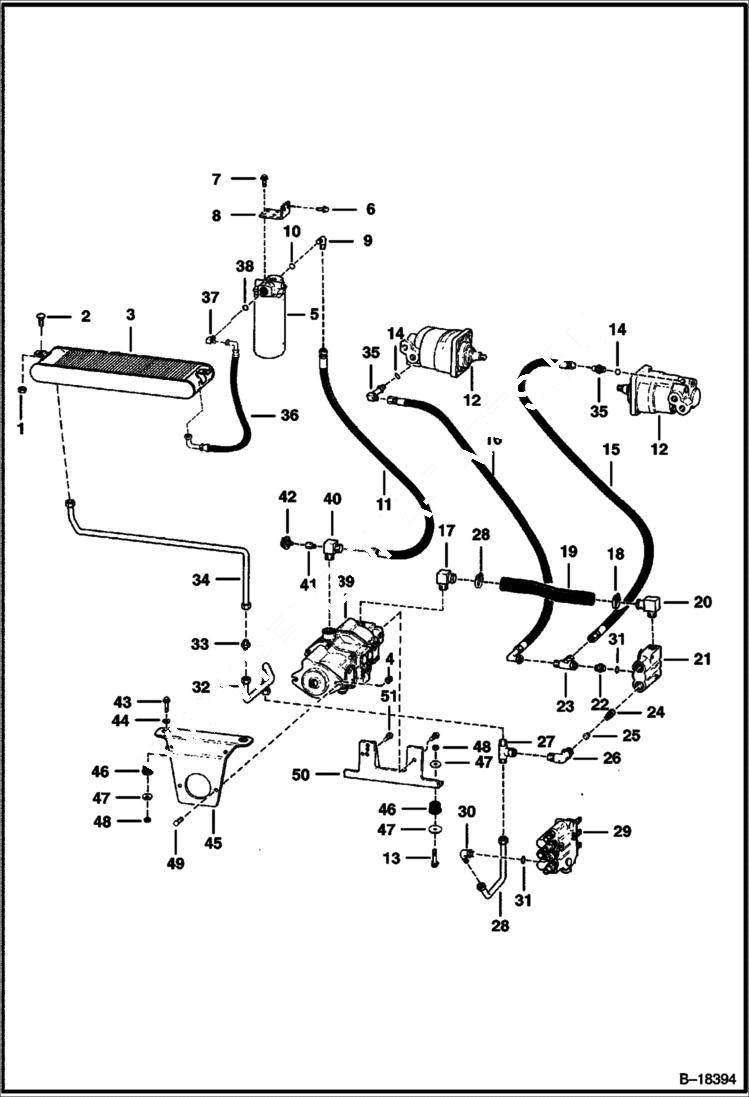

Запчасти Bobcat 600s HYDROSTATIC CIRCUITRY (S/N 13406 Thru 24945) HYDROSTATIC SYSTEM

1

83D6

NUT 5

2

37C616

BOLT Was 6514537 - A

3

6560954

OIL COOLER

3

6575655

OIL COOLER

4

83D8

NUT 5

5

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ C2818

6

84G3712

BOLT 5

7

35C610

BOLT 5

8

6565336

BRACKET

9

17K8

FITTING W/Ref. 10

10

79K12

O RING 10

11

6702857

HOSE Was 2525543B - A

12

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678

13

17C836

BOLT

14

79K6

O RING 10

15

1518597

HYD HOSE

16

6564714

HOSE

17

6567883

ELBOW Was 6577888 - A

18

44H20

CLAMP

19

6565344

HOSE

20

1321499

FITTING Was 6567884 - A

21

6565748

BLOCK port

22

731795

CONNECTR

23

13K5

TEE

24

6565425

SPRING

25

6515078

POPPET

26

6565701

ELBOW

27

14K7

TEE

28

6565337

TUBELINE

29

VALVE See Illustration HYDRAULIC VALVE/ E1572

30

17K7

ELBOW W/Ref. 31

31

79K10

O RING 10

32

6565717

TUBE

33

87F7

UNION

33

77F7

ELBOW

34

6565718

TUBE

34

6575656

TUBE

35

6558510

ELBOW

36

6565719

TUBE

36

6567299

TUBE

36

6567026

HOSE

37

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

38

79K16

O RING 10

39

PUMP See Illustration HYDROSTATIC PUMP/ B18151

40

6565630

ELBOW

41

6563922

SNUBBER W/Filter

41

6563920

FILTER

42

6664577

SWITCH hyd. pressure - Was 6564801 - A

43

35C840

BOLT

44

6560899

WASHER

45

6562697

MOUNT

46

6560633

DAMPENER rubber

47

6564692

WASHER

48

85D8

NUT, 5

49

17C824

BOLT 5

50

6569553

BRACKET See Illustration GEAR PUMP KIT/ C3177 WAS 6577493 - A

51

17C816

BOLT
