Запчасти Bobcat 600s HYDROSTATIC CIRCUITRY (S/N 13001 Thru 13405) HYDROSTATIC SYSTEM

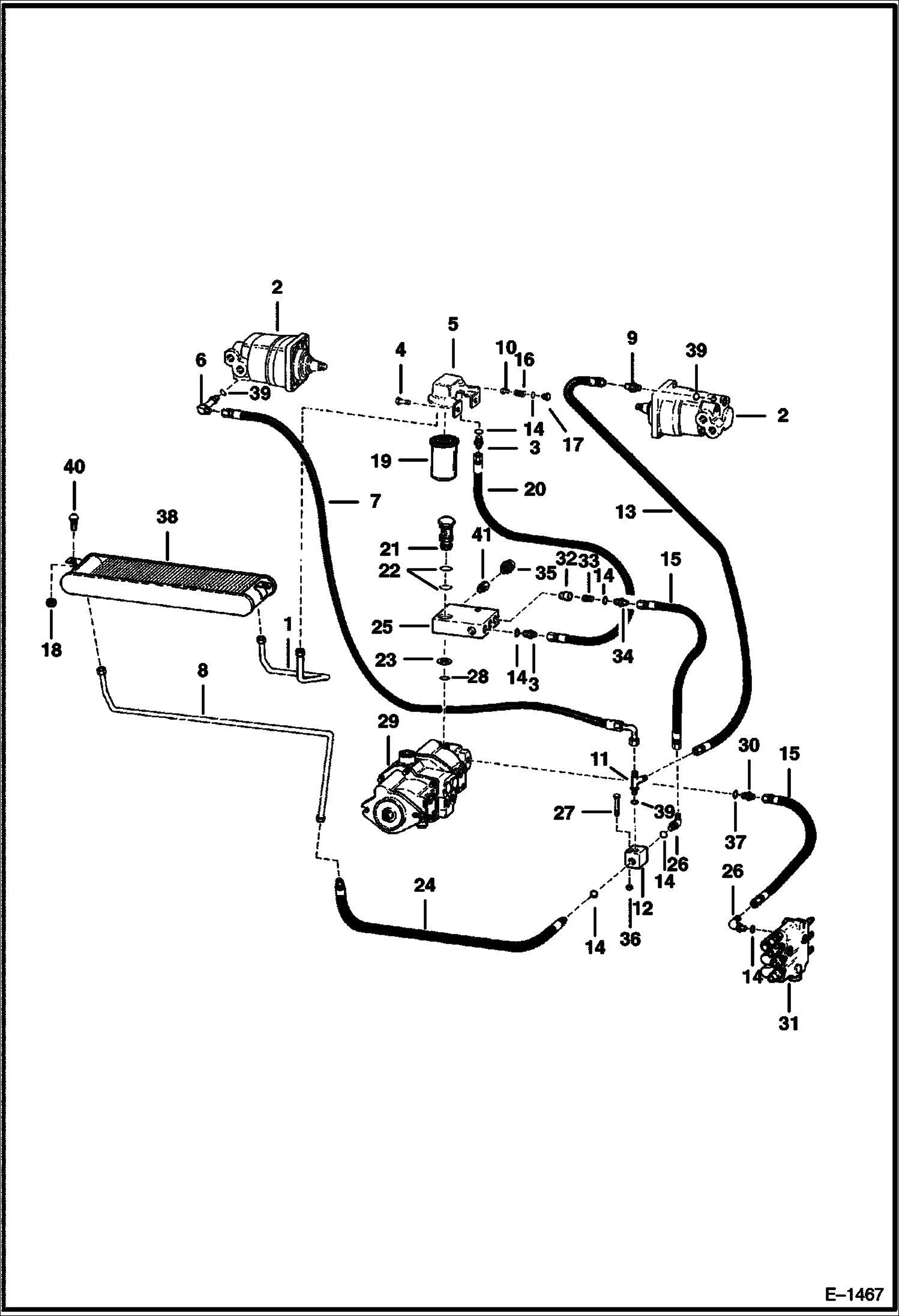

Схема запчастей Bobcat 600s - HYDROSTATIC CIRCUITRY (S/N 13001 Thru 13405) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

TUBE NLA - Was 6561333 - A

2

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678 HYDRO.

3

15K7

FITTING W/Ref. 14

4

84G3712

BOLT 5

5

FILTER HEAD NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

6

6558510

ELBOW W/Ref. 39

7

2337331

HOSE

8

6563676

TUBE

9

15K5

FITTING W/Ref. 39

10

6515078

POPPET

11

21K5

TEE W/Ref. 39

12

6564373

BLOCK

13

1518597

HYD HOSE

14

79K10

O RING 10

15

1317456

HOSE ASY

16

6553897

SPRING

17

6561811

PLUG W/Ref. 14

18

85D6

NUT, 5

19

6515541

ELEMENT

20

1524780

HOSE

21

6585546

BOLT hollow

22

1K127

O-RING 10 Was 93K127 - A

23

6562655

WASHER

24

6563684

HOSE

25

6564032

BLOCK

26

17K7

ELBOW W/Ref. 14

27

17C440

BOLT

28

79K16

O RING 10

29

PUMP See Illustration HYDROSTATIC PUMP/ B18151 HYDROSTATIC

30

731793

CONNECTR W/Ref. 37

31

VALVE See Illustration HYDRAULIC VALVE/ E1572

32

6565620

POPPET

33

6562691

SPRING

34

6562656

ADAPTER

35

6664577

SWITCH hydro. pressure -Was 6564801 - A

36

85D4

NUT 5

37

79K8

O RING 10

38

6560954

OIL COOLER

39

79K6

O RING 10

40

31C616

SCREW

41

6564350

SNUBBER rubber

Выбрано товаров: 41
