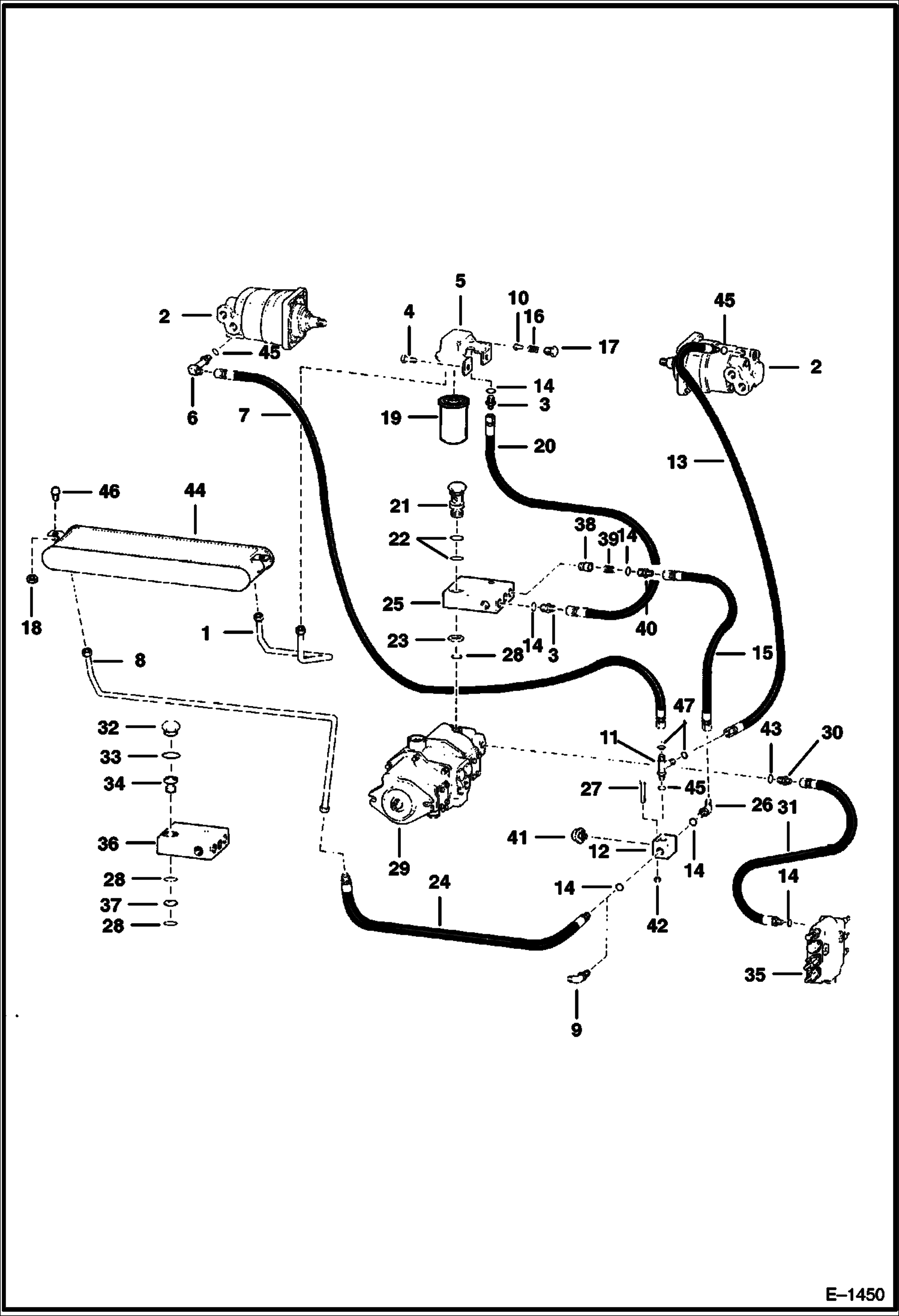

Запчасти Bobcat 600s HYDROSTATIC CIRCUITRY (S/N 12999 & Below) HYDROSTATIC SYSTEM

1

TUBE NLA - Was 6561333 - A

2

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678 HYDRO.

3

15K7

FITTING W/Ref. 14

4

84G3712

BOLT 5

5

FILTER HEAD NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

6

6558510

ELBOW W/Ref. 45

7

1326228

HOSE

8

TUBE NLA - Order 6563676 & 6563684

8

6563676

TUBE

9

18K7

FITTING Not Use W/Ref. 24

10

6515078

POPPET

11

21K5

TEE W/Ref. 45

12

6562692

BLOCK

13

6560785

HOSE

14

79K10

O RING 10

15

1317456

HOSE ASY

16

6553897

SPRING

17

6561811

PLUG W/Ref. 14

18

85D6

NUT, 5

19

6515541

ELEMENT

20

1524780

HOSE

21

6585546

BOLT hollow - Use W/Aluminum Block

22

1K127

O-RING 10 Use W/aluminum block - Was 93K127 - A

23

6562655

WASHER Use W/Aluminum Block

24

6563684

HOSE

25

6564032

BLOCK Aluminum

26

17K7

ELBOW W/Ref. 14

27

17C440

BOLT

28

79K16

O RING 10

29

PUMP See Illustration HYDROSTATIC PUMP/ B18151 HYDROSTATIC

30

15K6

ADAPTER W/Ref. 43

31

6557465

HOSE

32

6553899

PLUG Use W/Steel Block

33

79K24

O RING 10 Use W/Steel Block

34

6560137

RETAINER hollow - Use W/Steel Block

35

VALVE See Illustration HYDRAULIC VALVE/ E1572

36

PORT BLOCK NLA - Order Ref. 21-23, 25 & 28

37

6557802

WASHER Use W/Steel Block

38

6565620

POPPET

39

6562691

SPRING

40

6562656

ADAPTER

41

6631695

SWITCH hydrostatic oil pressure - Was 6519715 - A

42

85D4

NUT 5

43

79K8

O RING 10

44

6560954

OIL COOLER

45

79K6

O RING 10

46

37C616

BOLT Was 6514537 - A

47

6563588

RESTRICTOR
