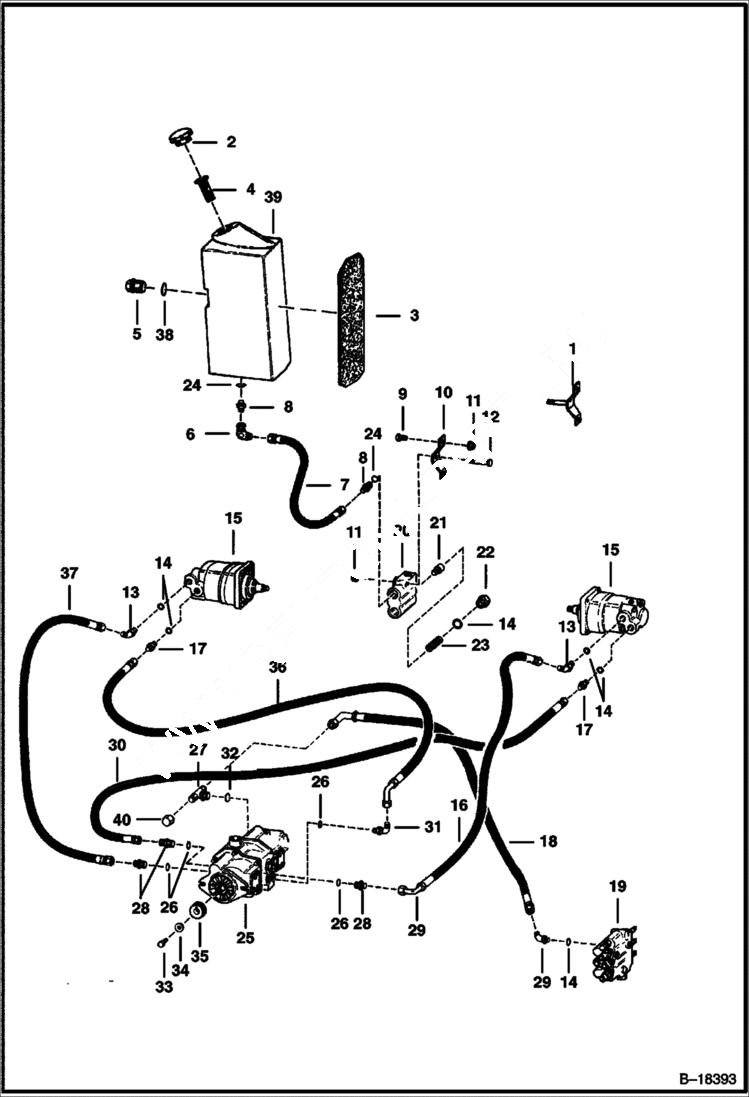

Запчасти Bobcat 600s HYDROSTATIC CIRCUITRY (S/N 24946 & Above) HYDROSTATIC SYSTEM

1

BRACKET NLA - Order Ref. 10 & (1) 7C000640B Bolt - Was 6569047 - A

2

6727475

CAP, OIL HYD Qty. of 1 - Was 6577785 - A

3

6565012

INSULATION

4

7120881

SCREEN, FILLER Was 6569219 - A

5

SIGHT GAUGE NLA - Plastic - Order 6665915 & 79K-12

5

6665915

GAUGE Steel - Also Order 79K000012B - Was 6656338 - A

6

11K8

ELBOW

7

6565572

HOSE

8

15K8

FITTING W/Ref. 24

9

35C616

BOLT 5

10

6569580

BRACKET Use W/7C-640

11

83D6

NUT 5

12

17C640

BOLT 5 hex

12

7C640

BOLT carriage

13

18K7

FITTING W/Ref. 14

14

79K10

O RING 10

15

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678

16

6565791

HOSE

17

15K7

FITTING W/Ref. 14

18

6567542

HOSE For use with Vane Pump

18

6704270

HOSE For use with 858021 Pump

18

6705891

HOSE For use with W9AIS012 Pump

19

VALVE See Illustration HYDRAULIC VALVE/ E1572

20

6565748

BLOCK port

21

6565620

POPPET

22

6561811

PLUG W/Ref. 14

23

6562691

SPRING

24

79K12

O RING 10

25

PUMP See Illustration HYDROSTATIC PUMP/ B18151

26

79K16

O RING 10

27

19K6

FITTING W/Ref. 39 - Was 18K000006B - D

28

15KB1216

FITTING, HYD CONNECTOR W/Ref. 26 - Was 712555B - A

29

6532179

ELBOW W/Ref. 14 - Was 17K000007B - B

30

6565792

HOSE

31

731016

ELBOW

32

79K8

O RING 10

33

18C616

BOLT 5

34

616783

WASHER

35

6558924

ADAPTER *SEE NOTES*

36

6565790

HOSE

37

6565934

HOSE

38

25K40030

O RING 10 For plastic sight gauges

38

79K12

O RING 10 For 6656338 steel sight gauges

39

6569220

TANK nylon

40

36K6

CAP
