Запчасти Bobcat 600s HYDRAULIC VALVE (Bobcat) (S/N 13001 & Above) HYDRAULIC SYSTEM

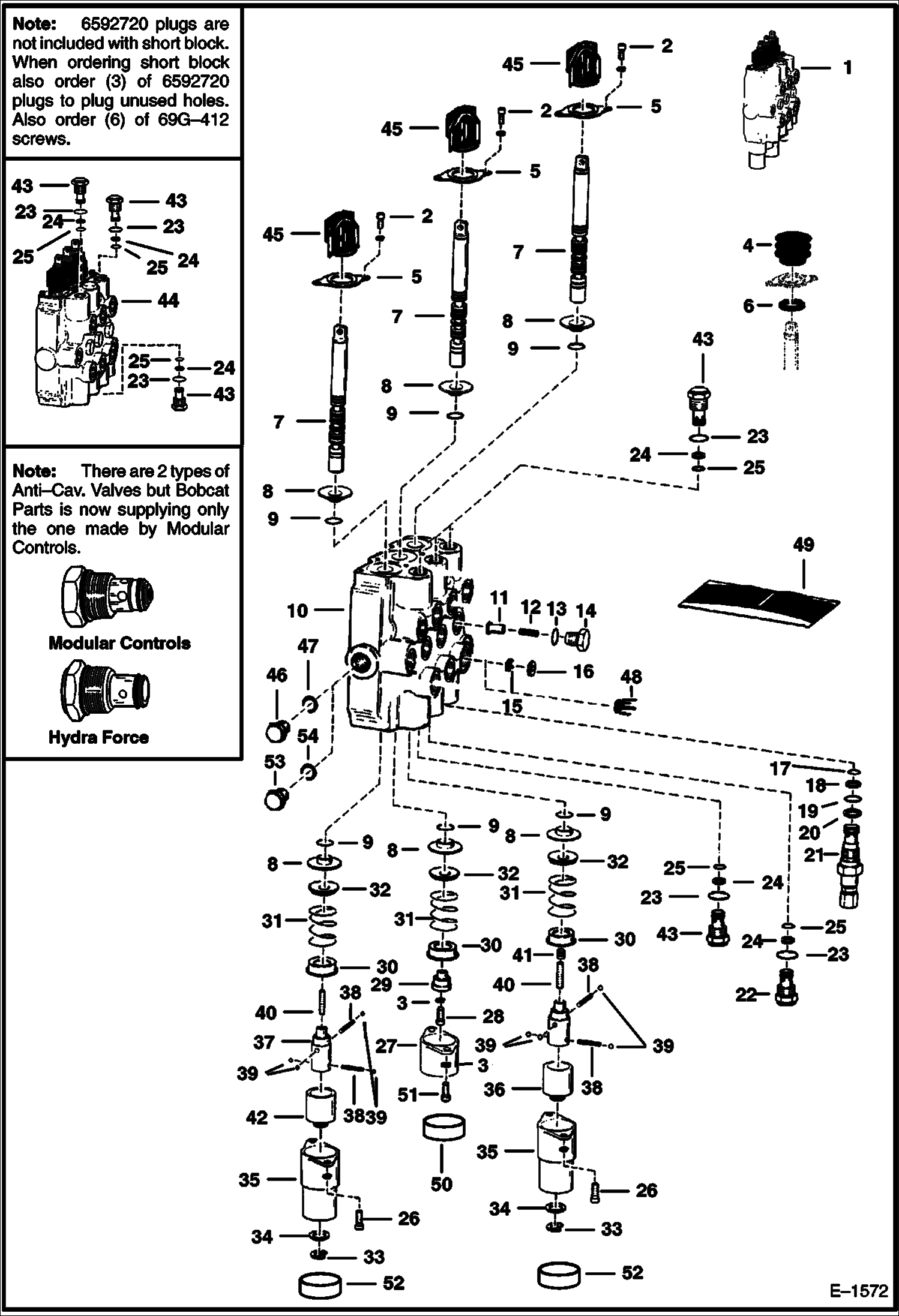

Схема запчастей Bobcat 600s - HYDRAULIC VALVE (Bobcat) (S/N 13001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2403 NLA - Ref. 2-44 - Before ordering repair parts, make sure that this is the correct style valve with stamped boot retainers, Ref. 5, which fit flus

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

BOOT NLA - Order Ref. 45 - Was 6592122 - A

5

6592123

RETAINER

6

FILTER NLA - sintered - Order Ref. 45 - Was 6592122 - A

7

SPOOL NSS

8

6592103

BUSHING See Service Letter 5 Jan. 87

8

6538466

BUSHING W/Part Number stamped on face

9

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

9

6646372

SEAL See BTI374 quad ring seal

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

ORIFICE NLA - .123/.130 (3,12 mm/3,30 mm) - Was 6592110 - A

16

6593680

RETAINER

17

O-RING NSS

18

WASHER NSS - back-up

19

O-RING NSS

20

WASHER NSS - back-up

21

VALVE NLA - main - W/Ref. 17-20 - See Note - pressure preset at factory - Was 6641433 - A

21

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

22

6667549

VALVE anti-cavity check - W/Ref. 23-25 - See Note - Was 6661345 - A

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

25

6677106

O-RING back up washer not required

26

6588163

SCREW .875'' - Was 69G000412B - B

26

29G416

BOLT 1''

27

BONNET NLA - W/.25'' Flange - Order 6587633 , 6662848 & 2 of 6588164 - Was 6592097 - A

27

7101345

BONNET, DETENT HYD VALVE W/.50'' Flange - Was 6587633 - A

28

6588166

SCREW Was 74G000416B - B

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING Was 6592106 - A

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

BONNET NLA - W/.25 Flange - Order 6589226 , 6631704 & 2 of 6588982 - Was 6592094 - A

35

6589226

COVER, END 0.63'' flange

36

6592096

SLEEVE lift

37

6587575

ADAPTER Was 6592099 - A

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW Was 6632374 - A

41

PLUG NLA - plastic - Order 6596807 plug & 54K020002B o-ring - Was 6592752 - A

41

6596807

PLUG plastic - 0.46'' long

41

54K20002

O'RING 10

42

6593349

SLEEVE auxiliary

43

6592720

PLUG W/Ref. 23-25

44

SHORT BLOCK NLA - Ref. 2, 10 & 41 - See Note - Was 6537937 - A

45

6587763

BOOT Was 6583727 - A

46

47K7

PLUG .875 - 14 - W/Ref. 47

47

79K10

O RING 10

48

6587304

ORIFICE .125 (3,17 mm)

49

6816251

KIT, SEAL See BTI374 - Ref. 9, 13, 17-20, 23-25, 41, 45 & 47 - Was 6816717 - A

49

6816250

KIT, SEAL See BTI374 - Ref. 2, 9, 26, 41 & 46 - for one spool - Was 6803605 - A

49

6661328

SEAL KIT Ref. 17 - 20 - Was 6592474 - A

49

6809425

SEAL KIT Ref. 13, 23 & 25 - Was 6586461 - A

50

6662848

CAP Use with 6587633 Bonnet

51

69G414

BOLT Was 6588164 - A

52

6660644

CAP

53

47K9

PLUG 1.187 - 12 - W/Ref. 54

54

79K14

O RING 10
