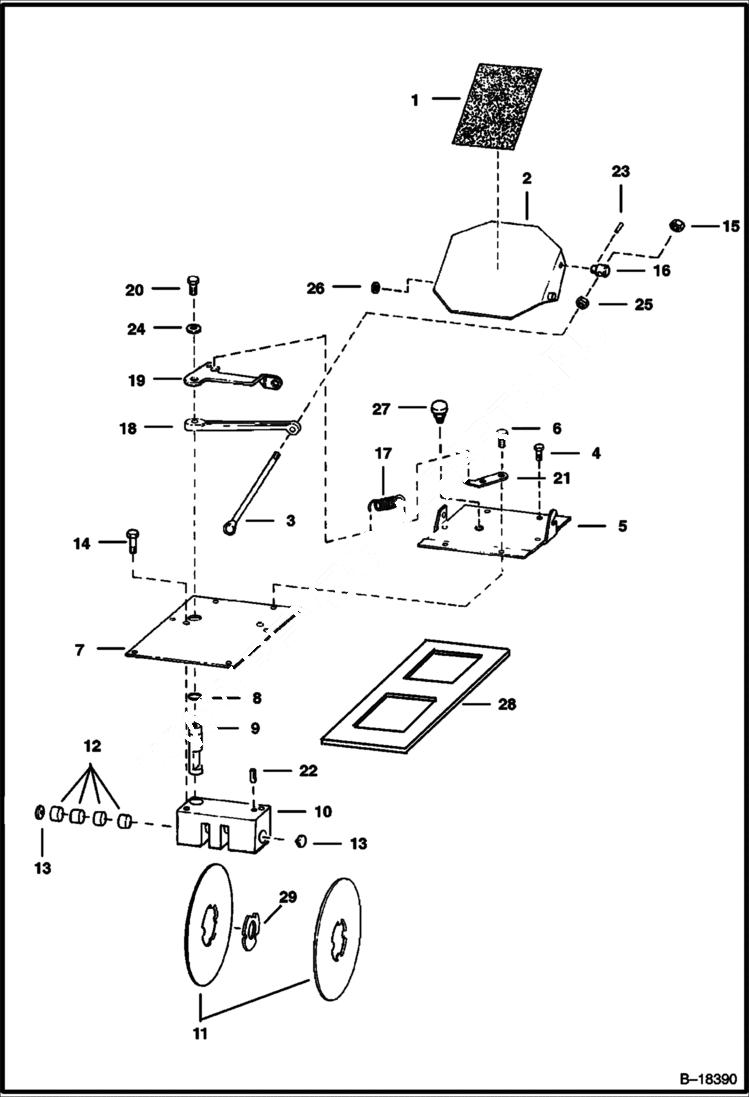

Запчасти Bobcat 600s DISC BRAKES DRIVE TRAIN

1

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

2

6563187

PEDAL

3

6567179

ROD

4

84G3712

BOLT 5

5

PLATE NLA - ORDER (1) 6575654 & Ref. 27 - COVER WAS 6554093 - A

5

6575654

COVER

6

84G3716

SCREW 5

7

6557144

PLATE

8

25K30100

O RING 10

9

6562755

PIN

10

6562757

BLOCK

11

6559206

DISC, BRAKE

12

6557747

PAD

13

6562756

WASHER wear

14

17C812

BOLT

15

85D8

NUT, 5

16

6563178

PIVOT

17

6584584

SPRING Was 6505076 - A

18

6563823

LEVER

19

6577552

BRACKET Was 6563173 - A

20

17C820

BOLT

21

6559218

ANGLE

22

784466

DOWEL PIN

23

14J2516

PIN

24

6506477

WASHER

25

61D8

NUT 5

26

25E21

WASHER 5

27

6632601

BREATHER

28

6703117

GASKET, TRANSMISSION

29

6557937

WASHER
