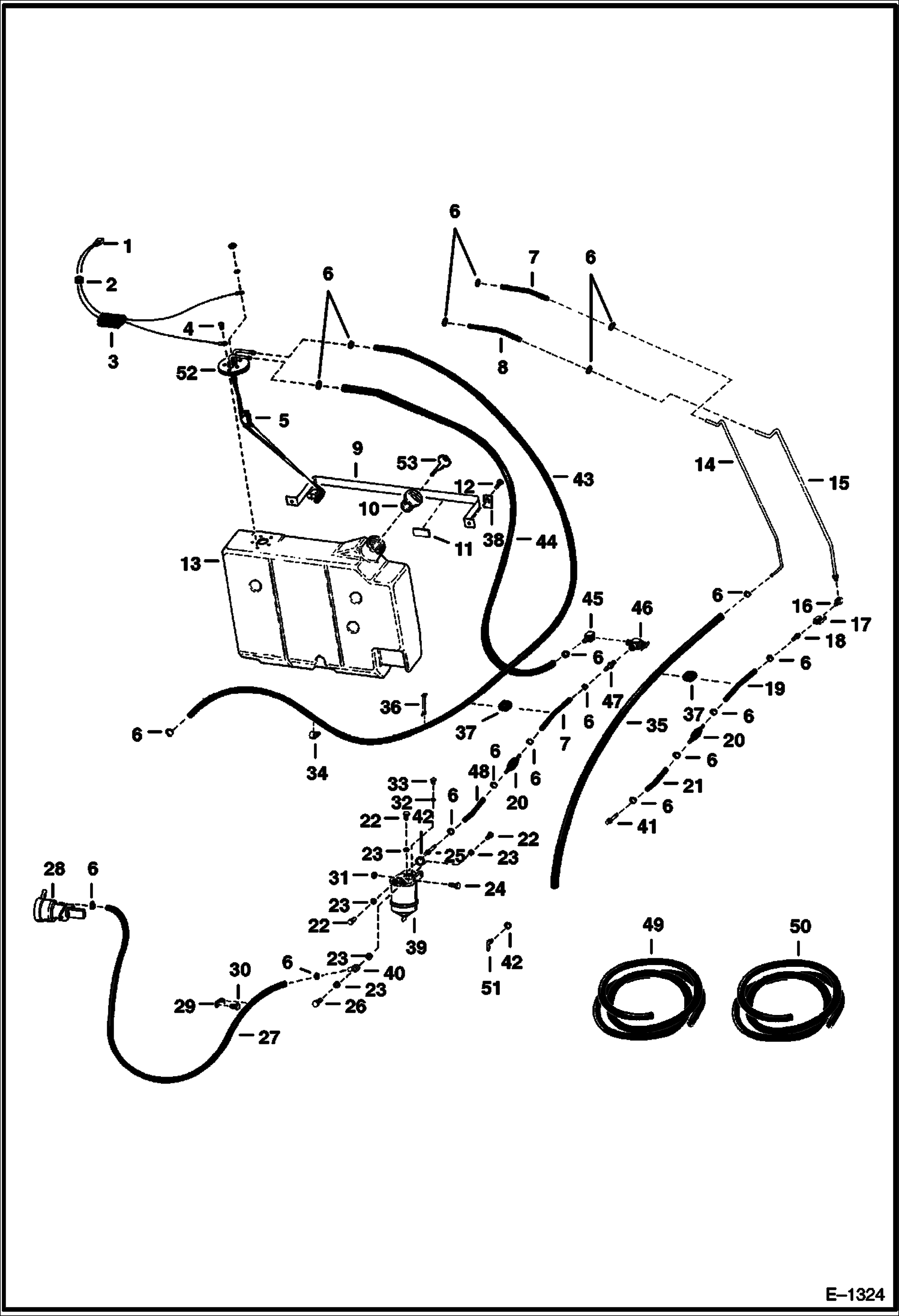

Запчасти Bobcat 600s FUEL SYSTEM (S/N 13446 & Below) MAIN FRAME

1

6560117

WIRE

2

742876

GROMMET

3

6562606

SEAL

4

SCREW NLA - Was 84G001010B - A

5

6563210

SENDER Fuel - includes gasket

6

42HS04

CLAMP, HOSE Was 6515575 - A

7

HOSE NLA - 6'' (152,4 mm) - Order Ref. 50

8

HOSE NLA - 6.5'' (165,1 mm) - Order Ref. 49

9

6562559

BAND

10

6661114

CAP. DIESEL Was 6632468 - A

10

CAP NLA - locking - W/Ref. 37 - Code GC020

10

6661696

CAP, FUEL LOCKING locking - Code PK510 - W/Ref. 37

11

6591273

STRIP rubber - Was 6563233 - A

12

84G3716

SCREW 5

13

TANK See BTI216 NLA

14

6562548

TUBE

15

6562547

TUBE

16

62F4

ELBOW

17

6562553

VALVE shut-off

18

6513421

CONNECTOR

19

HOSE NLA - 5.75'' (139,7 mm) - Order Ref. 49

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - A

21

HOSE NLA - 2.125'' (53, 9 mm) - Order Ref. 49

22

6515682

PLUG

23

6515466

WASHER

24

17C616

BOLT 5

25

6560355

FITTING

26

BOLT NLA - hollow - Order Ref. 51

27

HOSE NLA - 49'' (1244,6 mm) - Order Ref. 49

28

6598121

FUEL PUMP See Illustration FUEL & INJECTION PUMP/ B18508

29

30H36

CLIP

30

6CM1220

BOLT

31

57D6

NUT 5

32

6515468

WASHER

33

6515676

PLUG

34

30H29

CLAMP

35

HOSE NLA - 30'' (762 mm) - Order Ref. 50

36

6513471

CLAMP

37

6515603

GROMMET

38

6559447

WASHER square

39

FILTER See Illustration FUEL FILTER/ B5653

39

3885315

FILTER, FUEL 12

40

FITTING banjo - Order Ref. 50

40

41

1324240

CONNECTOR

42

79K5

O RING 10

43

HOSE NLA - 58'' (1473,2) - Order Ref. 50

44

HOSE NLA - 35'' (899 mm) - Order Ref. 49

45

6598753

ELBOW

46

6632593

VALVE shut-off Was 6512138 - A

47

6505813

CONNECTOR Use W/Barbless Fuel Valve

48

HOSE NLA - 2'' (50,8 mm) - Order Ref. 50

49

6577822

HOSE bulk - sold per foot

50

6577821

HOSE bulk - sold per foot

51

6599488

ELBOW

52

6630972

GASKET

53

6654374

KEY Code GC020

53

6587458

KEY Code PK510
