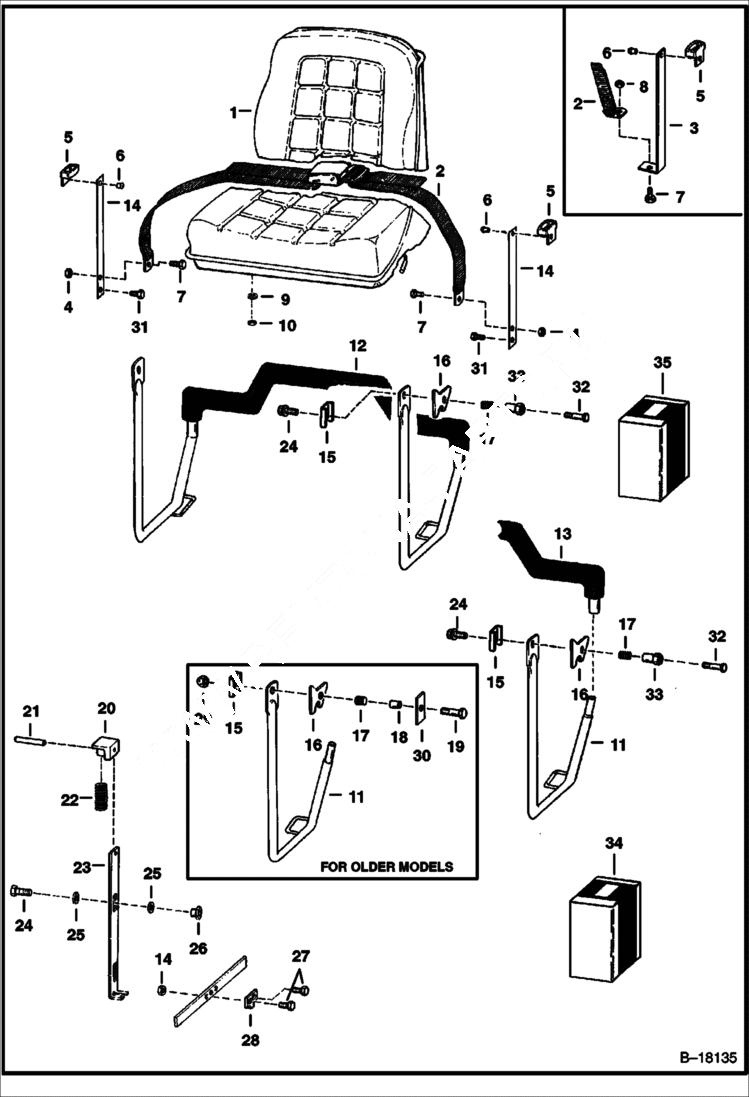

Запчасти Bobcat 600s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

2

SEAT BELT NLA - Ref. 35 - Was 6564774 - A

2

SEAT BELT NLA - Order Seat Belt - Was 6667875 - A

2

SEAT BELT NLA - w/spring plates - Order 6675074 Seat belt & (2) of Ref. 3 (6725373 spring plates)

2

6675074

SEAT BELT W/O spring plates

3

6563206

GUIDE ASSY W/Ref. 5 & 6

3

6563207

GUIDE ASSY W/Ref. 5 & 6

3

6711908

SPRING PLATE

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

85D7

NUT

5

GUIDE NLA - Order 6703703 - Was 6565355

6

6630207

RIVET 5 Was 6512797 - A

7

17C716

BOLT

8

61D7

NUT

9

4E5

WASHER Was 4E000006B - B

10

61D5

NUT Was 61D000006B - B

11

ARM NLA - L.H. - Order Ref. 12 - Was 6563296 - A

11

ARM NLA - Order Ref. 12 - R.H. - Was 6563295 - A

12

6706324

SEAT BAR 1 piece - W/Ref. 11 & 13 - Was 6703301 - A

13

SEAT BAR NLA - Order Ref. 12 - Was 6563095 - A

14

GUIDE ASSY. NLA - W/Ref. 5 & 6 - 13.75'' - Use W/ 6564774 - Was 6565354 - A

14

6711907

GUIDE ASSY. W/Ref. 5 & 6 - 12.25'' - Use W/ 6667875

15

6563557

WASHER

16

6563313

RETAINER

17

6704453

SPRING Was 6503387 - A

18

BUSHING NLA - Order 6564507 & 6564506

18

6564507

BUSHING

19

17C636

BOLT

20

6563148

BLOCK, SPRING

21

14J2512

PIN 5

22

6702430

SPRING, COMPRESSION Was 6563149 - C

23

6563150

LOCK

24

17C612

BOLT 5

25

6700170

WASHER nylon - Was 6563152 - A

26

6559479

NUT

27

17C616

BOLT 5

28

6563151

LINK

29

83D6

NUT 5

30

6564506

WASHER

31

84G3712

BOLT 5

32

35C608

BOLT

33

6568742

BUSHING

34

6706796

KIT See Illustration SEAT BAR KIT/ C3341 GAS SPRING SEAT BAR

35

KIT NLA - W/Ref. 2 & 14 - Order Ref. 2 (6725403 Seat Belt) - Was 6713061 - A
