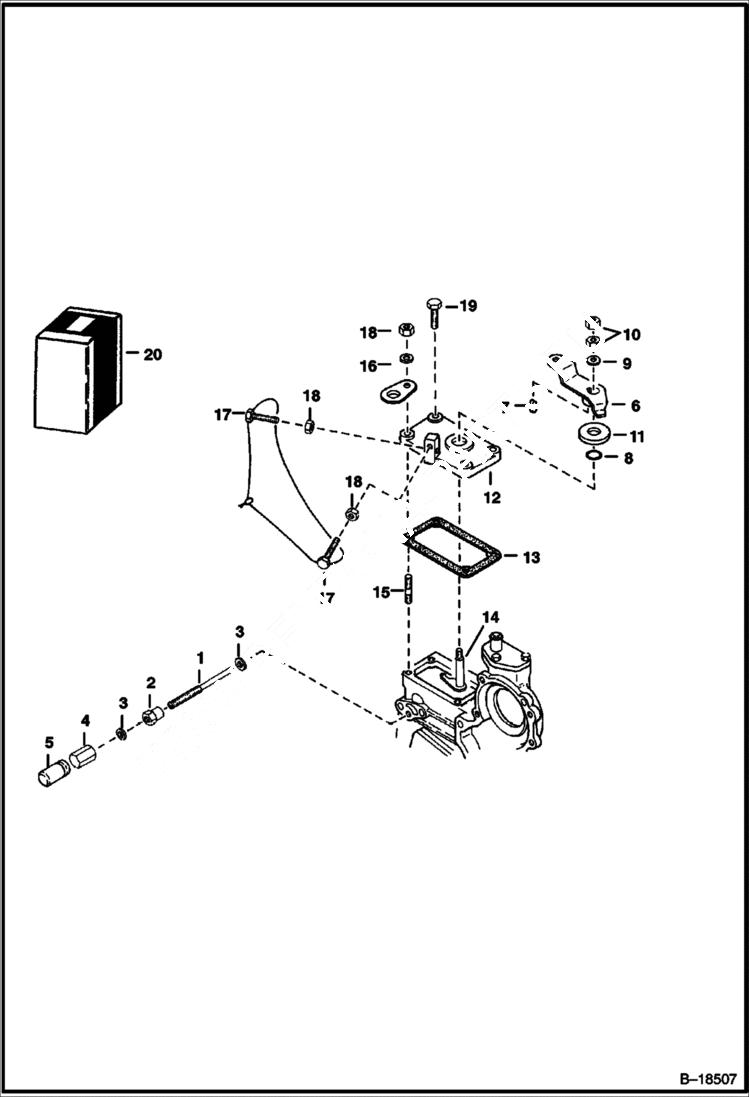

Запчасти Bobcat 600s SPEED CONTROL PLATE POWER UNIT

1

3974970

BOLT

2

3974971

NUT

3

6655223

NUT Was 3974972B - A

4

6655223

NUT Was 3974973B - A

5

6653905

CAP Was 3974974B - A

6

6598176

LEVER

7

15JM48

KEY

8

3966512

O RING In 6630553 Gasket Kit

9

1EM80

WASHER

10

1DM8

NUT Was 25DM00008B - A

11

3974644

COLLAR friction

12

PLATE NLA - Order 6641231 plate & 6666792 gasket - Was 6598164 - A

12

6641231

PLATE, CONTROL SPEED

13

3974646

GASKET In 6630553 Gasket Kit

13

6666792

GASKET In 6630553 Gasket Kit - Was 6635392 - A

14

6598174

LEVER

15

6652764

STUD Was 3974462B - A

16

6EM60

WASHER, SPRING

17

6652712

STOPPER Was 3974284B - A

18

1DM6

NUT

19

1CM620

BOLT Was 4CM620 - A

20

PLATE KIT NLA - Ref. 8, 12 & 13 - Order 6901115 kit - Was 6722930 - A

20

6901115

KIT Ref. 6-14
