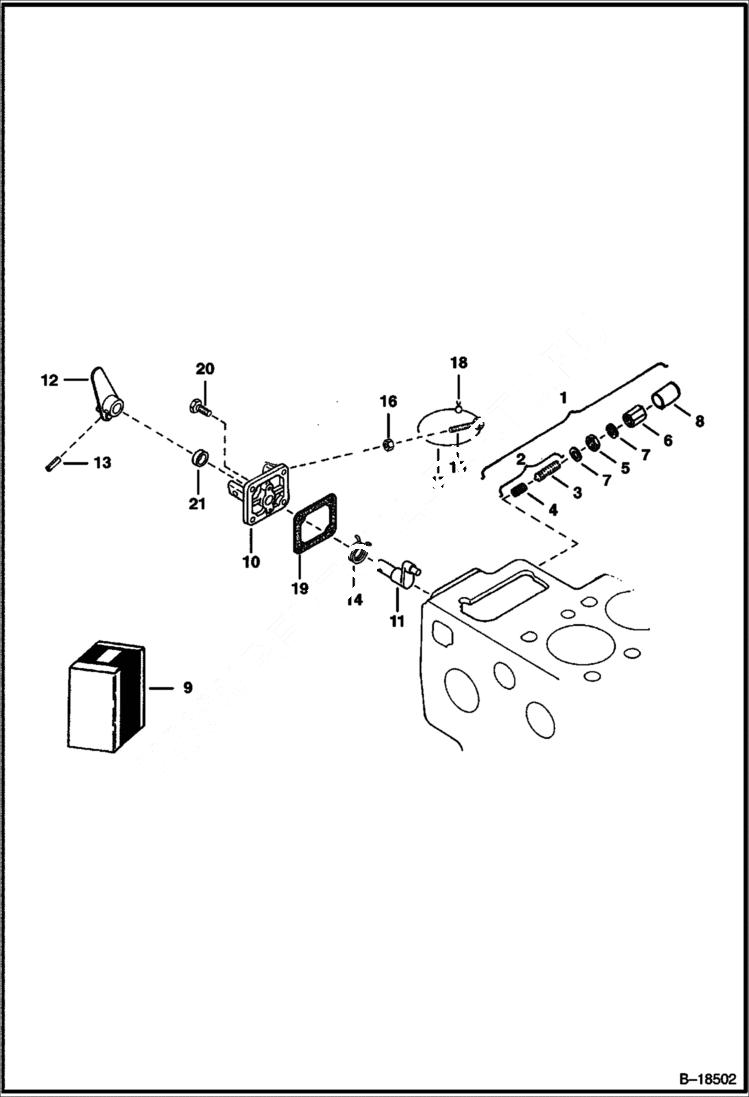

Запчасти Bobcat 600s STOP LEVER POWER UNIT

1

3974975

IDLER Ref. 2-8

2

BOLT ASSY. NSS - adj. - Ref. 3 & 4

3

BOLT NSS

4

3974977

SPRING

5

NUT NSS

6

NUT NSS

7

GASKET NSS

8

CAP NSS

9

6598165

LEVER ASSY. Ref. 9-14

10

6655540

COVER Was 6598700 - A

11

6598701

SHAFT

12

6598716

LEVER

13

6598098

PIN

14

6598702

SPRING

15

6652712

STOPPER Was 3974284B - A

16

1DM6

NUT

17

WIRE NLA

18

LEAD NLA - sealing

19

6666783

GASKET In 6630553 Gasket Kit - Was 3974601B - A

20

4CM618

BOLT

21

6598703

SEAL oil
