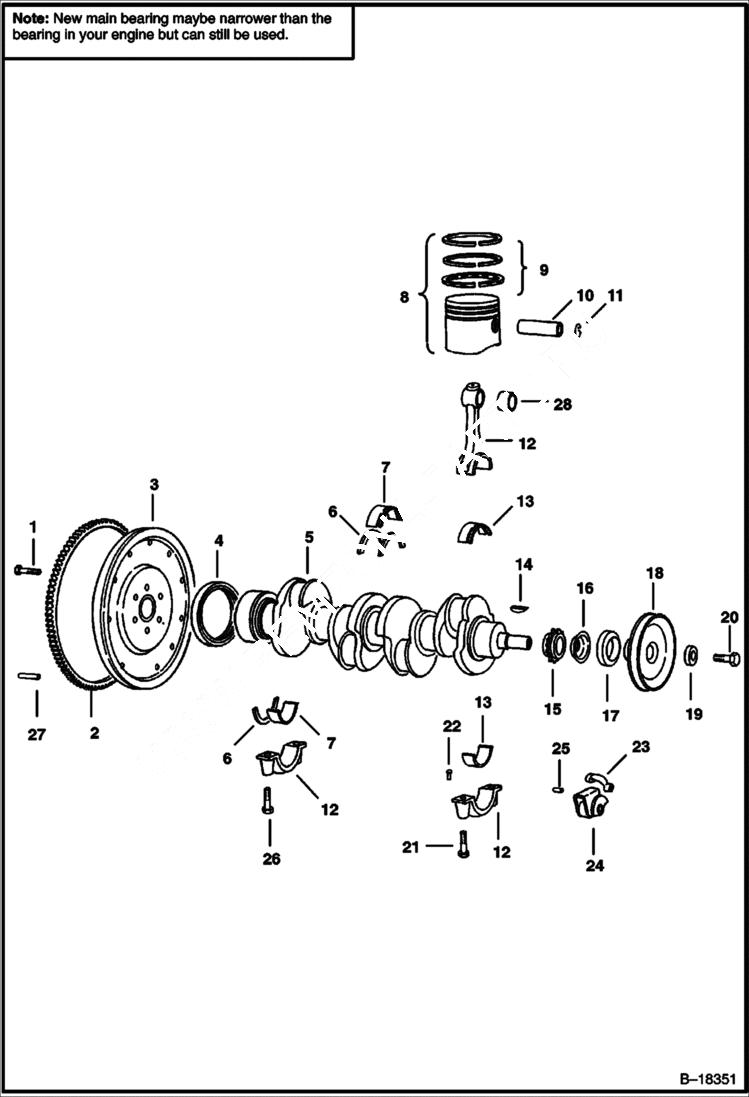

Запчасти Bobcat 600s CRANKSHAFT & PISTON POWER UNIT

1

94G620

SCREW

2

6562279

RING GEAR

3

FLYWHEEL See BTI214 NLA - W/Ref. 2

3

FLYWHEEL See BTI214 NLA - W/Ref. 2 - Was 6565463 - A

4

7030192

SEAL rear - Was 6512490 - A

5

6512441

CRANKSHAFT

6

WASHER NLA - thrust - std - .091''-.093'' - two halves - A

6

6512609

WASHER thrust (.0025)

6

6512610

WASHER thrust (.005)

6

WASHER NLA - thrust (.0075) - Was 6512611 - A

6

WASHER NLA - thrust (.010) Two halfs - Was 6512612 - A

7

6674881

BEARING SET Main (Std.) - SEE NOTE - One Complete Set - Was 6512445 - A

7

BEARING SET main (-.010) - One Complete Set - Was 6674882 - A

7

6674883

BEARING SET Main (.020) - One Complete Set - Was 6512448 - A

7

6674884

BEARING SET Main (.030) - One Complete Set - Was 6669272 - A

7

BEARING NLA - main (+.015 OD, Std. ID) - One Bearing - Was 6512600 - A

7

BEARING NLA - main (+.015 OD, -.010 ID) - One Bearing - Was 6512597 - A

7

BEARING NLA - main (+.015 OD, -.020 ID) - Was 6512598 - A

7

BEARING NLA - main - (+.015 OD, -.030 ID)

8

PISTON ASSY. NLA - W/Pins & Rings-(Std.) - Was 6512403 - A

8

6658848

PISTON W/Pins (+.020)

8

6665229

PISTON ASSY. W/Pins (+.030) - Was 6512405 - A

8

6656408

PISTON W/Rings, W/Pin

9

6512409

RINGS Std. - Complete Set

9

6658849

RINGS (+.020)

9

6512411

RINGS (+.030)

9

6656407

RINGS (+.040)

10

6512406

PIN piston - (Std.)

10

PIN NLA - piston - (.020) - Was 6512407 - A

11

6512408

RETAINER

12

ROD NLA - Connecting - Was 6667022 - A

13

6666615

BEARING rod (STD.) - Complete set - Was 6512680 - A

13

BEARING NLA - rod - (.002) - One Bearing - Was 6512677 - A

13

6666350

BEARING rod - (.010) - Complete set - Was 6512678 - A

13

6674885

BEARING rod - (.020) - Complete set - Was 6669571 - A

13

6666614

BEARING rod - (.030) - Complete Set - Was 6512679 - A

13

BEARING NLA - rod - (.040) - Was 6632632 - A

14

6512641

KEY

15

6512442

SPROCKET

16

SLINGER NLA - oil

17

6648209

SEAL Was 6512489 - A

18

6558802

PULLEY

19

WASHER NLA - Was 622284B - A

20

18C724

BOLT

21

BOLT NLA - Rod - Was 6512604 - A

22

1JM4010

DOWEL

23

6512439

ARM

24

6512438

TENSIONER timing chain

25

6512440

PIN

26

17C746

BOLT Main

27

214165

DOWEL

28

6598356

BUSHING One Bushing
