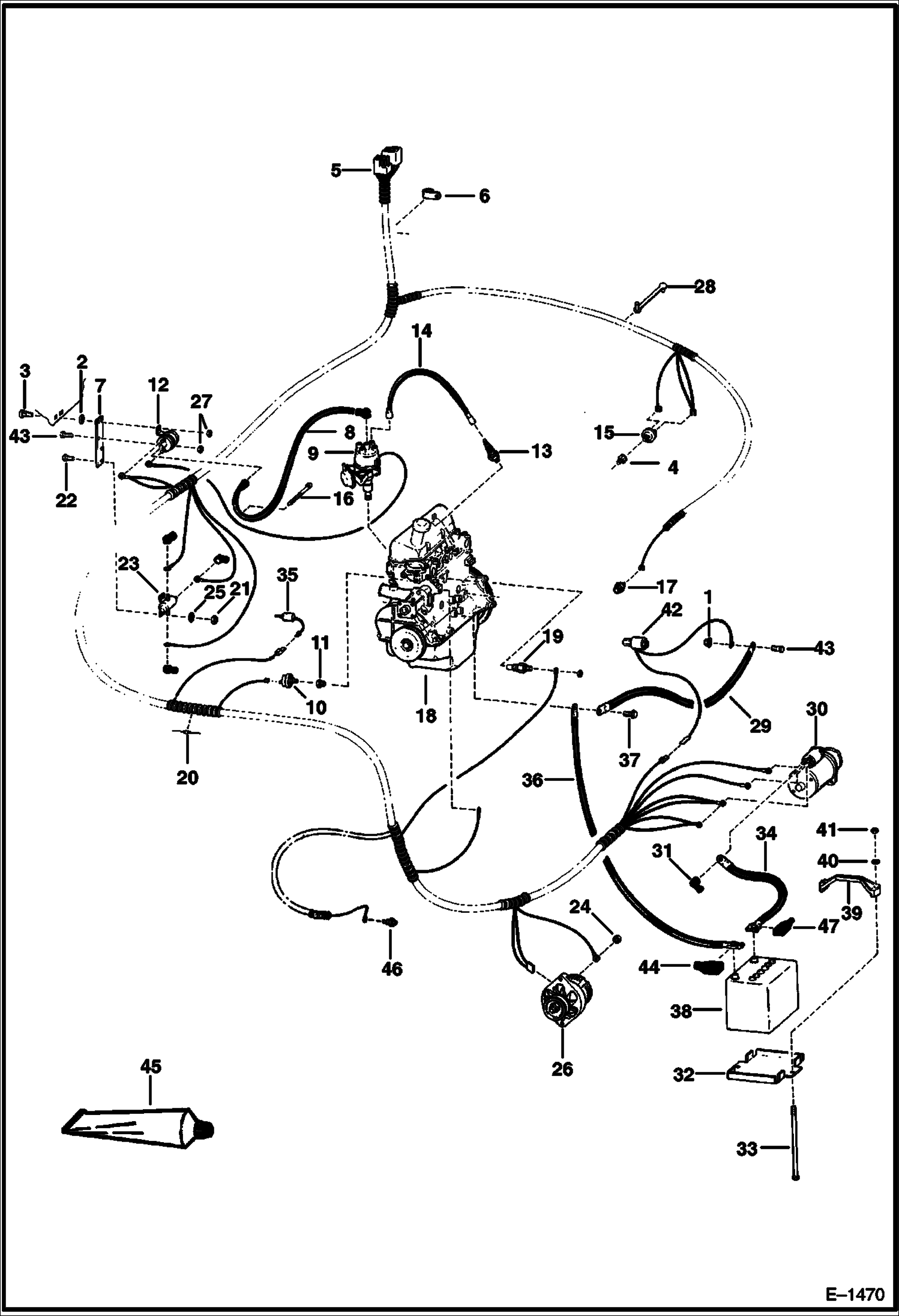

Запчасти Bobcat 600s ENGINE ELECTRICAL CIRCUITRY (S/N 13003 & Above) ELECTRICAL SYSTEM

1

83D5

NUT 5

2

6E5

WASHER

3

7C516

BOLT

4

6564350

SNUBBER

4

6563922

SNUBBER W/Filter

4

6563920

FILTER

5

6565047

HARNESS engine - Delco Alternator

5

6565636

HARNESS Delco Alternator

6

30H42

CLAMP

7

6565055

MOUNT

8

6513642

COIL WIRE

9

DISTRIBUTOR See Illustration IGNITION SYSTEM/ C2144

10

6631010

SWITCH, PRESS OIL ENG engine pressure

11

19F1

BUSHING

12

881097

COIL ASY

13

6512536

SPARK PLUG

14

WIRES See Illustration IGNITION SYSTEM/ C2144 SPARK PLUG

15

6671062

SWITCH hydro. press. - Was6664577 - A

16

6610510

TIE Was 1715312B - A

17

6632633

SWITCH hyd temp - Was 6564560 - A

18

ENGINE See Illustration ENGINE/ B18474

19

SWITCH See BTI259 NLA - eng. temp. - Was 6599492 - A

19

6658818

SENDER See BTI259 eng temp - threaded connector

20

3675725

DIODE

21

61D4

NUT 5

22

17C410

BOLT 10

23

6659319

SOLENOID Was 6632186 - A

24

1DM6

NUT Use W/Delco Alternator - Was 4DM6 - A

25

6E4

WASHER 10 lock

26

ALTERNATOR See Illustration ALTERNATOR/ B18456 See Illustration ALTERNATOR/ C1802

27

61D5

NUT

28

6599701

CLAMP

29

6563025

CABLE Ground

30

STARTER See Illustration STARTER/ B17654 See Illustration STARTER/ B1192

31

6560172

COVER

32

6562877

MOUNT

33

6569623

BOLT

34

6557450

CABLE Positive

35

6555915

SOLENOID, SHUTOFF FUEL carburetor

36

6564716

CABLE Ground - Was 6563042 - A

37

BOLT NLA - hex head bolt - 5/16'' x 5/8'' - grade 5 - Was 31C000510B - A

38

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

38

6630152

CAP battery

39

7024123

CLAMP Was 6563462 - A

40

25E15

WASHER

41

59D5

NUT 5

42

7024822

SOLENOID, FUEL Was 6559117

43

17C512

BOLT 5

44

6599652

BOOT

45

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

46

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 FILTER

47

2356058

BOOT
