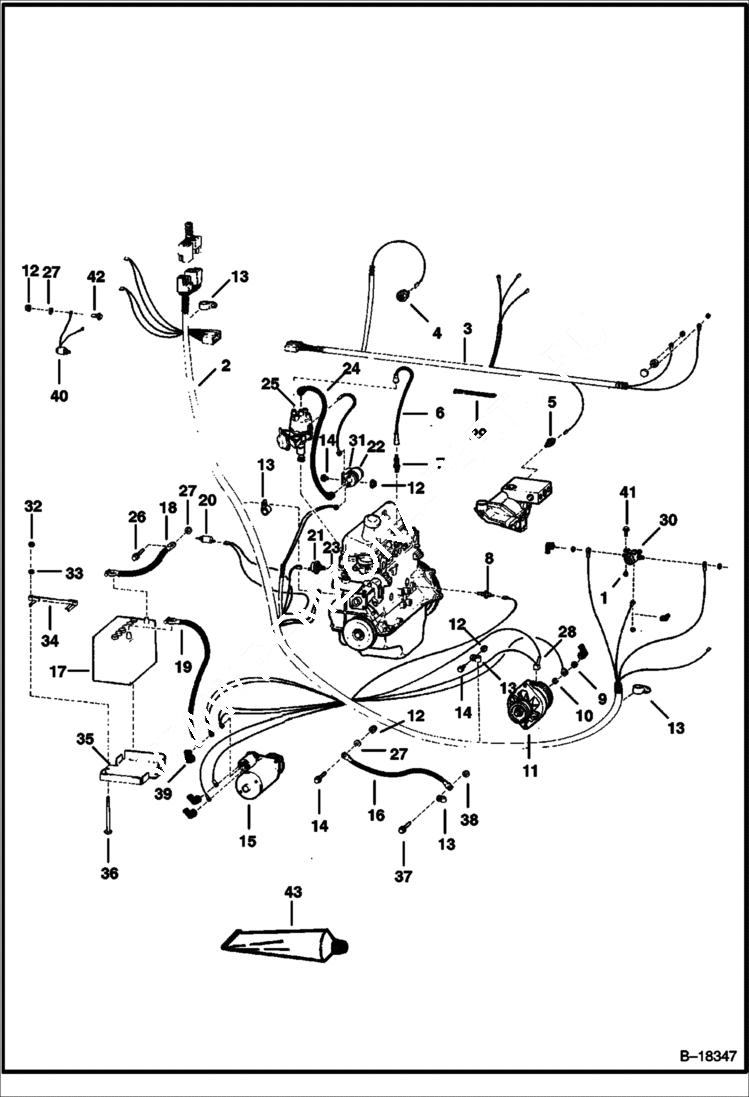

Запчасти Bobcat 600s ENGINE ELECTRICAL CIRCUITRY (S/N 13002 & Below) ELECTRICAL SYSTEM

1

83D4

NUT 10

2

6563013

HARNESS engine

3

6563038

HARNESS

4

6631695

SWITCH hydrostatic oil pressure - Was 6519715 - A

5

6598384

SWITCH hydro. temp.

6

WIRES See Illustration IGNITION SYSTEM/ C2144 NSS - SPARK PLUG

6

6513958

WIRE SET wire

7

6512536

SPARK PLUG

8

6630821

SWITCH eng. temp.

9

1DM6

NUT Was 4DM6 - A

10

6E4

WASHER 10

11

ALTERNATOR See Illustration ALTERNATOR/ B18456 See Illustration ALTERNATOR/ C1802

12

83D5

NUT 5

13

30H46

CLIP

14

35C512

BOLT Was 31C000512B - A

15

STARTER See Illustration STARTER/ B17654 See Illustration STARTER/ B1192

16

6563025

CABLE Ground

17

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

17

6630152

CAP battery

18

6564716

CABLE Ground

19

6557450

CABLE Positive

20

6555915

SOLENOID, SHUTOFF FUEL carburetor

21

6631010

SWITCH, PRESS OIL ENG eng. pressure

22

881097

COIL ASY

23

19F1

BUSHING

24

COIL WIRE See Illustration IGNITION SYSTEM/ C2144 NSS

25

6512522

DISTRIBUTOR

26

BOLT NLA - hex head bolt - 5/16'' x 5/8'' - grade 5 - Was 31C000510B - A

27

6E5

WASHER

28

3675725

DIODE

29

6610510

TIE Was 1715312B - A

30

6659319

SOLENOID Was 6632186 - A

31

6512914

BRACKET

32

59D5

NUT 5

33

25E15

WASHER

34

7024123

CLAMP Was 6563462 - A

35

6562877

MOUNT

36

6569623

BOLT Was 6561445 - A

37

84G3712

BOLT 5

38

6E6

WASHER

39

6560172

COVER

40

7024822

SOLENOID, FUEL was 6559117

41

31C412

BOLT

42

10C512

BOLT Was 6553808 - A

43

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz
