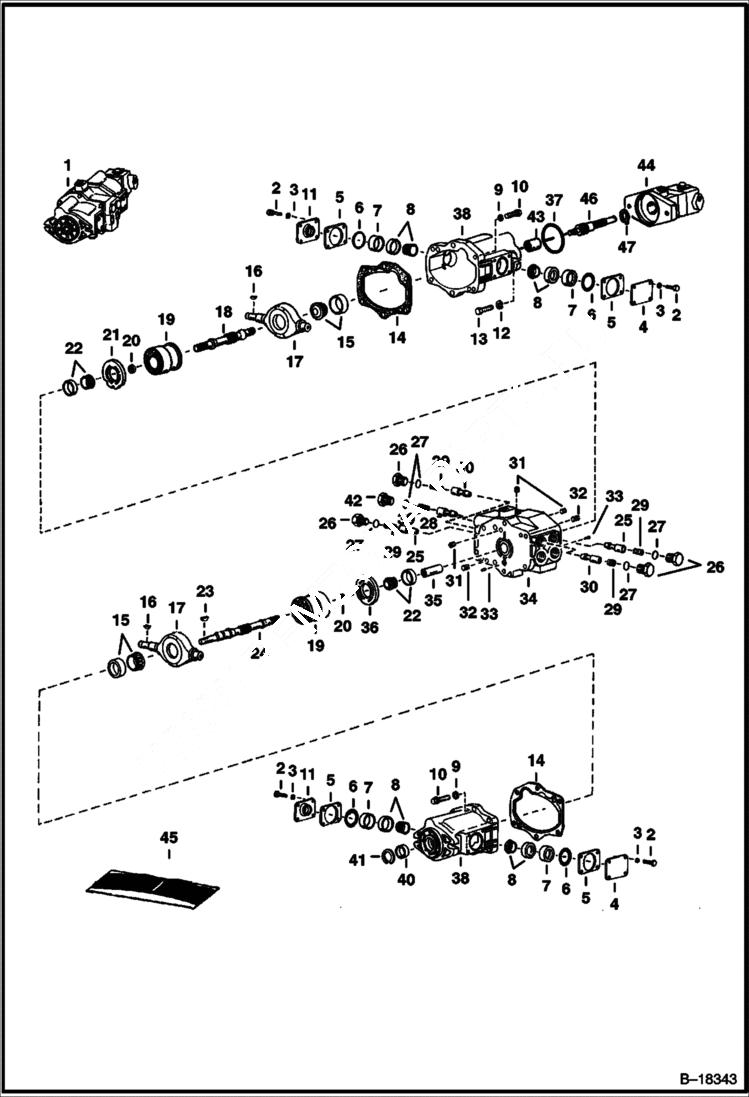

Запчасти Bobcat 600s HYDROSTATIC PUMP HYDROSTATIC SYSTEM

1

PUMP See BTI154 NLA

1

PUMP NLA - New - Order 6648981 - Vickers 451808 - Was 6630101 - A

1

PUMP NLA - New - Vickers 567685 - Was 6648981 - A

1

PUMP, HYD NLA - Vickers 451808 - Was 6630534REM - A

2

6513631

BOLT

3

4E4

WASHER

4

6512939

COVER

5

6512940

SHIM KIT

6

O-RING NSS

7

6512938

SPACER

8

232539

BEARING

9

4E6

WASHER

10

93G624

SCREW

11

6513094

COVER & SEAL

12

616791

WASHER

13

17C820

BOLT

14

6512941

GASKET

15

6513091

BEARING

16

5J806

KEY

17

6512929

YOKE

18

6512932

SHAFT

19

ROTATING GROUP NLA - Was 6512930 - A

20

6512948

KIT kit

20

6674240

SPACER (.137'')

20

6674241

SPACER (.139'')

20

6674242

SPACER (.142'')

20

6674243

SPACER (.145'')

20

6674244

SPACER (.148'')

20

6674245

SPACER (.151'')

20

6674246

SPACER (.154'')

20

6674247

SPACER (.157'')

20

6674248

SPACER (.160'')

20

6674249

SPACER (.163'')

20

6674250

SPACER (.166'')

20

6674251

SPACER (.169'')

21

6598478

WEAR PLATE

22

6513093

BEARING

23

6519654

KEY

24

6512942

SHAFT, DRIVE HYD

25

RELIEF VALVE NLA - Relief Valve - High PSI - Was 6512947 - A

26

6513434

PLUG

27

79K12

O RING 10

28

POPPET NLA - Charge PSI - Was 6512945 - A

28

POPPET NLA - Charge PSI - Was 6630786 - A

29

6513433

SPRING

30

6513432

POPPET replenishing

31

16F4

PLUG

32

6513089

PIN

33

6513092

PIN

34

BODY NLA - valve - Was 6512931 - A

35

6512933

COUPLER

36

WEAR PLATE NLA - Was 6598477 - A

37

6512949

O-RING

38

HOUSING NLA - Was 6598433 - A

39

6512946

SPRING See BTI154

39

SPRING See BTI154 - NLA - Was 6630785 - A

40

6513090

SEAL, SHAFT

41

507695

SNAP RING

42

6598902

PLUG

42

6630784

PLUG

43

6512935

COUPLER

44

VANE PUMP See Illustration VANE PUMP/ C2225

45

6512943

KIT, SEAL Ref. 6, 14, 27, 37 & 40

46

6512934

SHAFT

47

711054

SNAP RING
