Запчасти Bobcat 600s HYDRAULIC VALVE (S/N 12999 & Below) HYDRAULIC SYSTEM

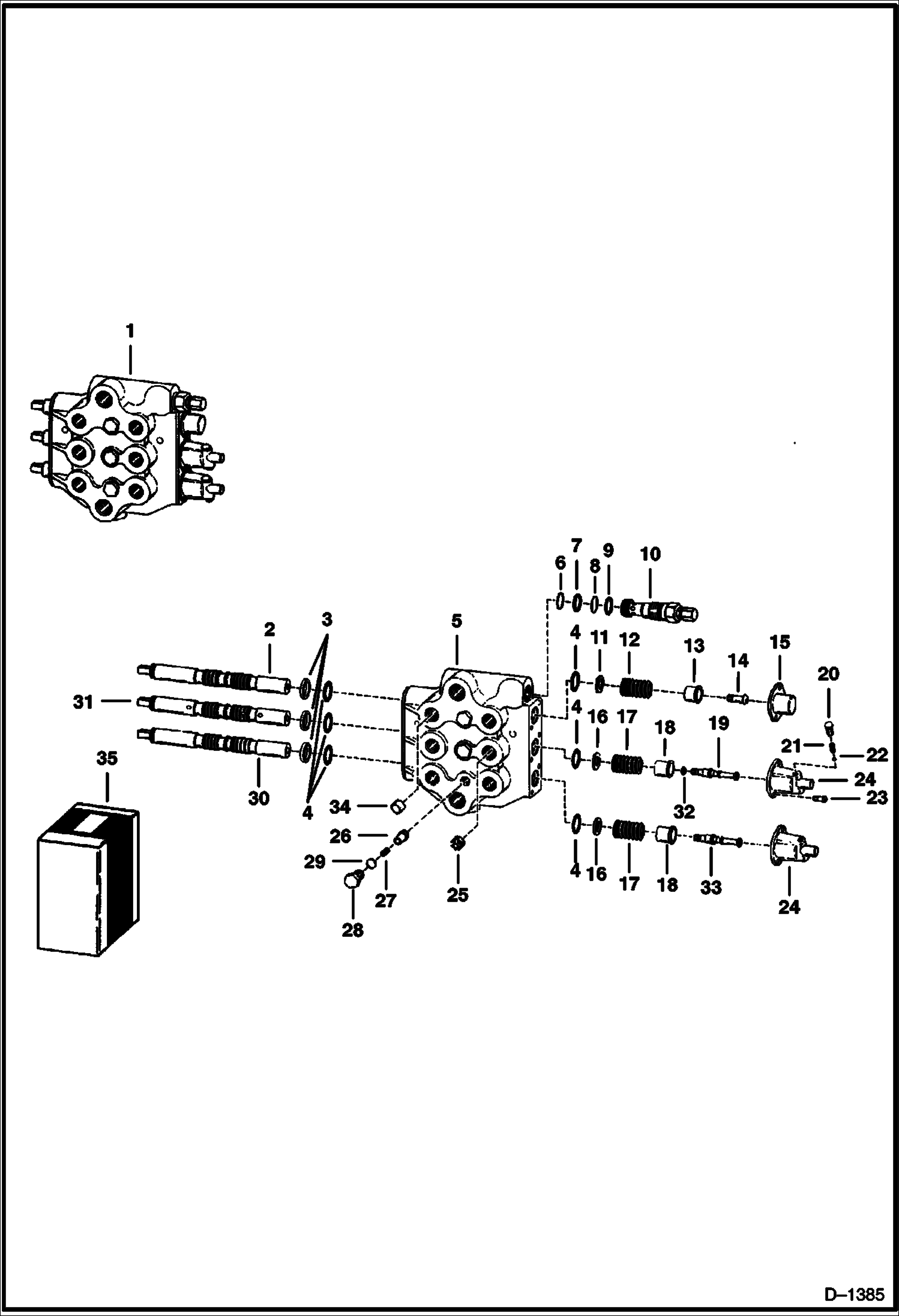

Схема запчастей Bobcat 600s - HYDRAULIC VALVE (S/N 12999 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6557603

VALVE hydraulic - W/O Ref. 10

2

SPOOL NLA

3

SEAL NSS - wiper

4

O-RING NSS

5

BODY NLA - valve

6

O-RING NSS

7

WASHER NSS - back-up

8

O-RING NSS

9

WASHER NSS - back-up

10

6557602

RELIEF VALVE relief - 1700 PSI

11

WASHER NSS

12

SPRING NSS

13

SPACER NSS

14

SCREW NSS

15

CAP NSS - end

16

WASHER NSS

17

SPRING NSS

18

SPACER NSS

19

SPOOL NSS - detent

20

6513446

PLUG detent

21

6513445

SPRING detent

22

6513443

BALL

23

41G1208

SCREW

24

CAP NSS - end

25

ORIFICE See Illustration HYDRAULIC CIRCUITRY/ D1566 NLA - .123/.130 (3,12/3,30 MM) - Was 6560940 - A

26

POPPET NLA - Order7008546 - Was 6599473 - A

27

6599472

SPRING

28

6514733

PLUG

29

O-RING NSS

30

SPOOL NLA

31

SPOOL NLA

32

O-RING NSS

33

6560939

ORIFICE See Illustration HYDRAULIC CIRCUITRY/ D1566 .080/.086

34

SPOOL NSS - detent

35

6512792

KIT Ref. 11 - 15

35

6512793

KIT Ref. 16 - 22 & 24

35

KIT NLA - auxiliary - Ref. 16 - 18, 20 - 22 24 & 34 - Was 6512794

35

6512795

SEAL KIT Ref. 3, 4, 6 - 9, 29 & 32

35

6560312

KIT detent cap - Ref. 20 - 22 & 24

Выбрано товаров: 39
