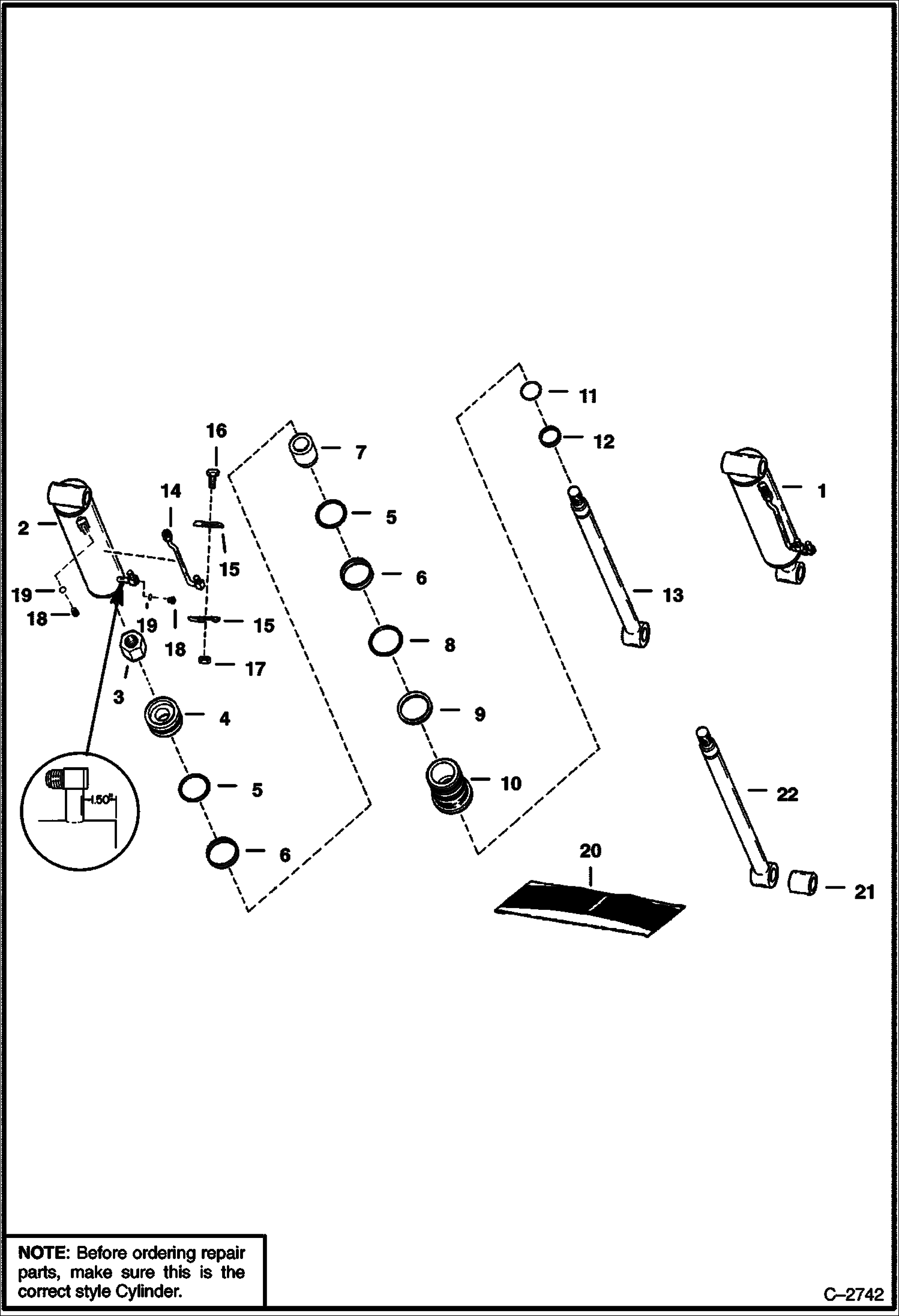

Запчасти Bobcat 600s TILT CYLINDER (W/Replaceable Tubes) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ B18047 NLA - tilt - Order 6539810 cylinder - Check measurement as shown on this page before ordering repair parts

2

6592041

CASE

3

86D16

NUT

4

6592448

PISTON

5

SEAL NSS

6

O-RING NSS

7

6591800

SLEEVE

8

O-RING NSS

9

WASHER NSS - back-up

10

6591799

HEAD

11

SEAL NSS - rod

12

SEAL NSS - wiper

13

ROD NLA - cylinder - W/O Bushing - Order Ref. 22

14

6592019

TUBE

15

6591804

CLAMP

16

17C616

BOLT 5

17

85D6

NUT, 5

18

47K5

PLUG W/Ref. 19

19

79K6

O RING 10

20

6591885

SEAL KIT Ref. 5, 6, 8, 9, 11 & 12

21

6589665

BUSHING Use W/Ref. 22

22

6589785

SHAFT, ROD CYL TILT
