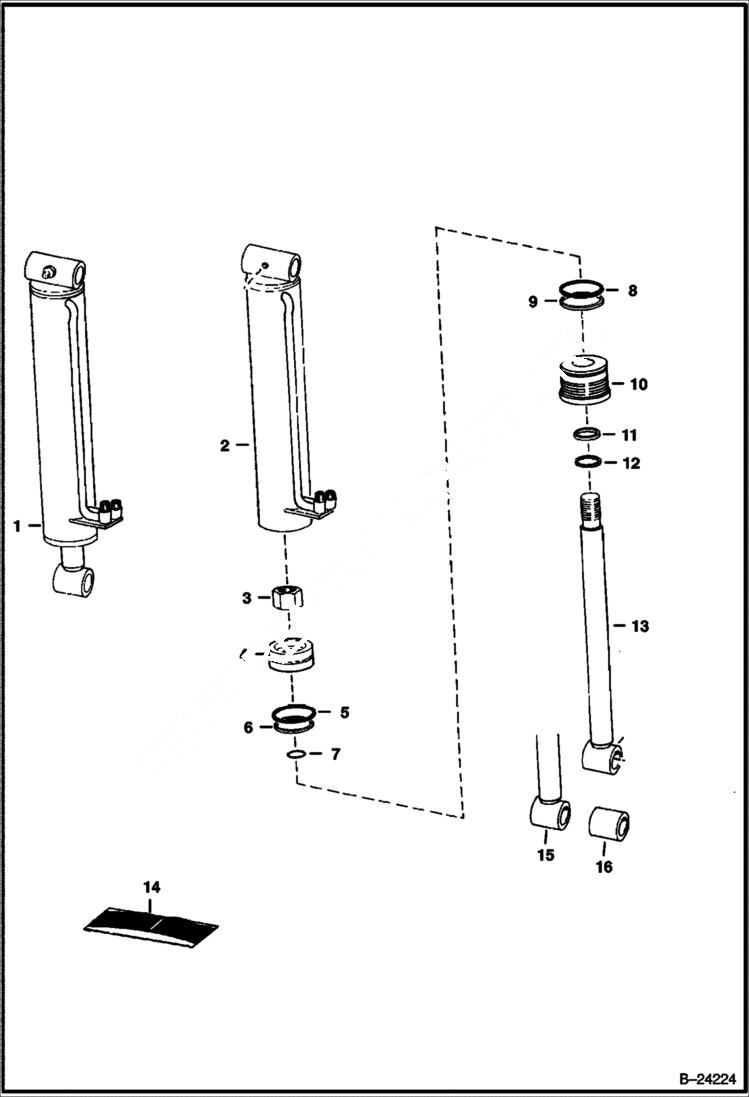

Запчасти Bobcat 600s TILT CYLINDER (W/Welded On Tube) HYDRAULIC SYSTEM

1

CYLINDER NLA - tilt - Order 6593398

2

6592040

CASE

3

6810539

NUT Was 86D000018B - A

4

6558778

PISTON

5

SEAL NSS

6

O-RING NSS

7

O-RING NSS

8

O-RING NSS

9

WASHER NSS - back-up

10

6558774

HEAD

11

SEAL NSS - rod

12

SEAL NSS - wiper

13

ROD NLA - cylinder - W/O Bushing - Order Ref. 16 - WAS 6559586 - A

14

6529691

SEAL KIT Ref. 5-9, 11 & 12 - Was 6558847 - A

15

6589665

BUSHING Use W/Ref. 16

16

6589783

ROD W/Bushing
