Запчасти Bobcat 600s AUXILIARY HYDRAULICS (S/N 13001 & Above) HYDRAULIC SYSTEM

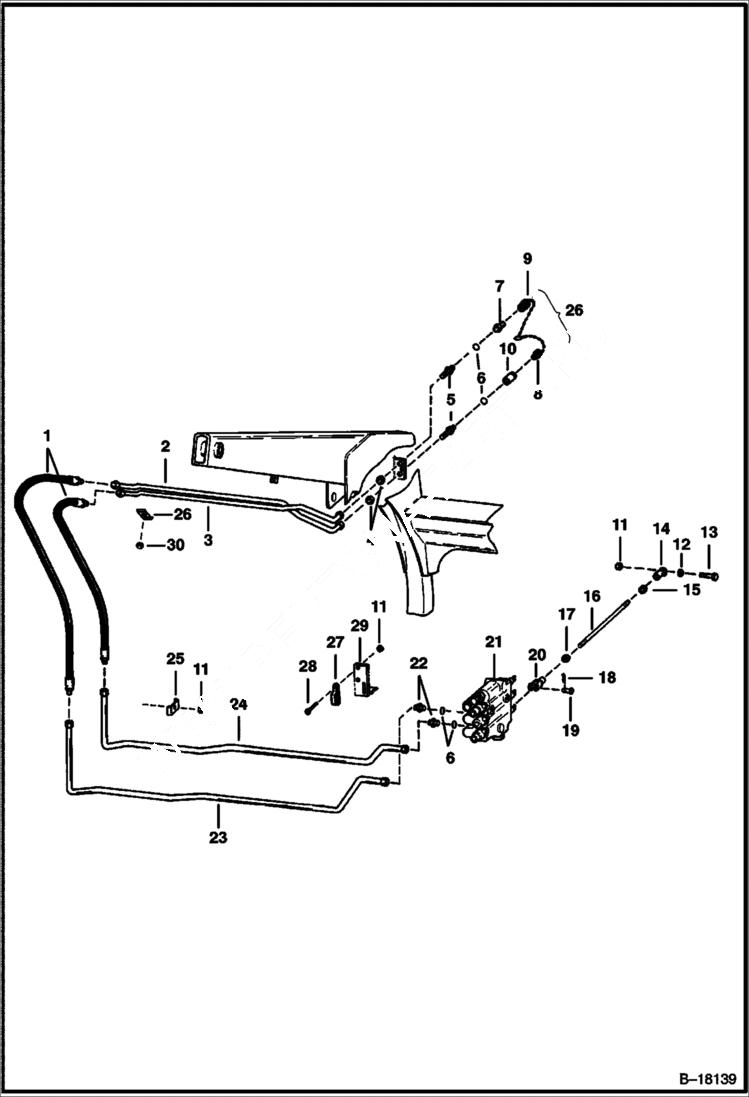

Схема запчастей Bobcat 600s - AUXILIARY HYDRAULICS (S/N 13001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6541094

HOSE

2

6558414

TUBE

3

6558415

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR

6

79K10

O RING 10

7

6598757

COUPLER, POPPET MALE straight

8

6515167

PLUG Steel

9

6515168

CAP Steel

10

6598758

COUPLER, POPPET FEMALE straight

10

48K16

O RING 10

11

85D6

NUT, 5

12

6564535

SPACER

13

17C620

BOLT

14

6512955

SWIVEL L.H. thread

15

13D6

NUT

16

6557090

ROD

17

8D6

NUT 5

18

6513495

COTTER PIN

19

PIN NLA - Was 6564654 - A

20

6564655

CLEVIS

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18342

22

15K7

FITTING W/Ref. 6

23

6569592

TUBE

24

6569593

TUBE

25

6502203

CLAMP

26

6513709

CAP PLUG assy. - Rubber

27

31H38

CLAMP Was 31H000027B - B

28

17C612

BOLT 5

29

6568667

BRACKET

30

59D6

NUT

Выбрано товаров: 31
